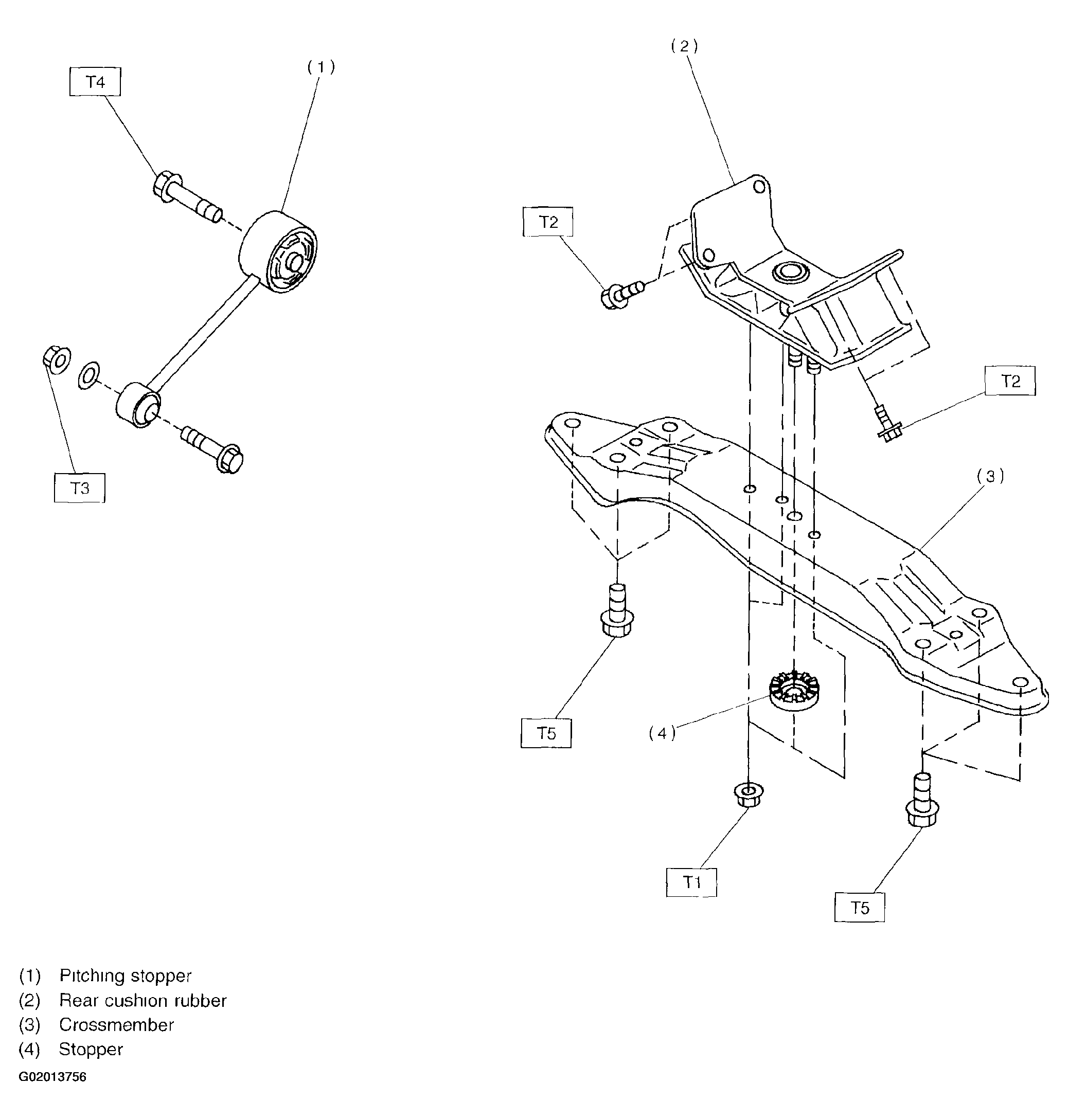

At Model
Tightening torque: N.m (kg-m, ft-lb)
- T1:
34+/-5 (3.5+/-0.5, 25.3+/-3.6)
- T2:
38+/-15 (3.9+/-1.5, 28+/-11)
- T3:
49+/-5 (5.0+/-0.5, 36.2+/-3.6)
- T4:
57+/-10 (5.8+/-1.0, 42+/-7)
- T5:
69+/-15 (7.0+/-1.5, 51+/-11)
