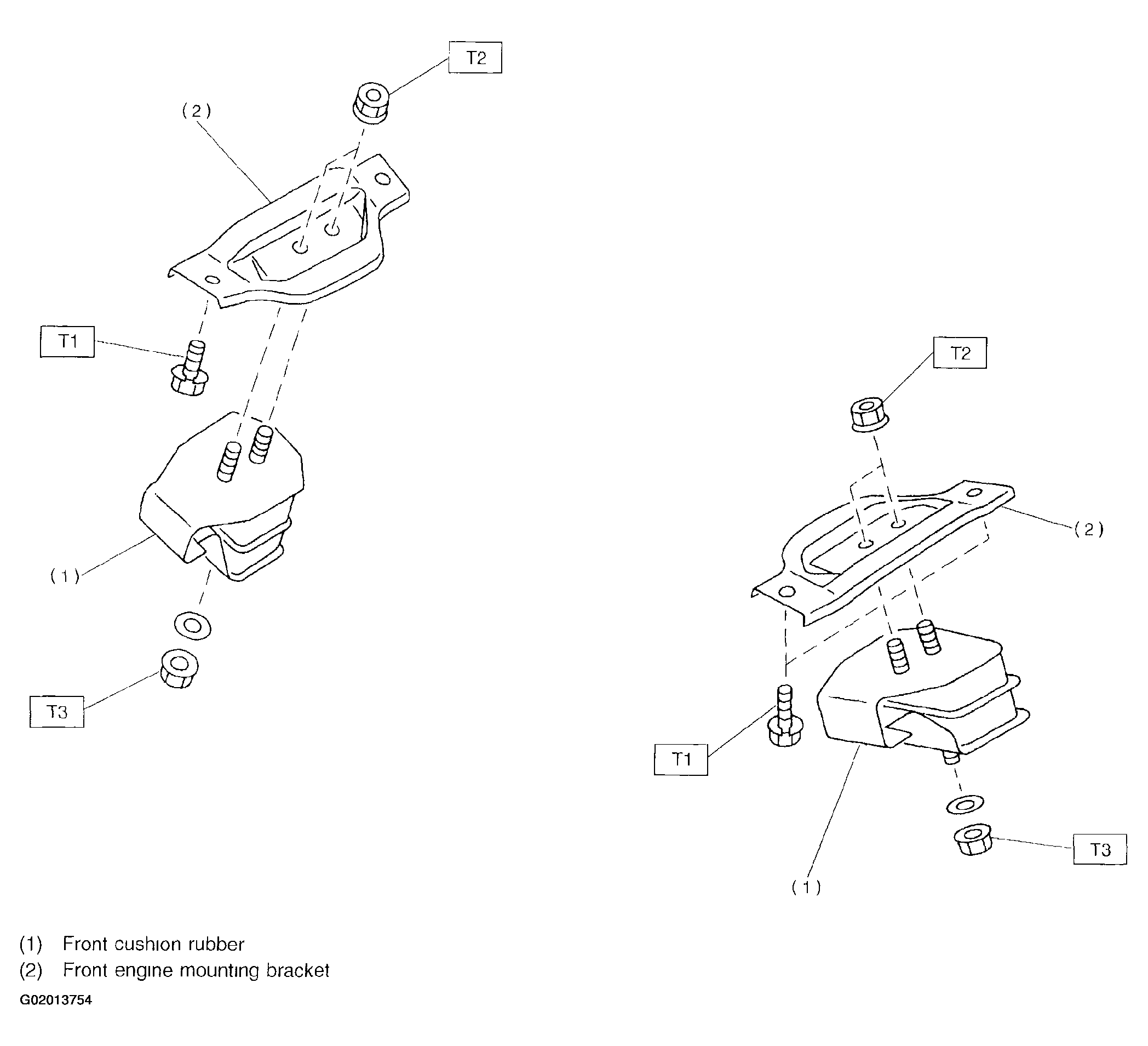

Engine Mounting
Tightening torque: N.m (kg-m, ft-lb)
- T1:
34+/-5 (3.5+/-0.5, 25.3+/-3.6)
- T2:
41+/-10 (4.2+/-1.0, 30+/-7)
- T3:
83+/-15 (8.5+/-1.5, 61+/-11)
