Reduction Driven Gear: Disassembly

Remove snap ring from reduction driven gear.

Fig 1: Removing Snap Ring From Reduction Driven Gear
Using ST, remove ball bearing from reduction driven gear.
ST 498077600 REMOVER

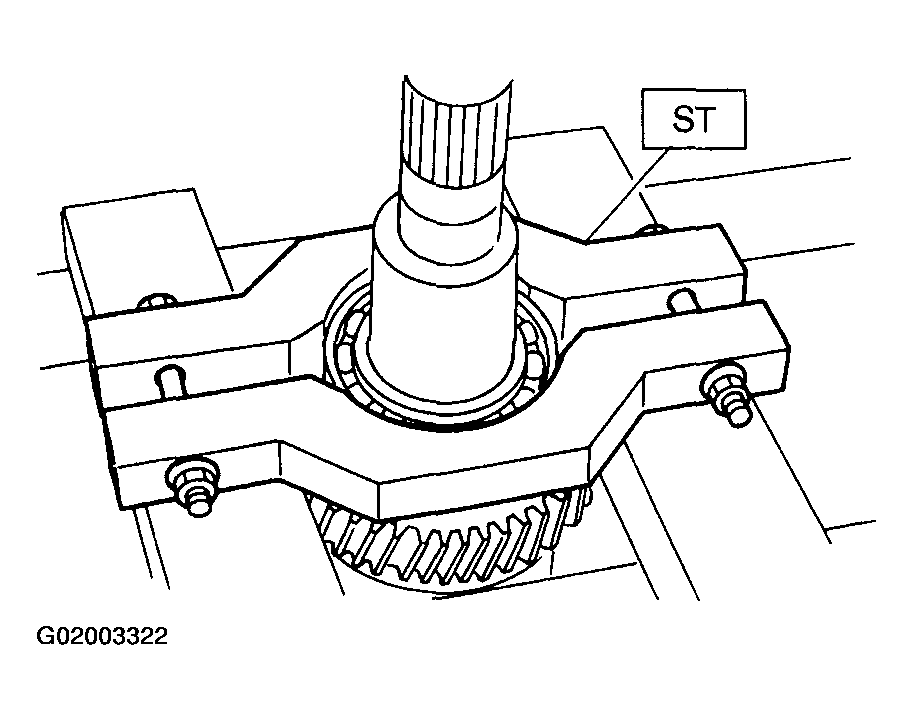

Fig 2: Removing Ball Bearing From Reduction Driven Gear
