Reduction Drive Gear Assembly: Disassembly

Take out the seal rings.
CAUTION: Be careful not to damage the seal rings.

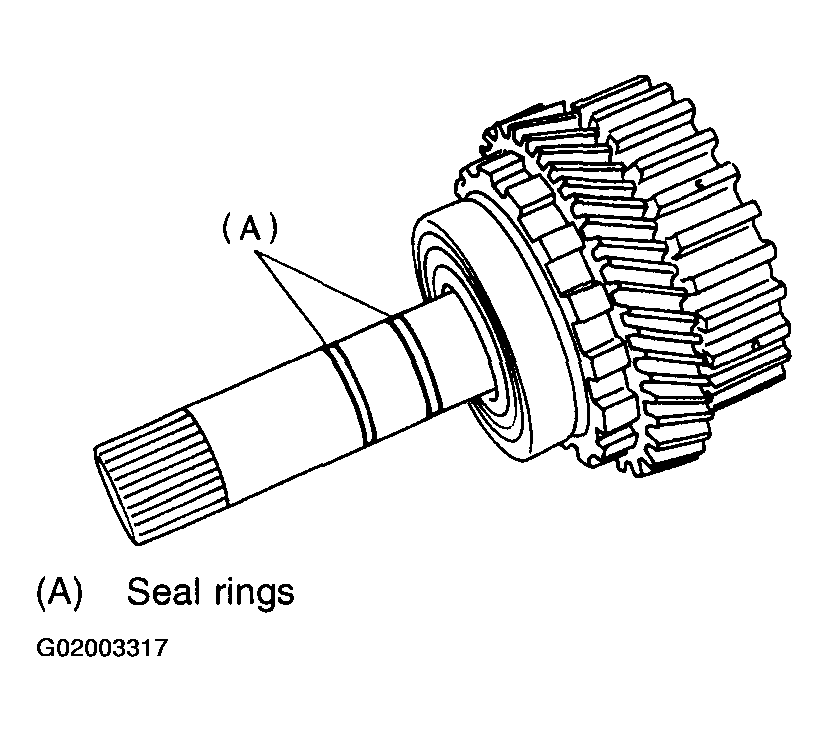

Fig 1: Identifying Seal Rings
Using ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using (ST)

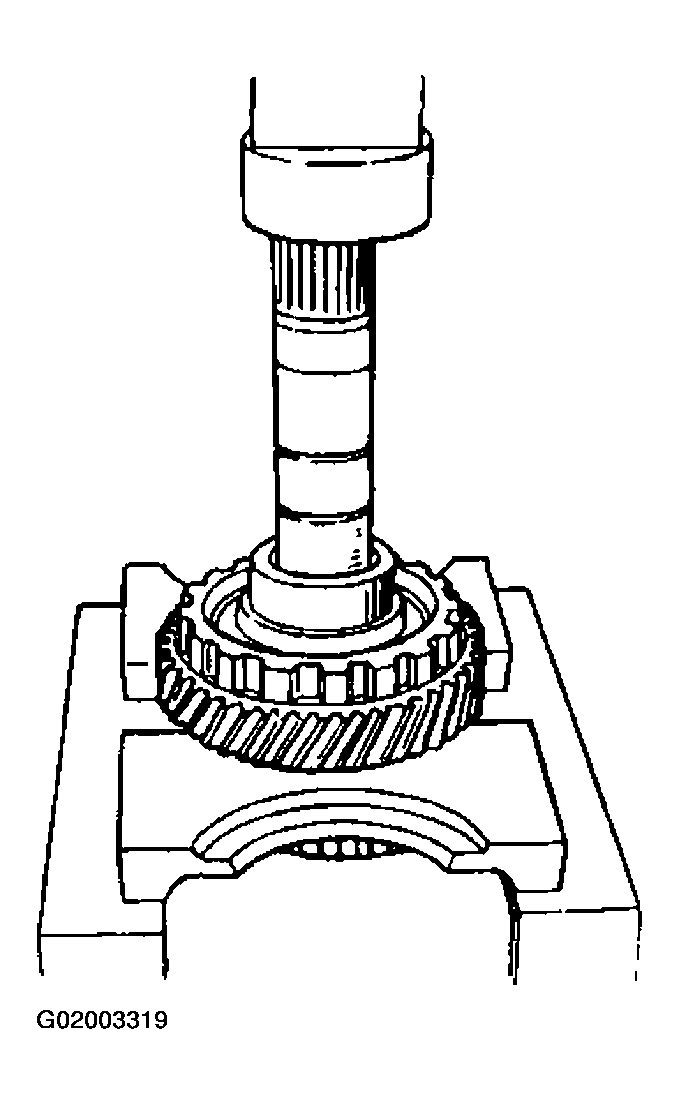

Using a press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear
