Separation Of Each Section

  1. Separation of torque converter clutch case and transmission case sections
    CAUTION:
    • Be careful not to damage the oil seal and bushing inside the torque converter clutch case by the oil pump cover.
    • Be careful not to lose the rubber seal.
    NOTE: Separate these cases while tapping lightly on the housing.

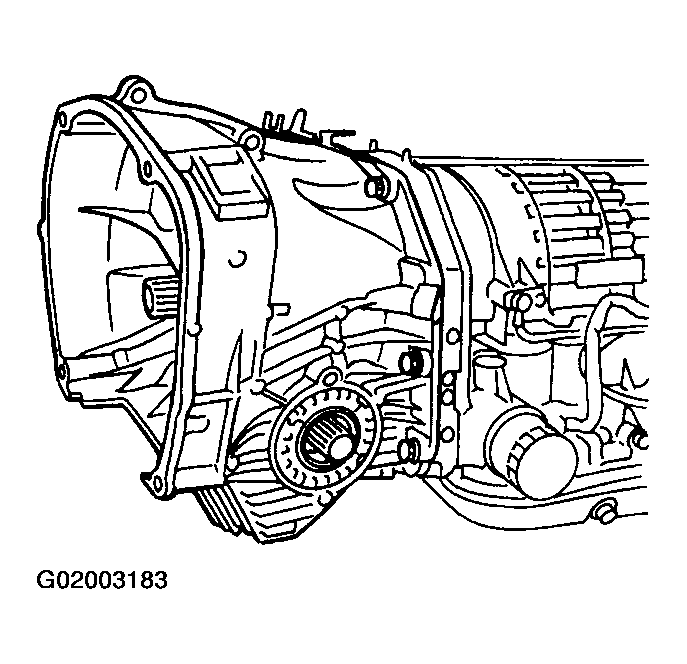

    Fig 1: Separating 2 Front Sections Of Transmission Case
    G02003183
  2. Separation of transmission case and extension sections
    1. Remove vehicle speed sensor 1 (rear).

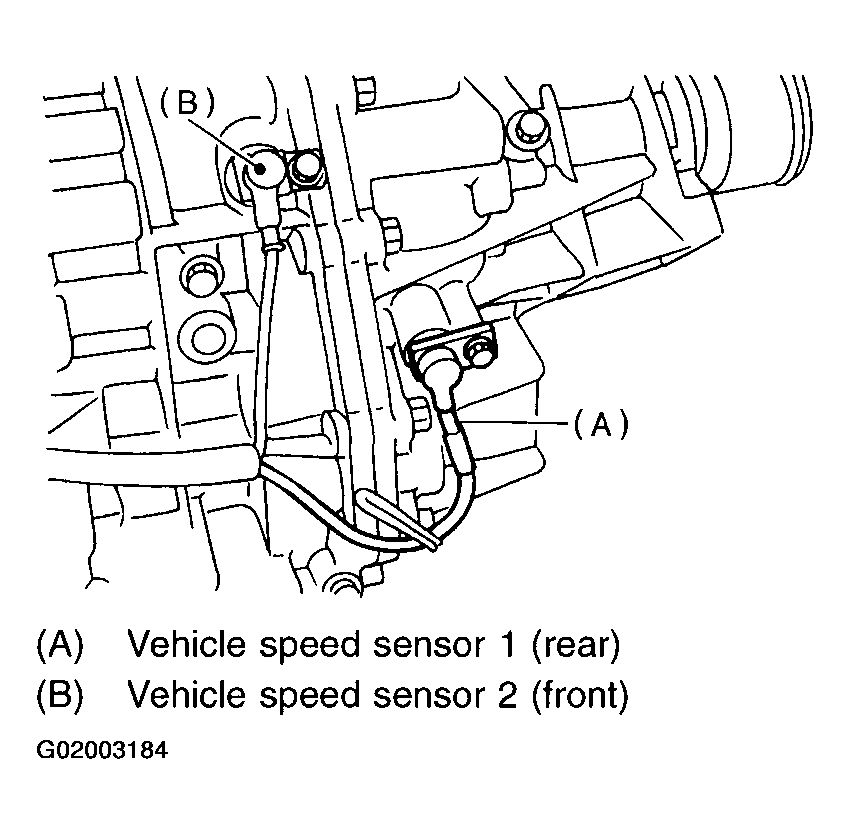

      Fig 2: Removing Vehicle Speed Sensor 1 (Rear)
      G02003184
    2. Separation of transmission case and extension case sections

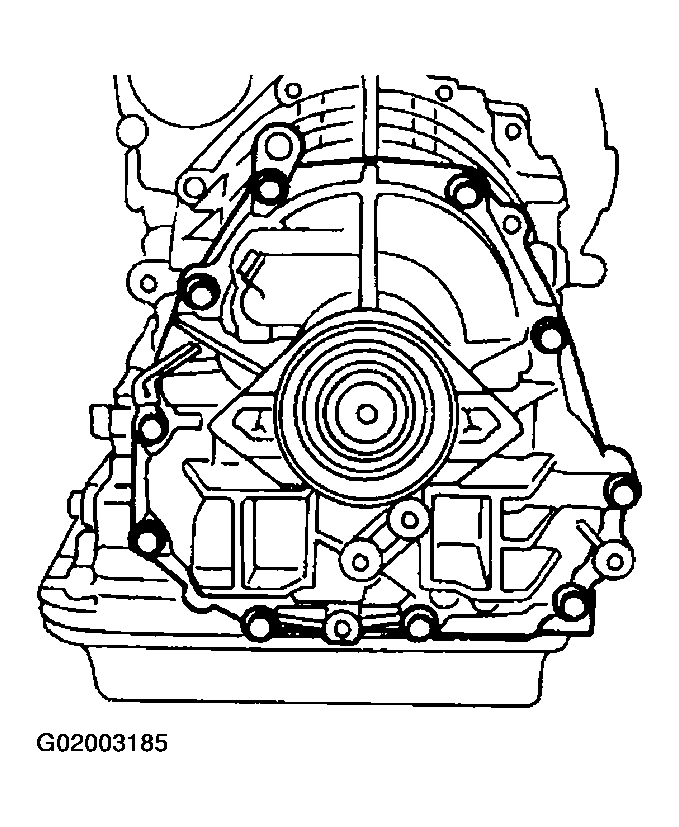

      Fig 3: Identifying Transmission Case To Extension Case Section Fasteners
      G02003185
