External Parts

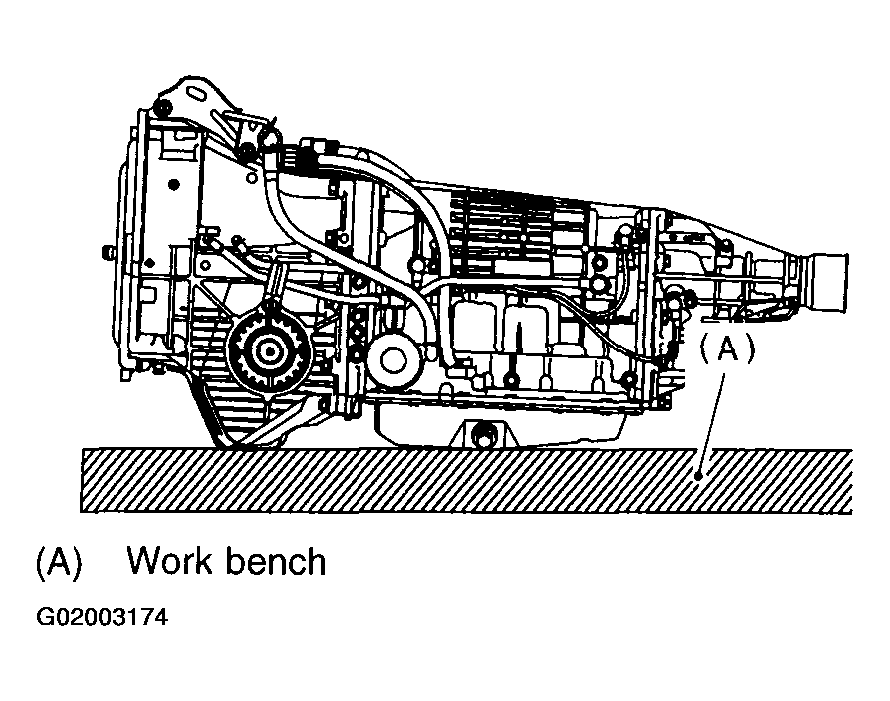

- Place the transmission unit on a work bench, with the oil pan facing down.
CAUTION:
Be careful not to bend or damage external parts.

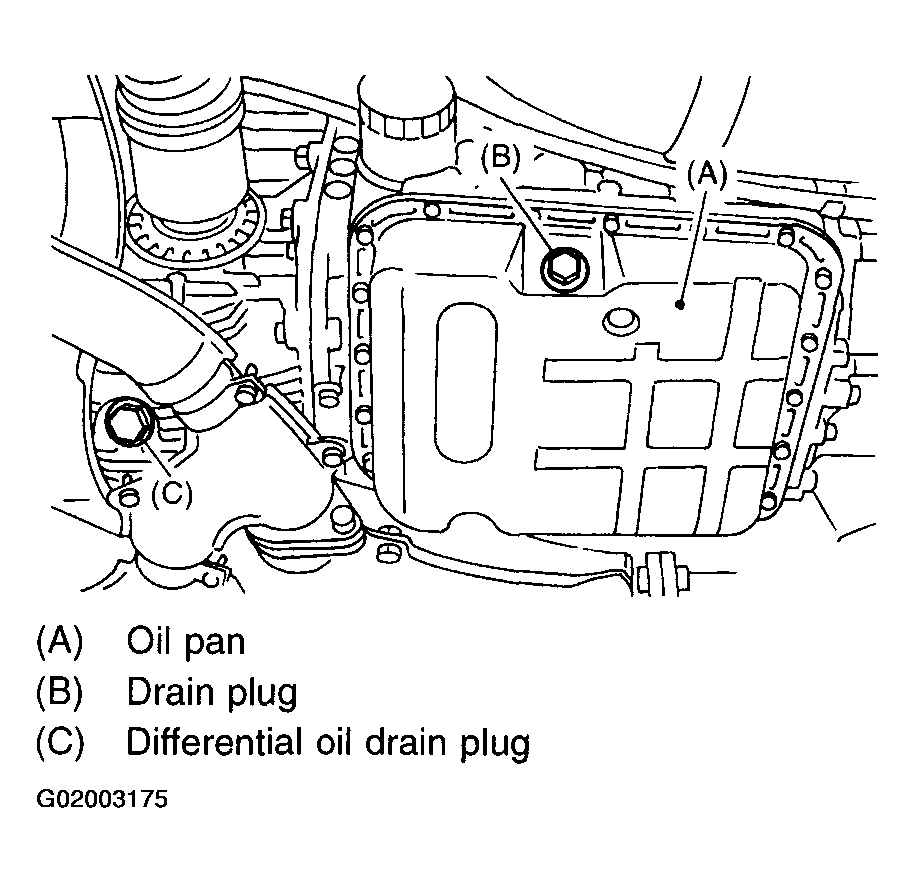

- Remove the drain plug, and drain differential oil. Tighten the plug temporarily after draining.
- Remove the drain plug, and drain automatic transmission fluid (ATF). Tighten the plug temporarily after draining.

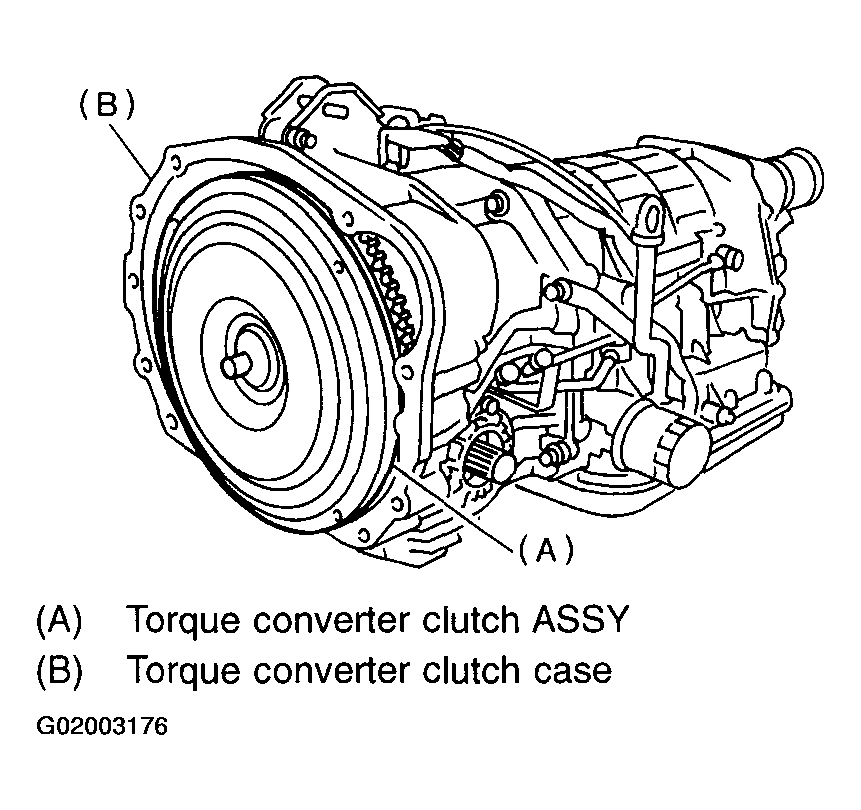

- Extract the torque converter clutch assembly.
NOTE:
- Extract the torque converter clutch horizontally. Be careful not to scratch the bushing inside the oil pump shaft.
- Note that oil pump shaft also comes out.

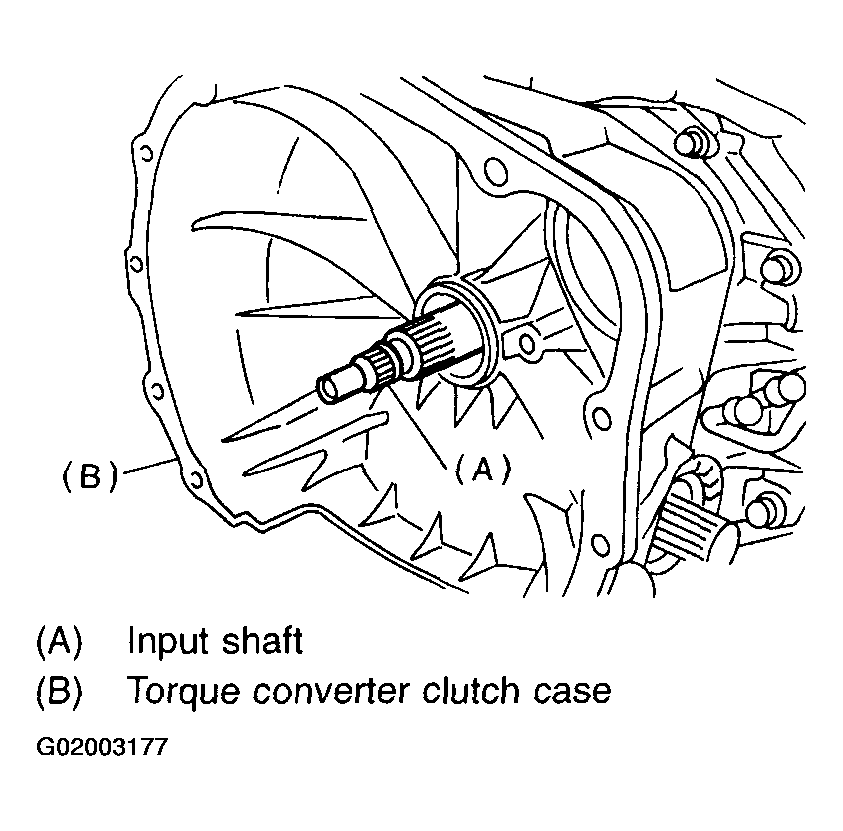

- Remove the input shaft.

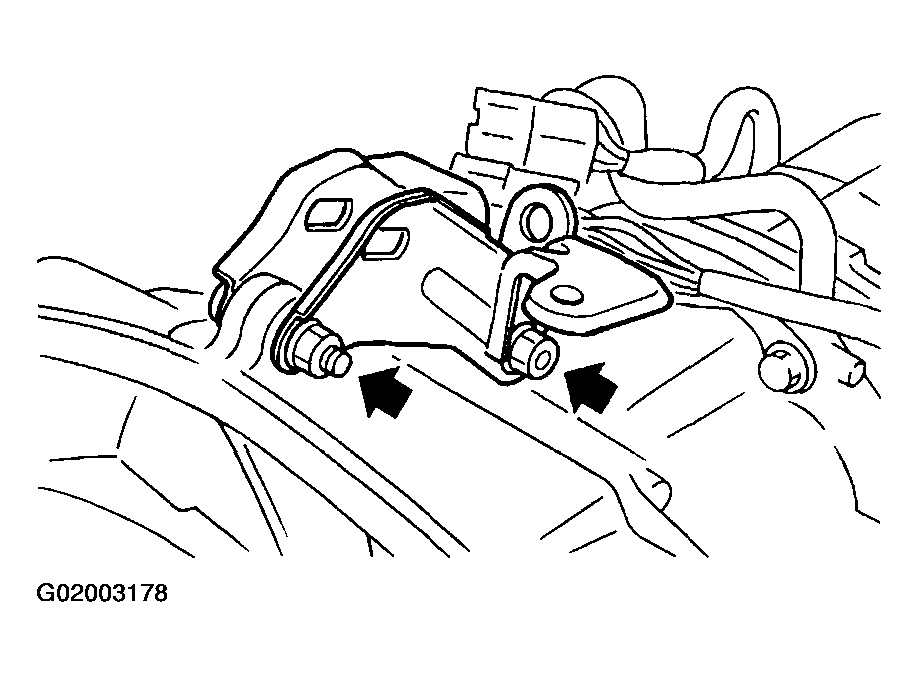

- Remove the pitching stopper bracket.
- Remove harnesses from stay.

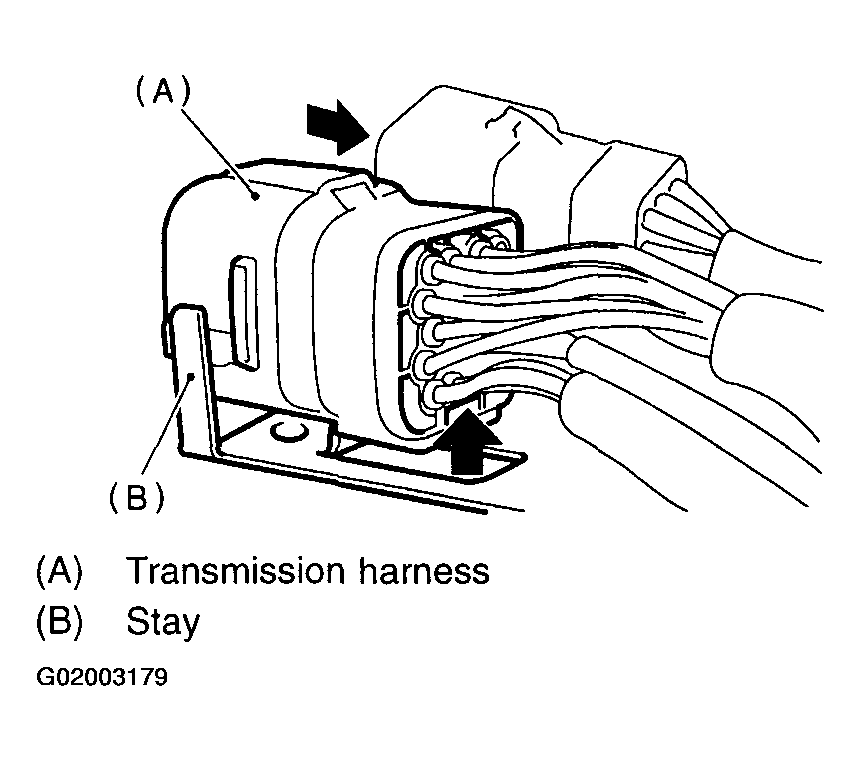

- Disconnect transmission harness connector from stay.
NOTE:
Lift-up lever behind connector and disconnect it from stay.
- Disconnect inhibitor switch connector stay.

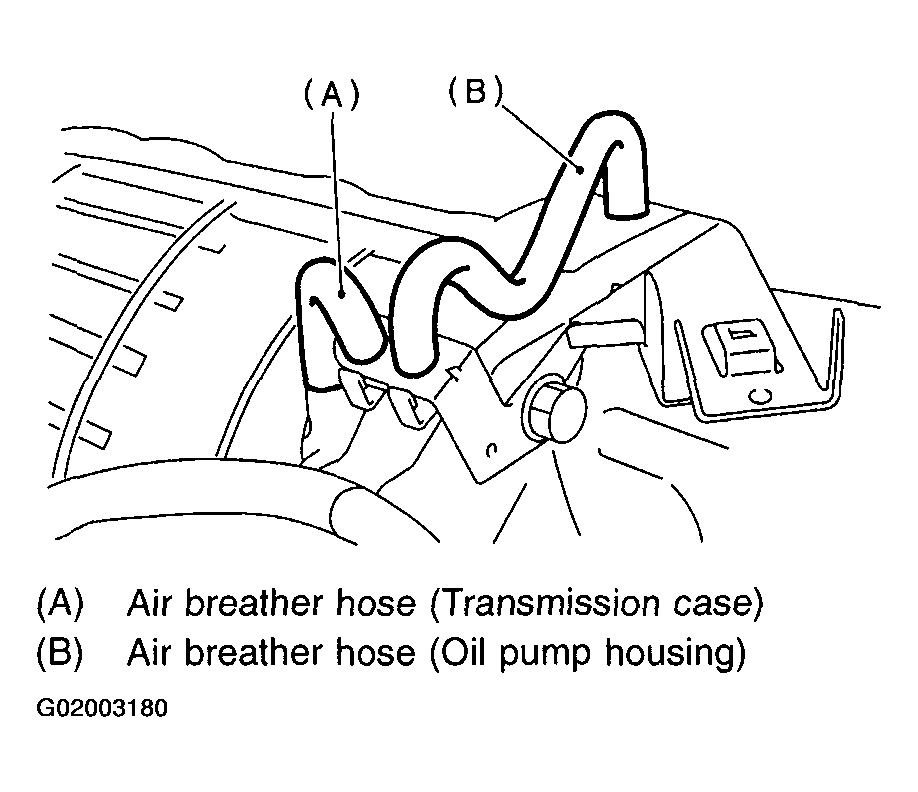

- Disconnect the air breather hose.

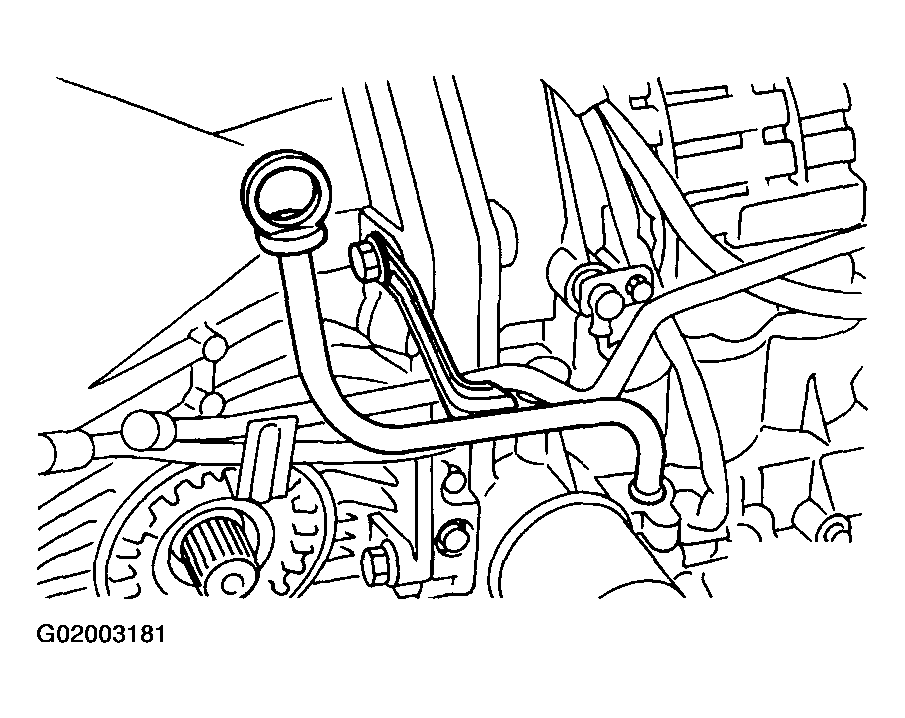

- Remove the oil charger pipe, and remove the O-ring from the flange face. Attach the O-ring to the pipe.

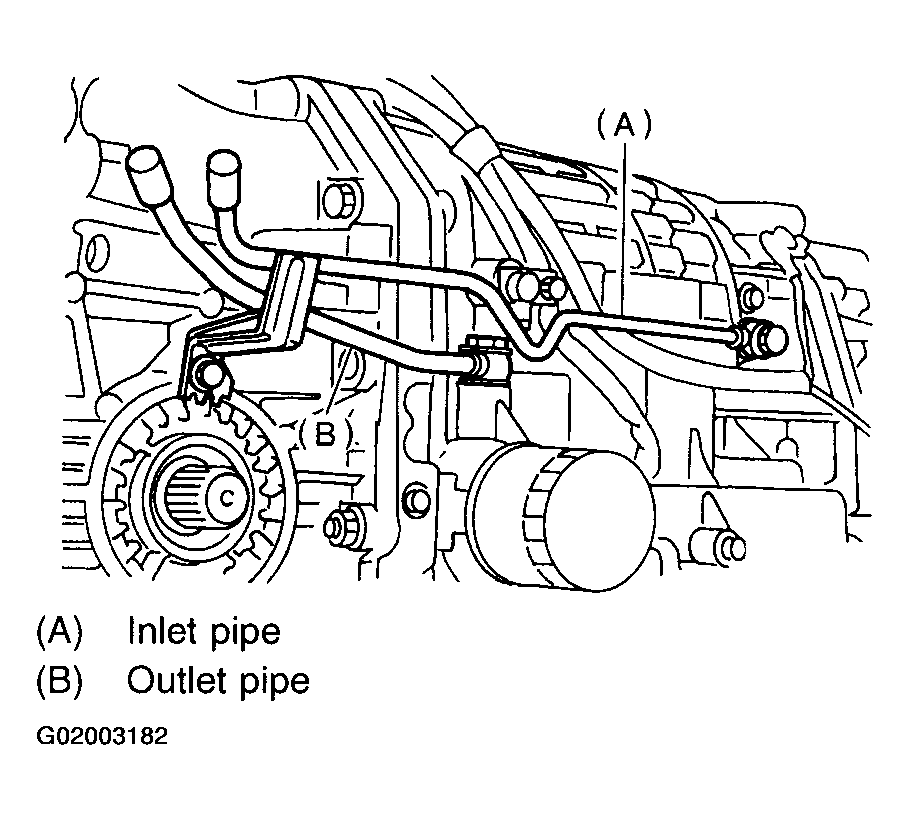

- Remove the oil cooler inlet and outlet pipes.
CAUTION:
When removing outlet pipes, be careful not to lose balls and springs used with retaining screws.
