Control Valve And Oil Pan

Install and route the transmission harness.
CAUTION: Be careful not to damage the harness.

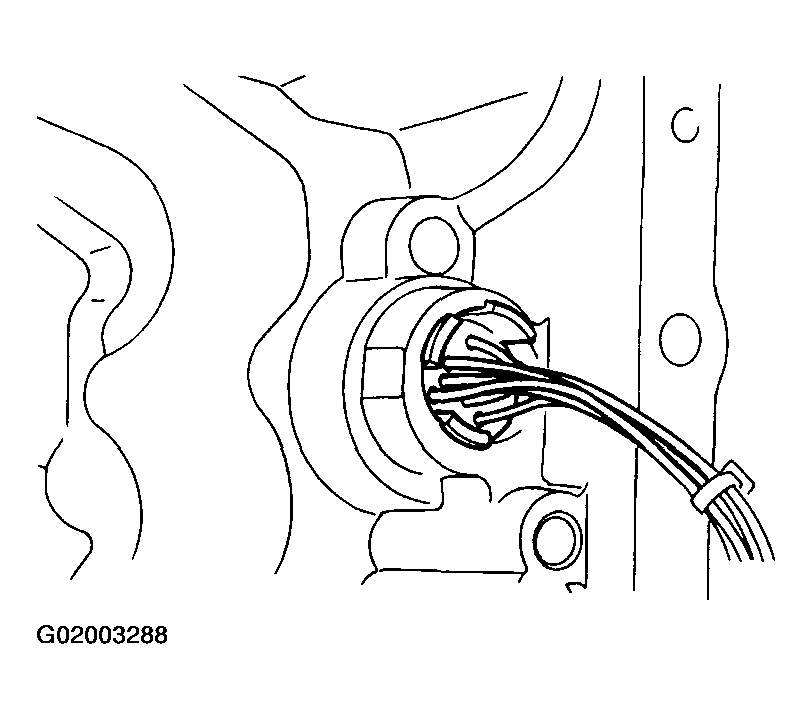

Fig 1: Installing Transmission Harness
Install the control valve assembly.
1. Set the select lever in range "N".
2. Install the control valve by engaging the manual valve and manual level, then tighten the seventeen bolts.
CAUTION: Tighten the control valve mounting bolts evenly.

Tightening torque: 8+/-1 N.m (0.8+/-0.1 kg-m, 5.8+/-0.7 ft-lb)

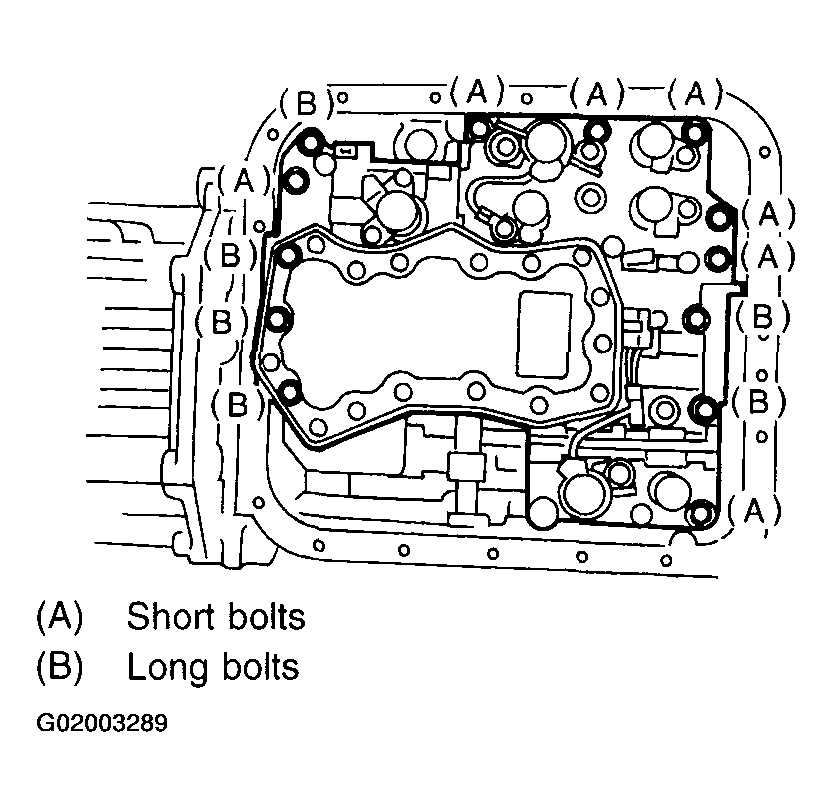

Fig 2: Installing Control Valve Assembly
Connect all connectors.

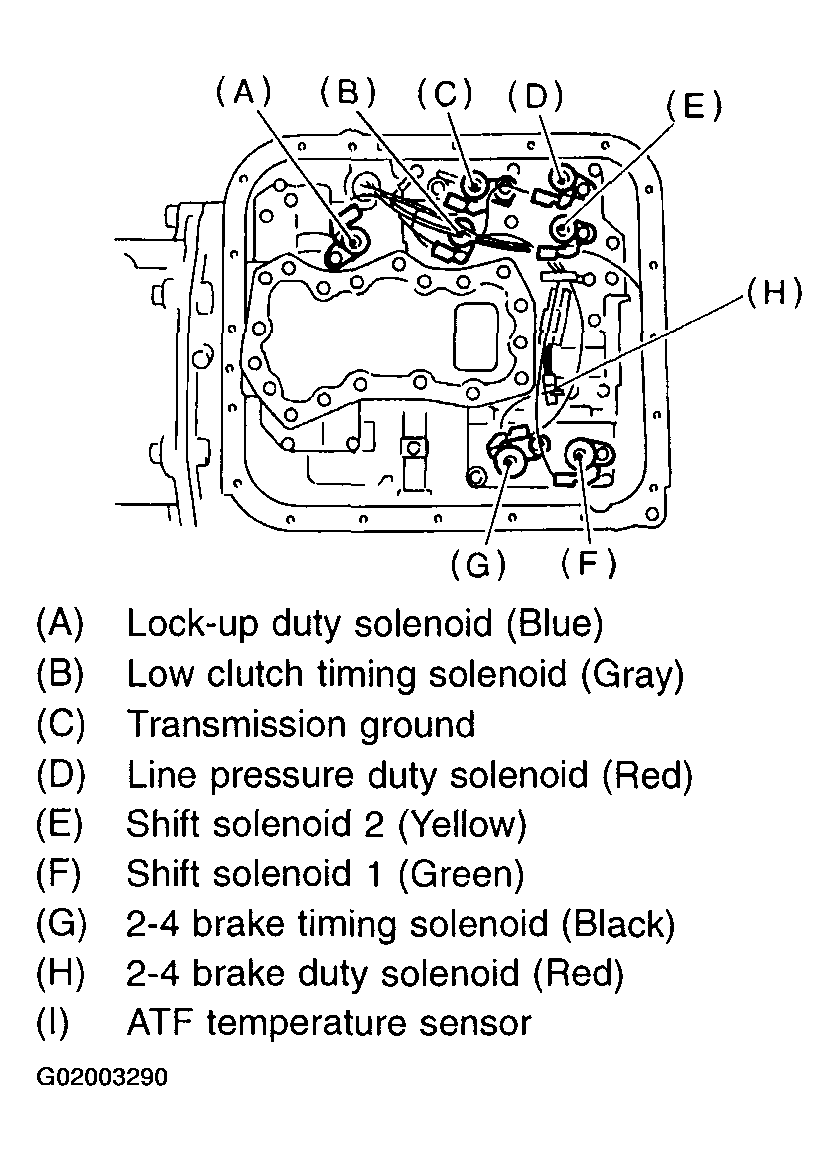

Fig 3: Identifying Harness Connectors
Install the oil pan.
1. Attach the magnet at the specified position.

  Fig 4: Placing Magnet In Oil Pan
2. Apply proper amount of liquid gasket to the entire oil pan mating surface (THREE BOND Part No. 1217B).

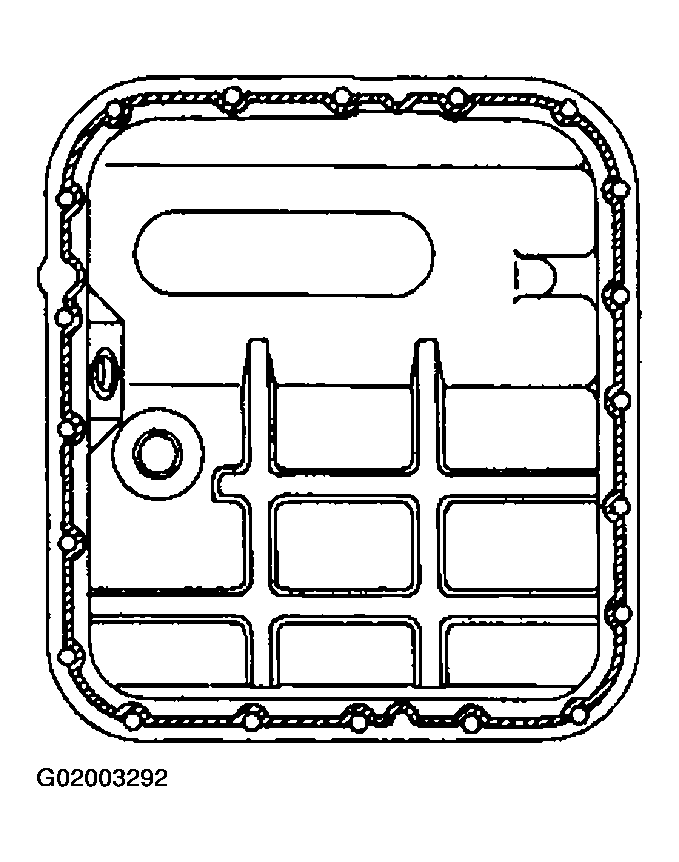

  Fig 5: Applying Liquid Gasket To Oil Pan Mating Surface
3. Install the oil pan to the transmission case assembly, and secure with the twenty bolts.
  NOTE: Tighten the bolts evenly.

  Tightening torque: 4.9+/-0.5 N.m (0.50+/-0.05 kg-m, 3.6+/-0.4 ft-lb)

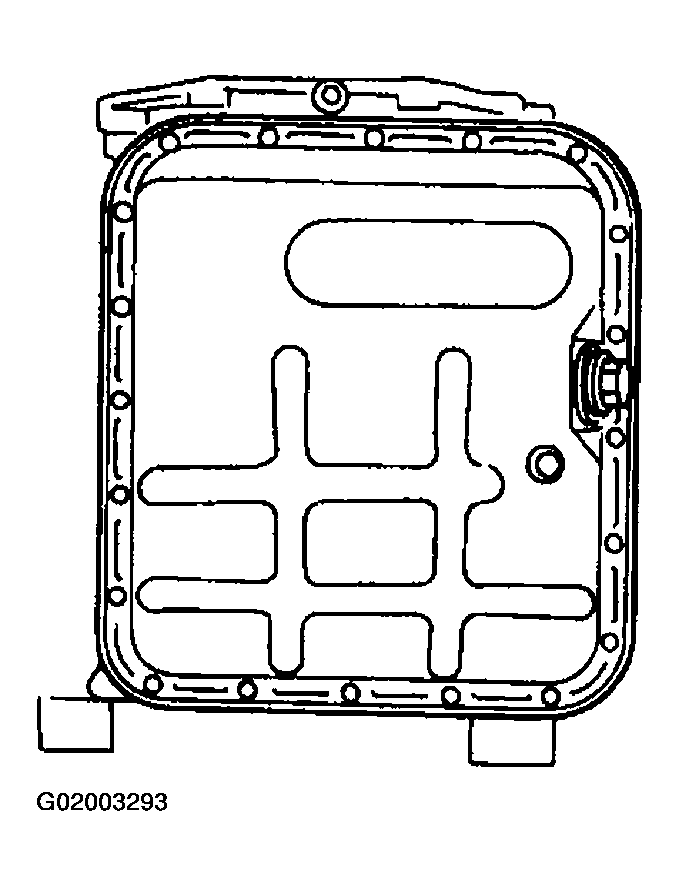

  Fig 6: Installing Oil Pan To Transmission Case
Install torque converter turbine speed sensor and vehicle speed sensor 2 (front).
Tightening torque: 7+/-1 N.m (0.7+/-0.1 kg-m, 5.1+/-0.7 ft-lb)

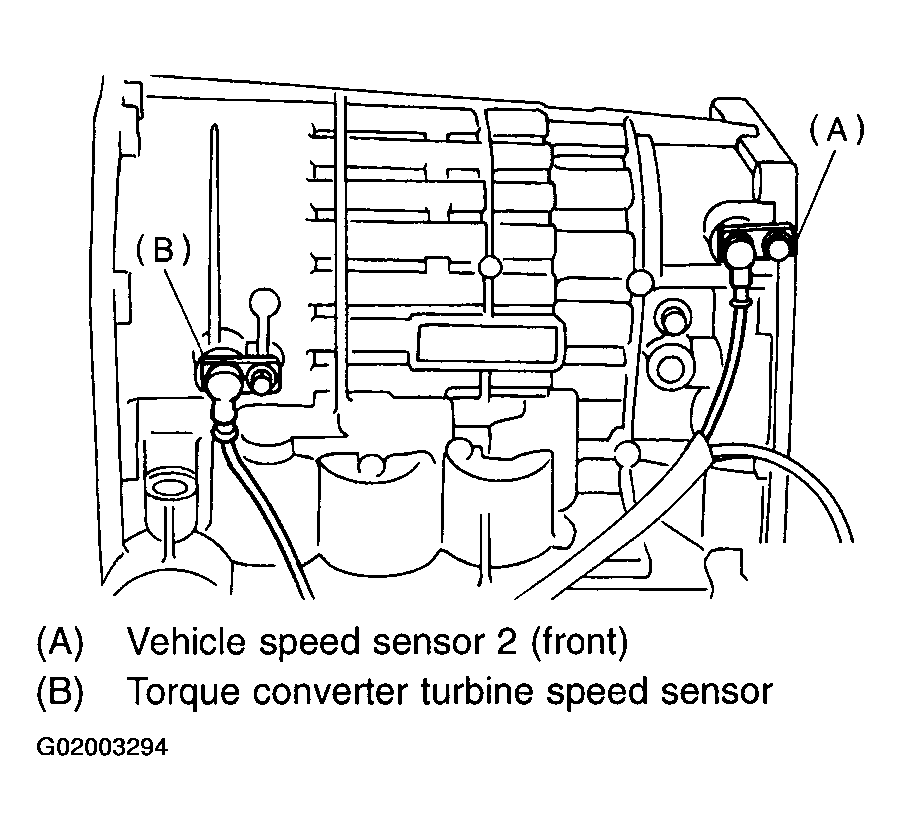

Fig 7: Installing Torque Converter Turbine Speed Sensor & Vehicle Speed Sensor 2 (Front)
