Home >> Subaru >> 2001 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnostics >> Diagnostics For On-Board Diagnostics Failed >> Control Module Power Supply And Ground Line >> Wiring Diagram:
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

Wiring Diagram:

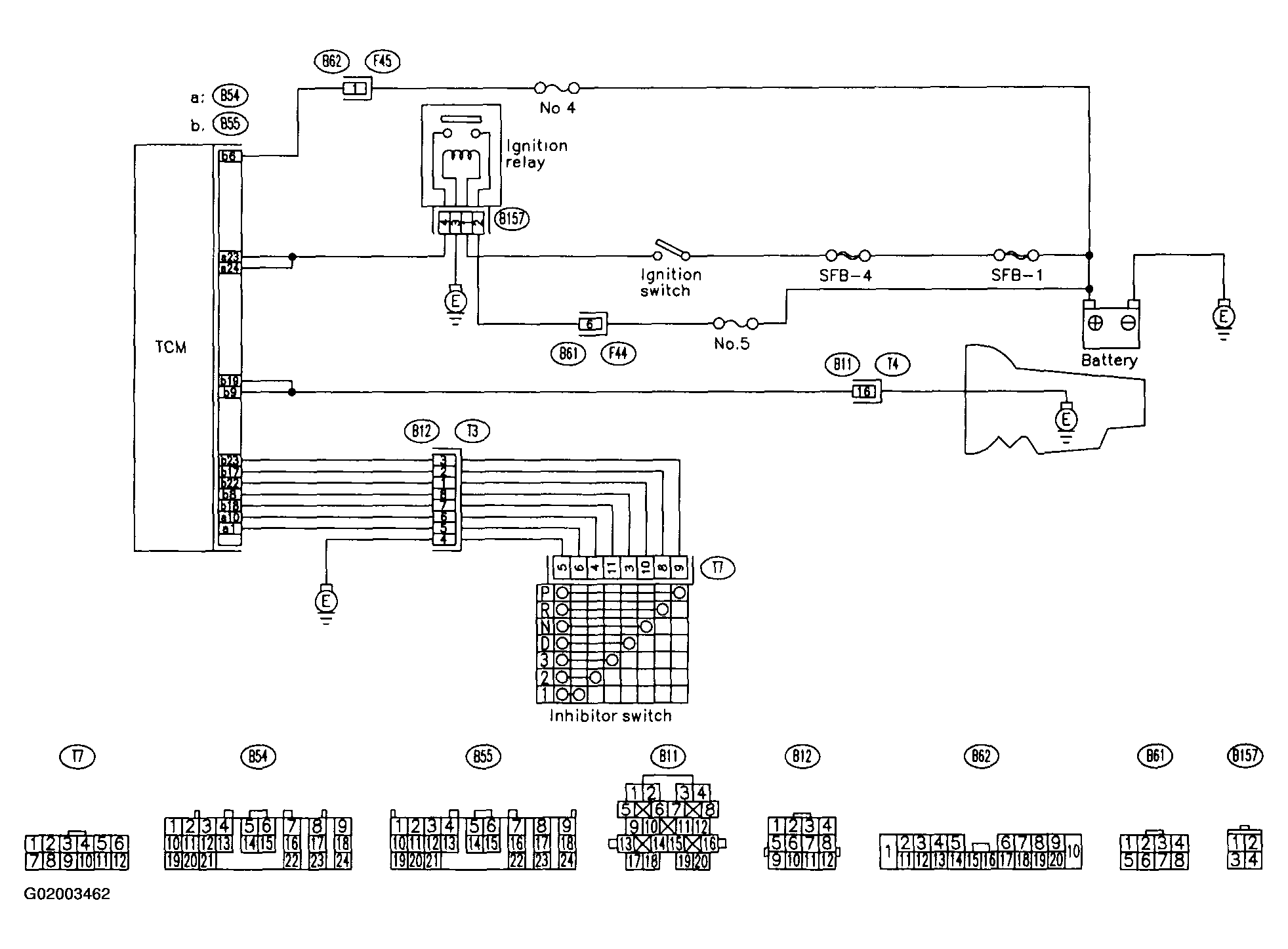

Fig 1: Control Module Power Supply & Ground Line Circuits
G02003462
