P & N Range

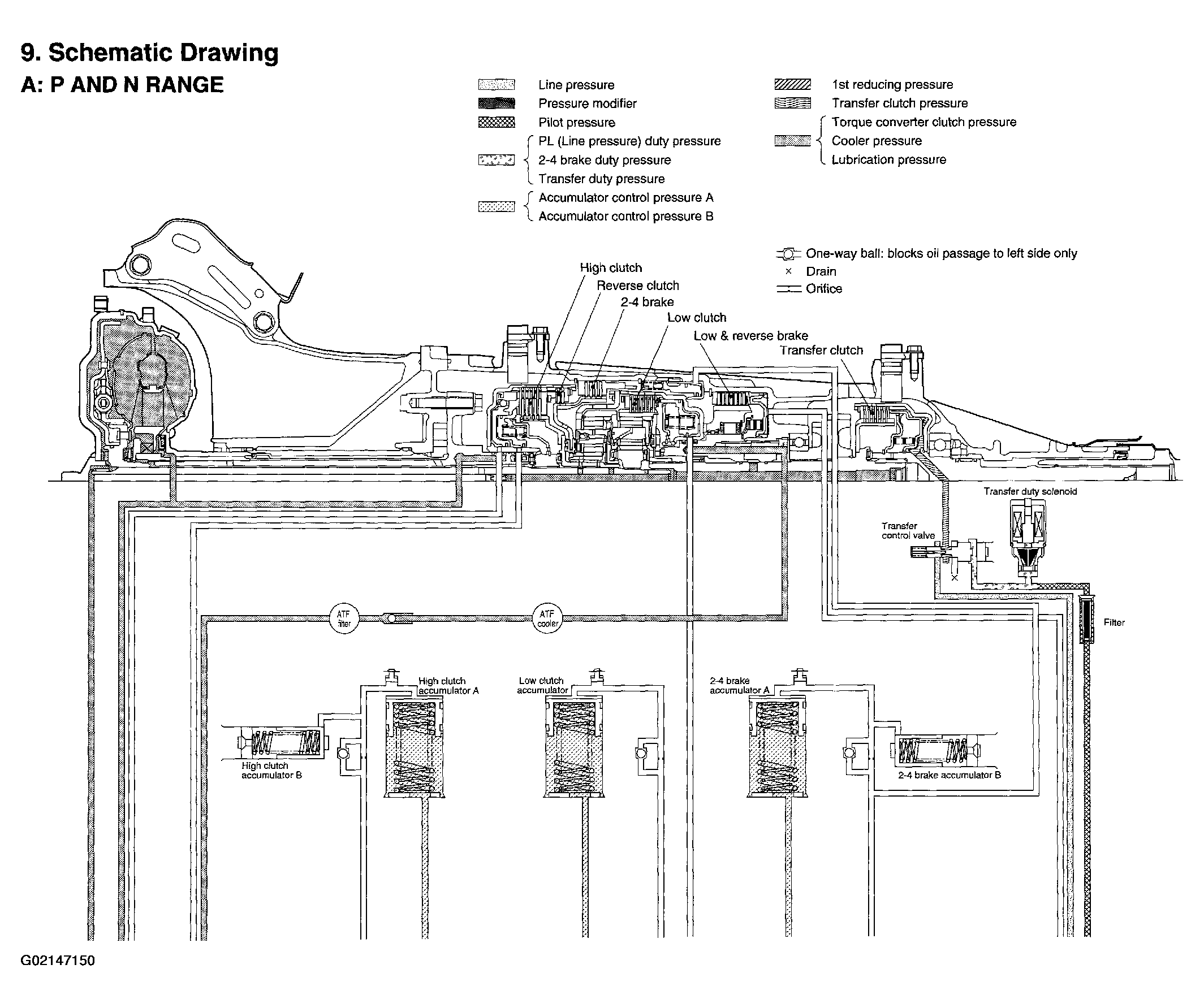

Fig 1: P & N Range - Schematic Drawing (1 Of 2)

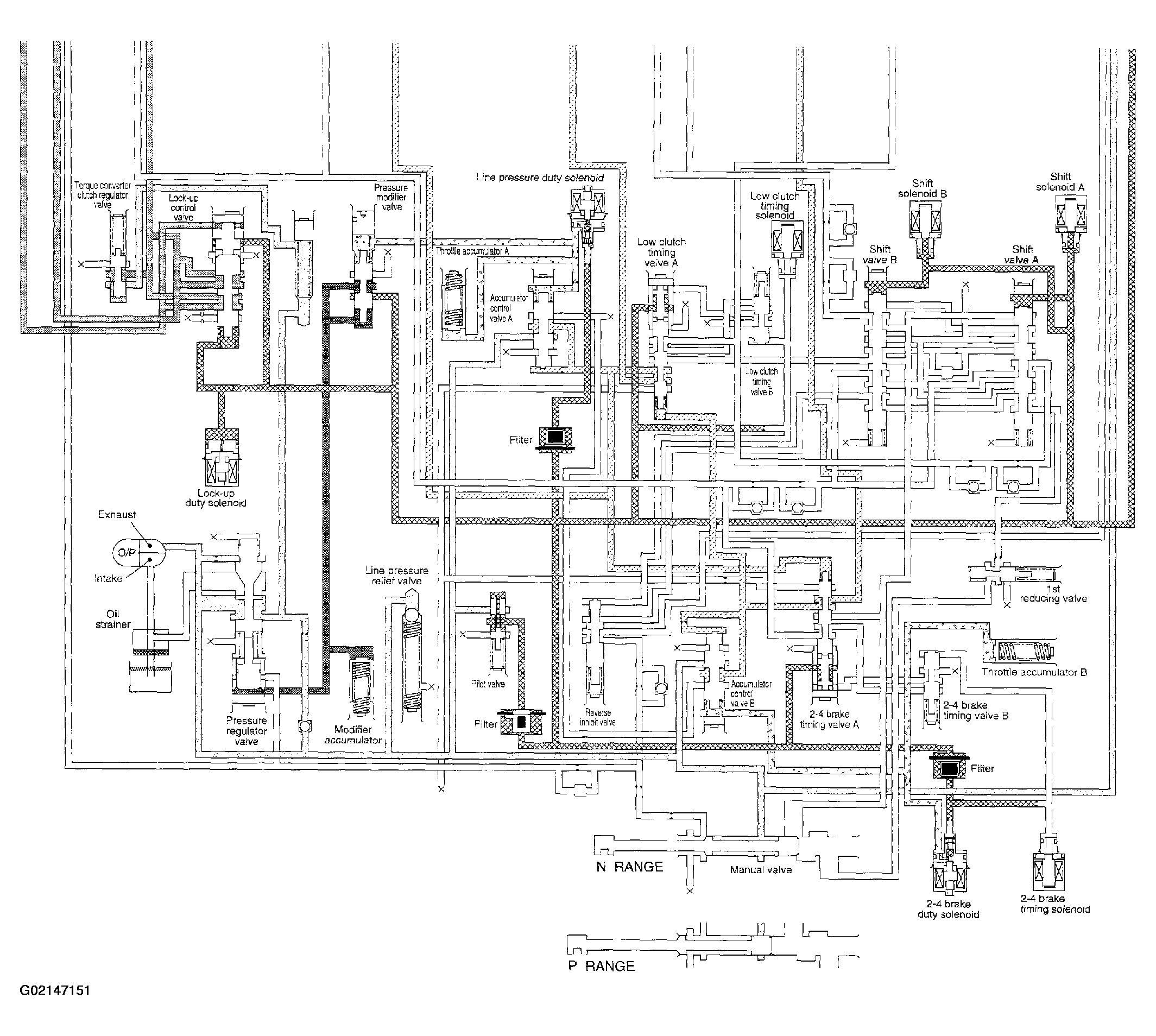

Fig 2: P & N Range - Schematic Drawing (2 Of 2)
