Power Train: Construction

The gear train consists of two sets of planetary gears, three sets of multi-plate clutches, two sets of multi-plate brakes and one set of one-way clutch.

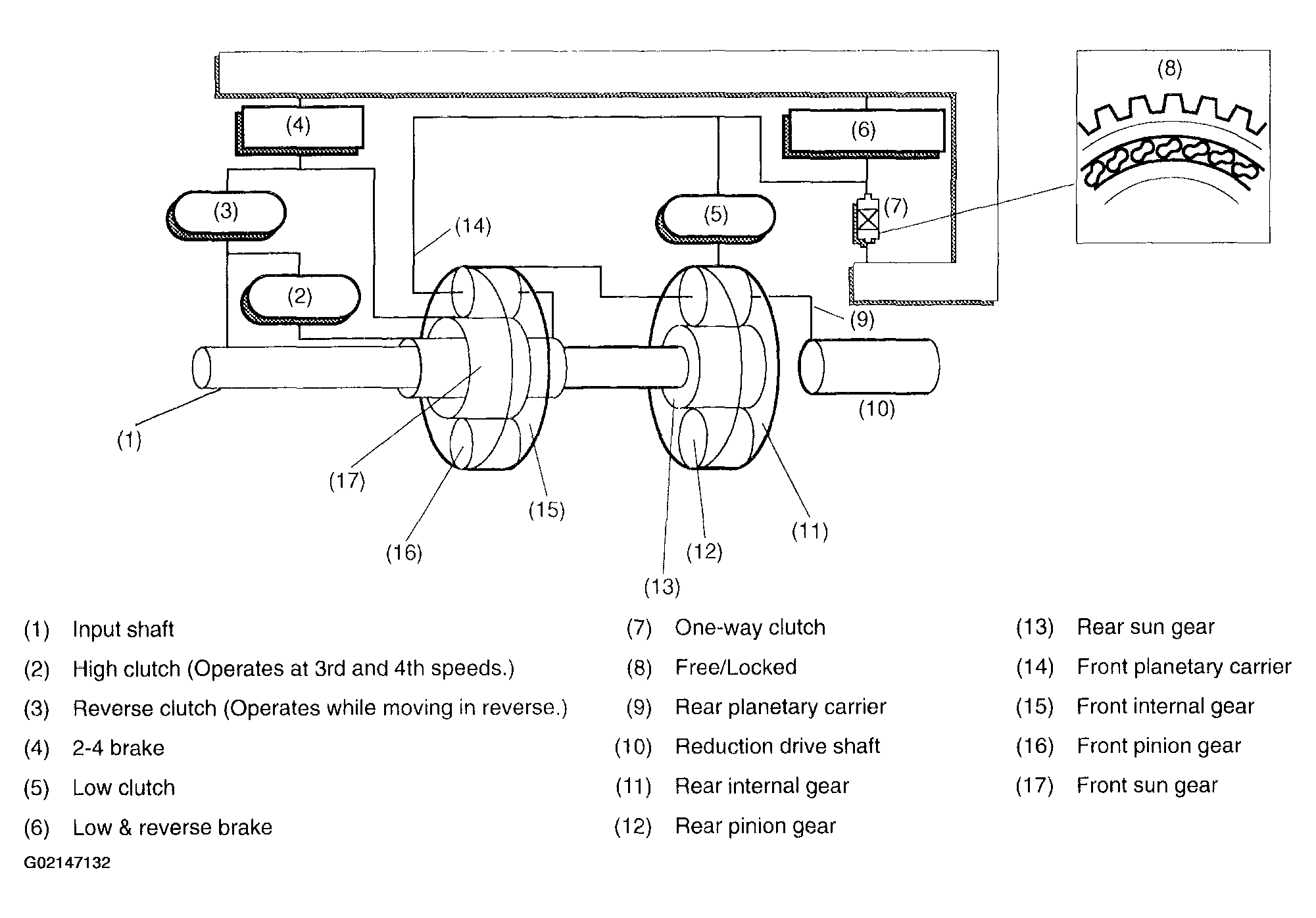

Fig 1: Identifying Power Train Components
G02147132
