Operation Of Indicator Light

On starting the engine, AT OIL TEMP indicator light illuminates as shown below.

If any trouble occurs, the light continues flashing until ignition switch is turned to ON position (engine turned off).

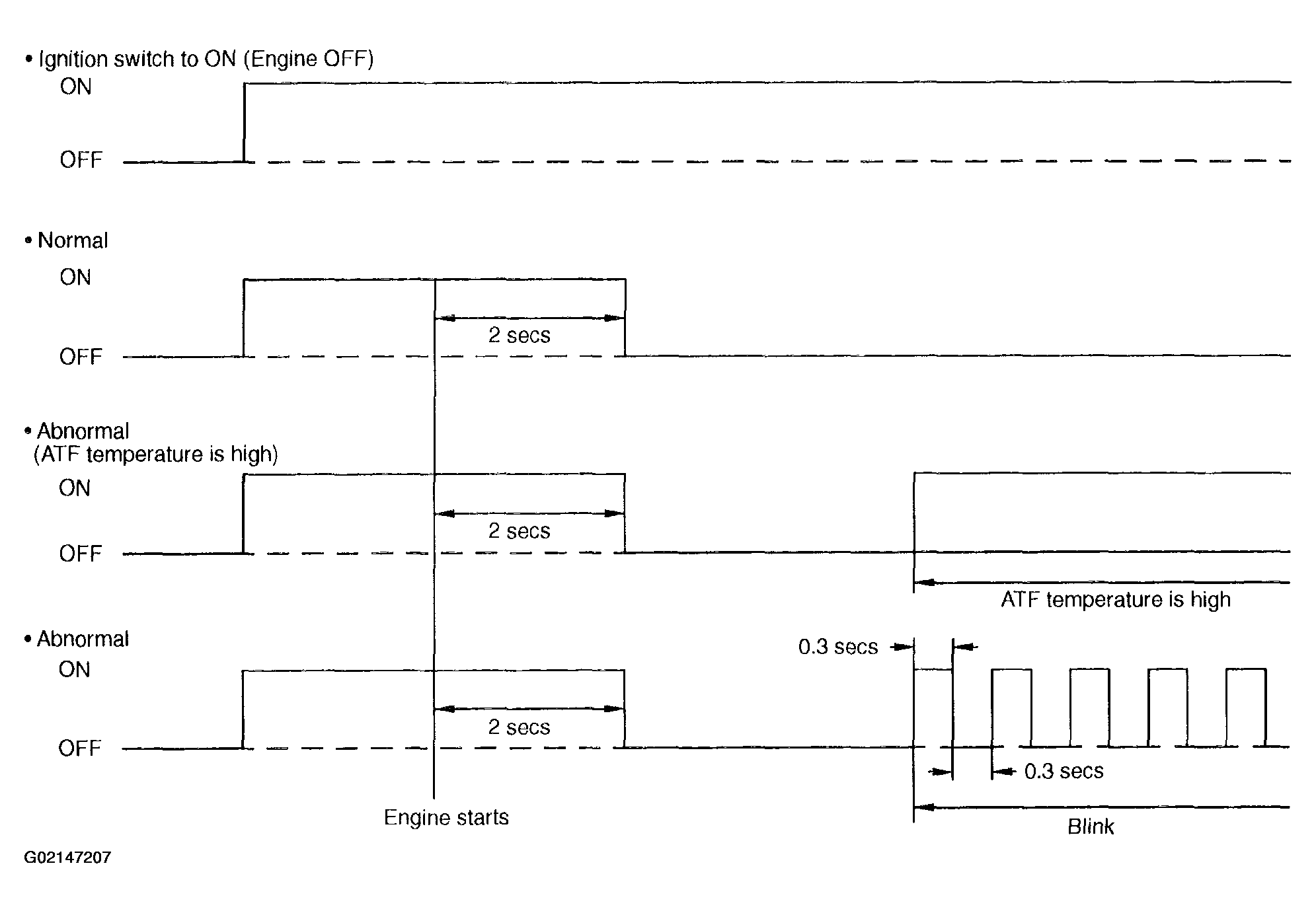

Fig 1: Operation Of Indicator Light (At Oil Temp Indicator)
G02147207
