Vehicle Speed Sensor 1 (Rear)

The vehicle speed sensor 1 (output shaft rotation sensor) is mounted to the extension case (from the outside of the case). It detects the rear wheel speed based on the peripheral speed of the transfer clutch drum and sends sine wave signals (30 pulses per rotation) to TCM.

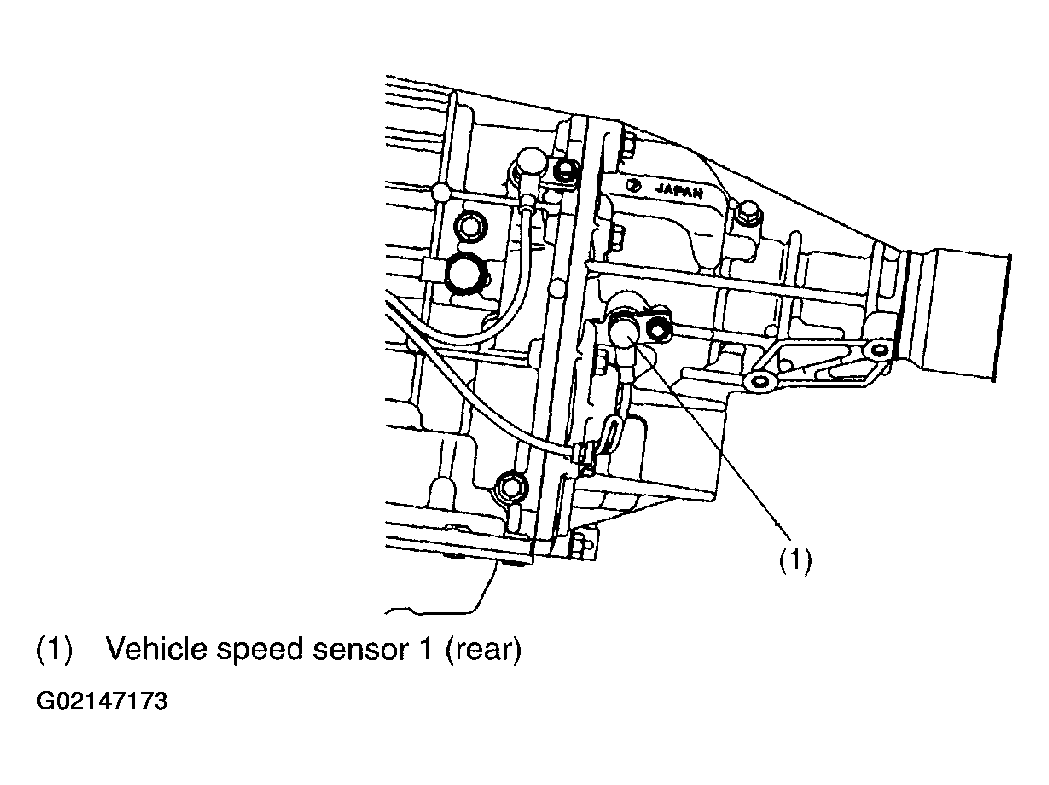

Fig 1: Identifying Vehicle Speed Sensor 1 (Rear)
