Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Inspection
Check connected and fixed condition of connector.
Check specifications of the mark with ABSCM & H/U.

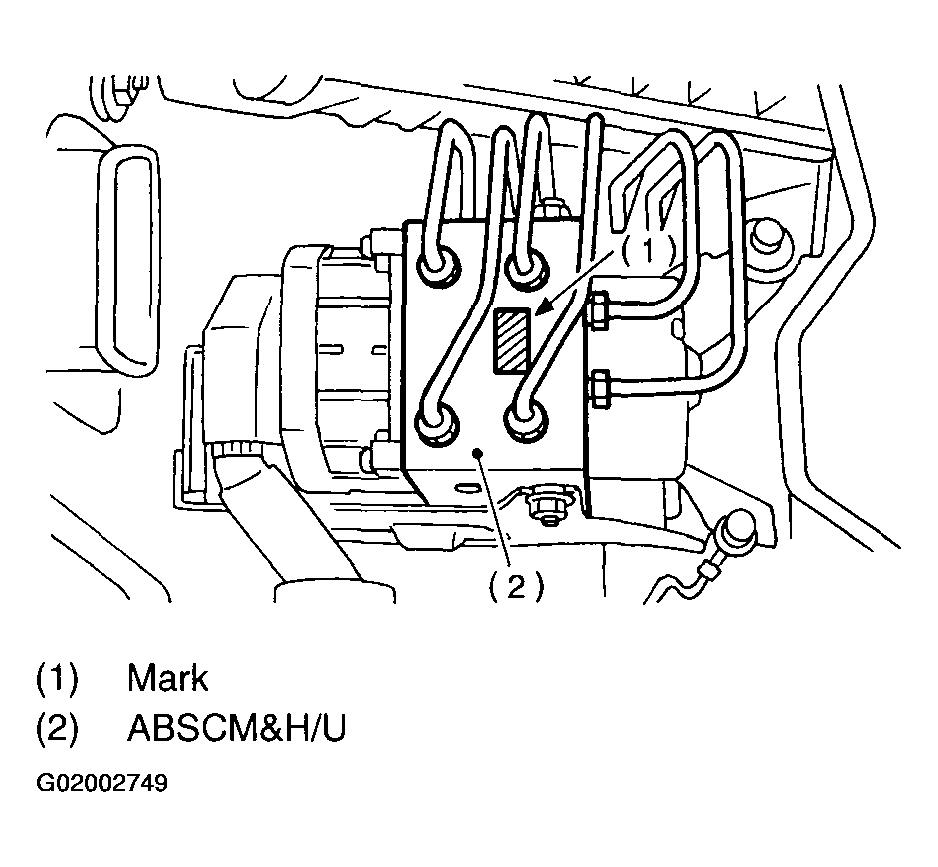

Fig 1: Identifying Mark On ABSCM & H/U
Fig 2: Specifications On mark On ABSCM & H/U
