Electrical Components Location

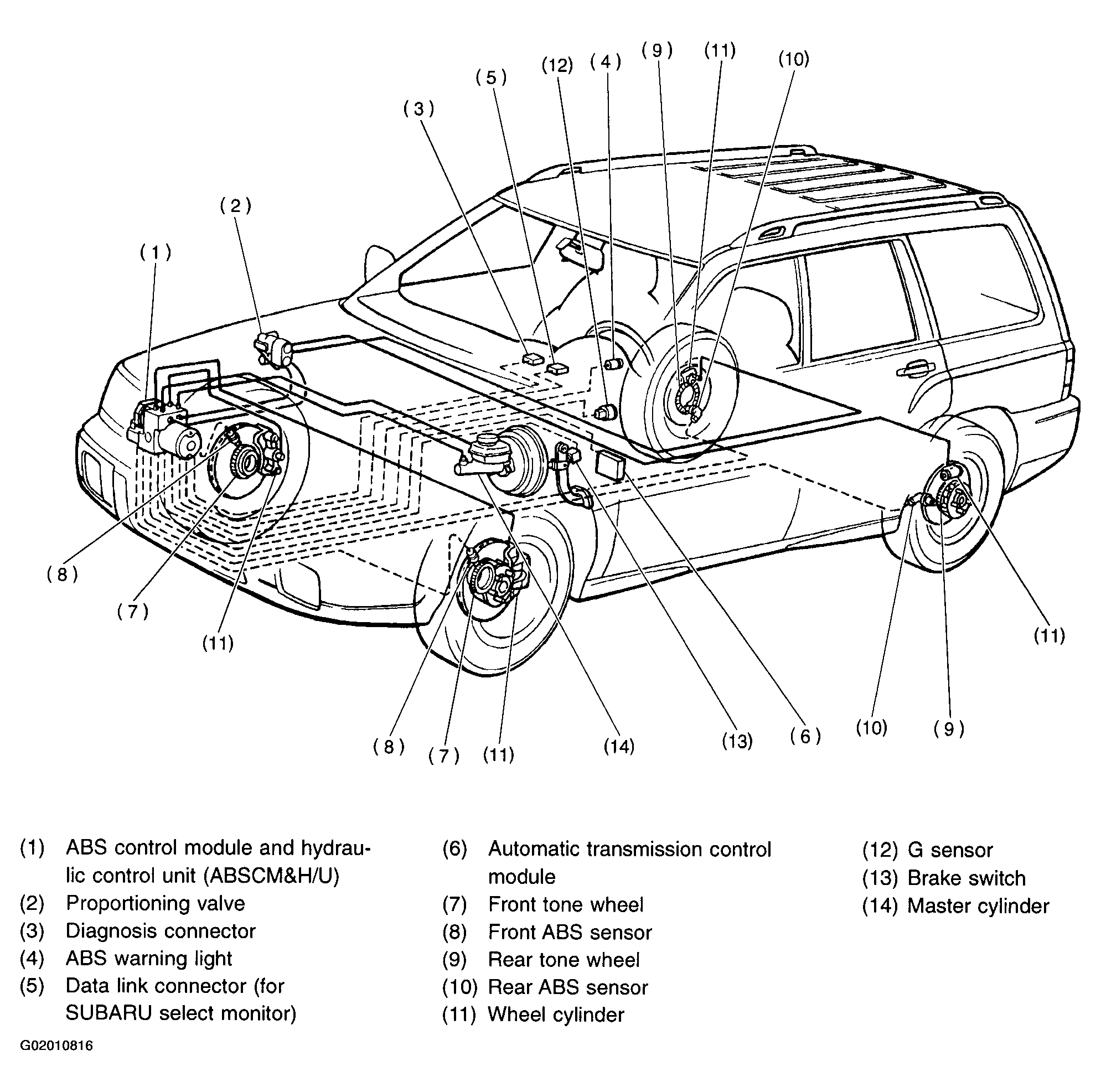

Fig 1: Identifying Electrical Components Location (1 Of 2)
G02010816

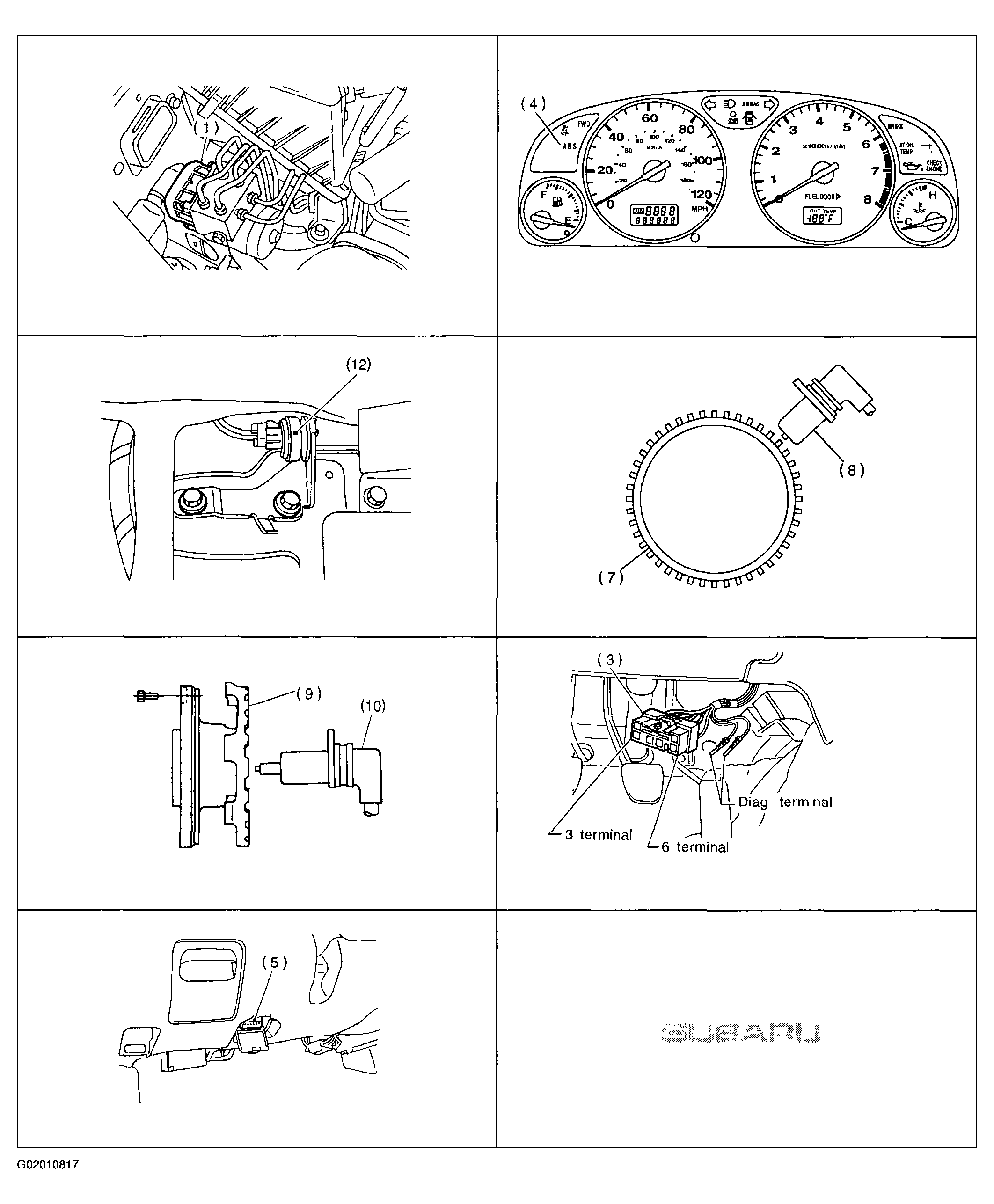

Fig 2: Identifying Electrical Components Location (2 Of 2)
G02010817
