Special Tool

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Not all tools are required to perform servicing on propeller shaft, view only the tools called out for in procedures.

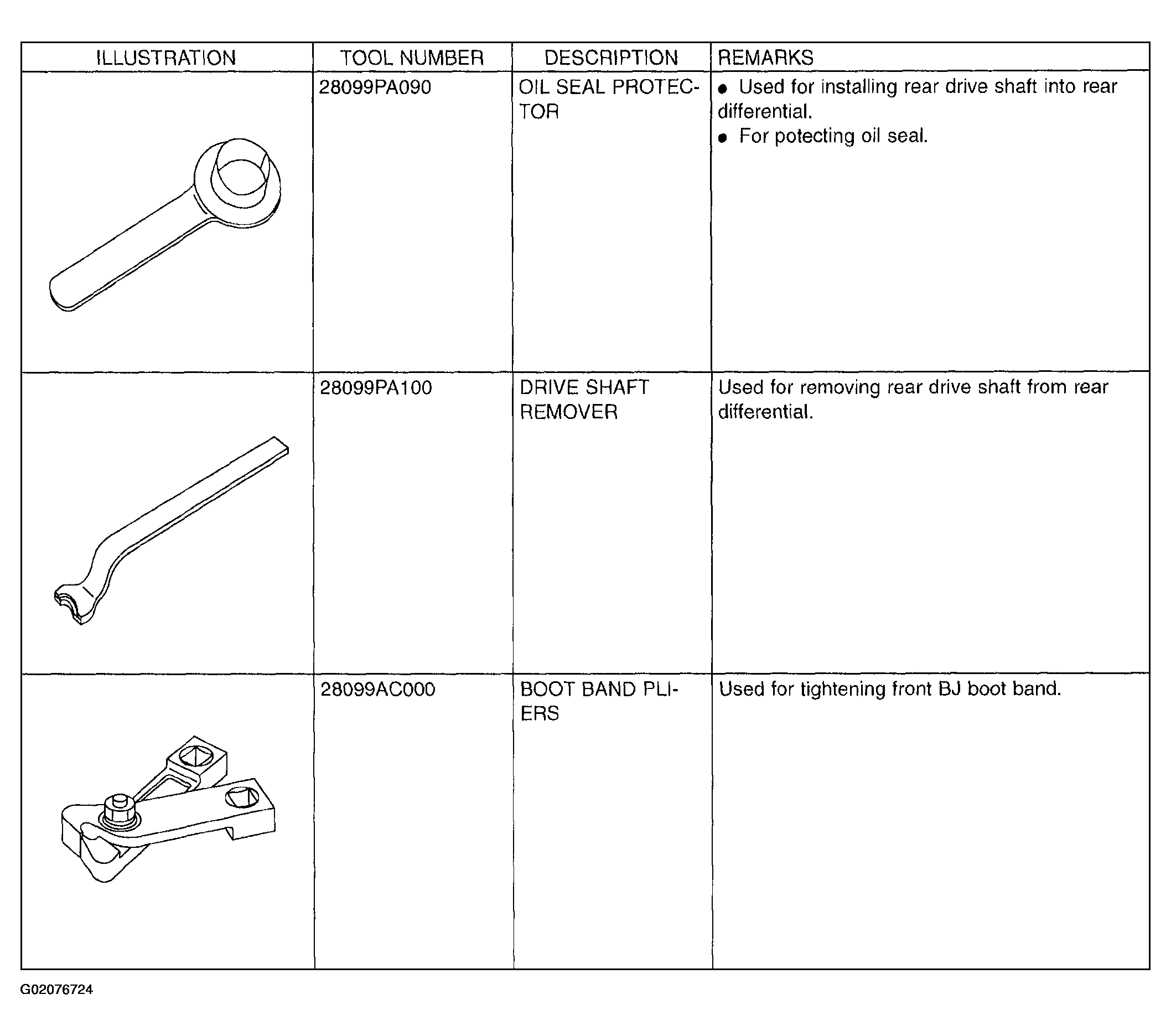

Fig 1: Identifying Special Tools (1 Of 5)

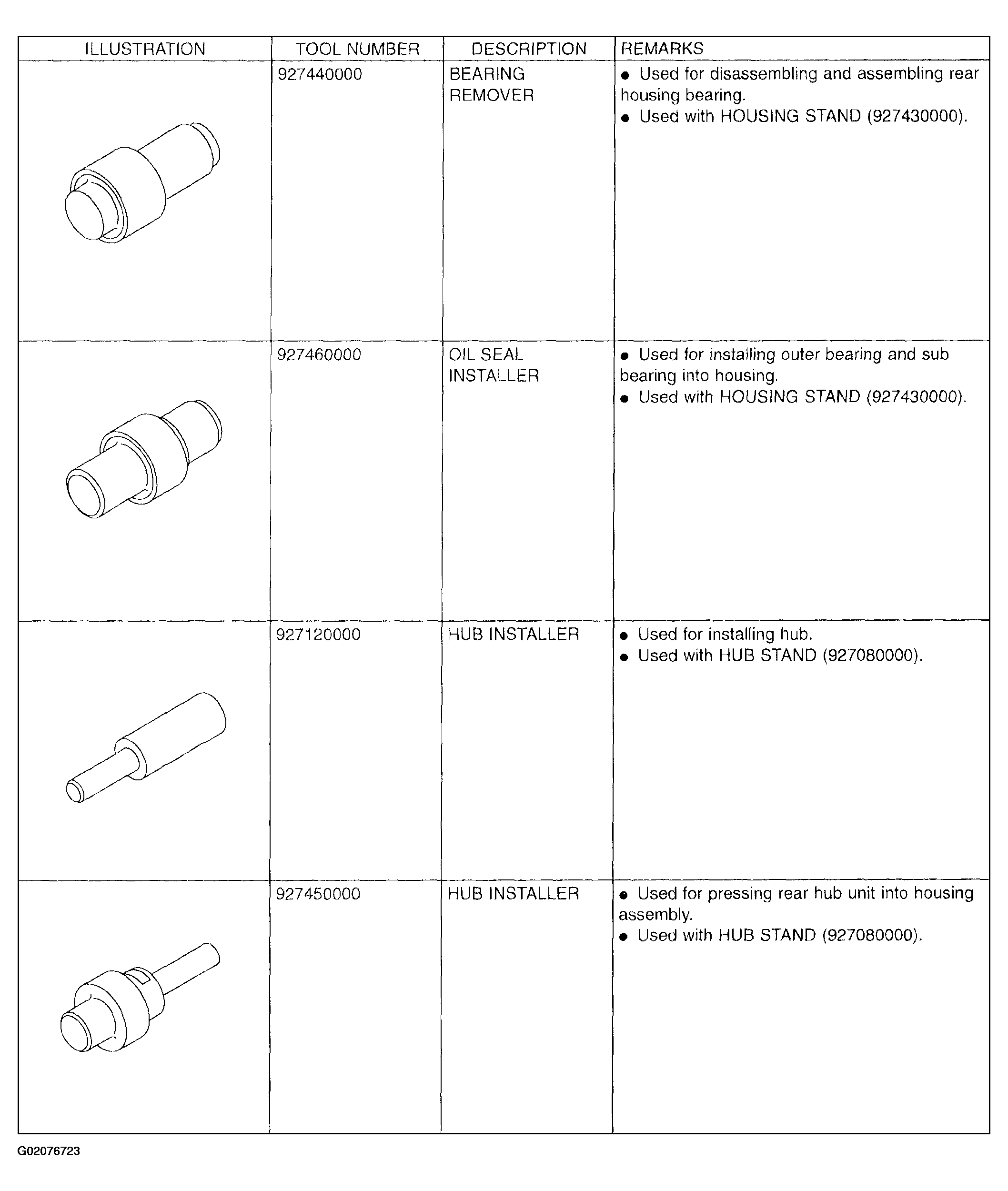

Fig 2: Identifying Special Tools (2 Of 5)

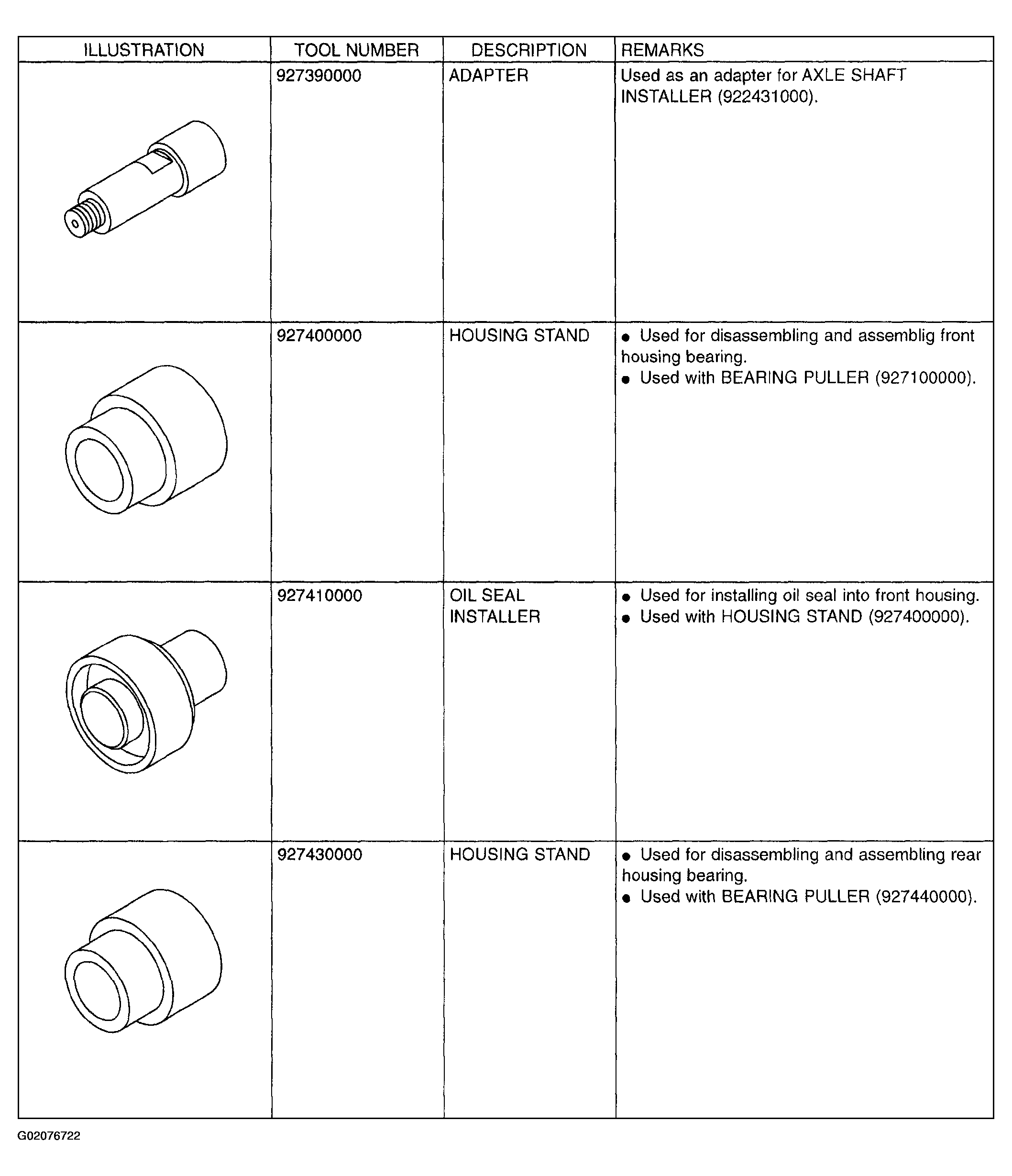

Fig 3: Identifying Special Tools (3 Of 5)

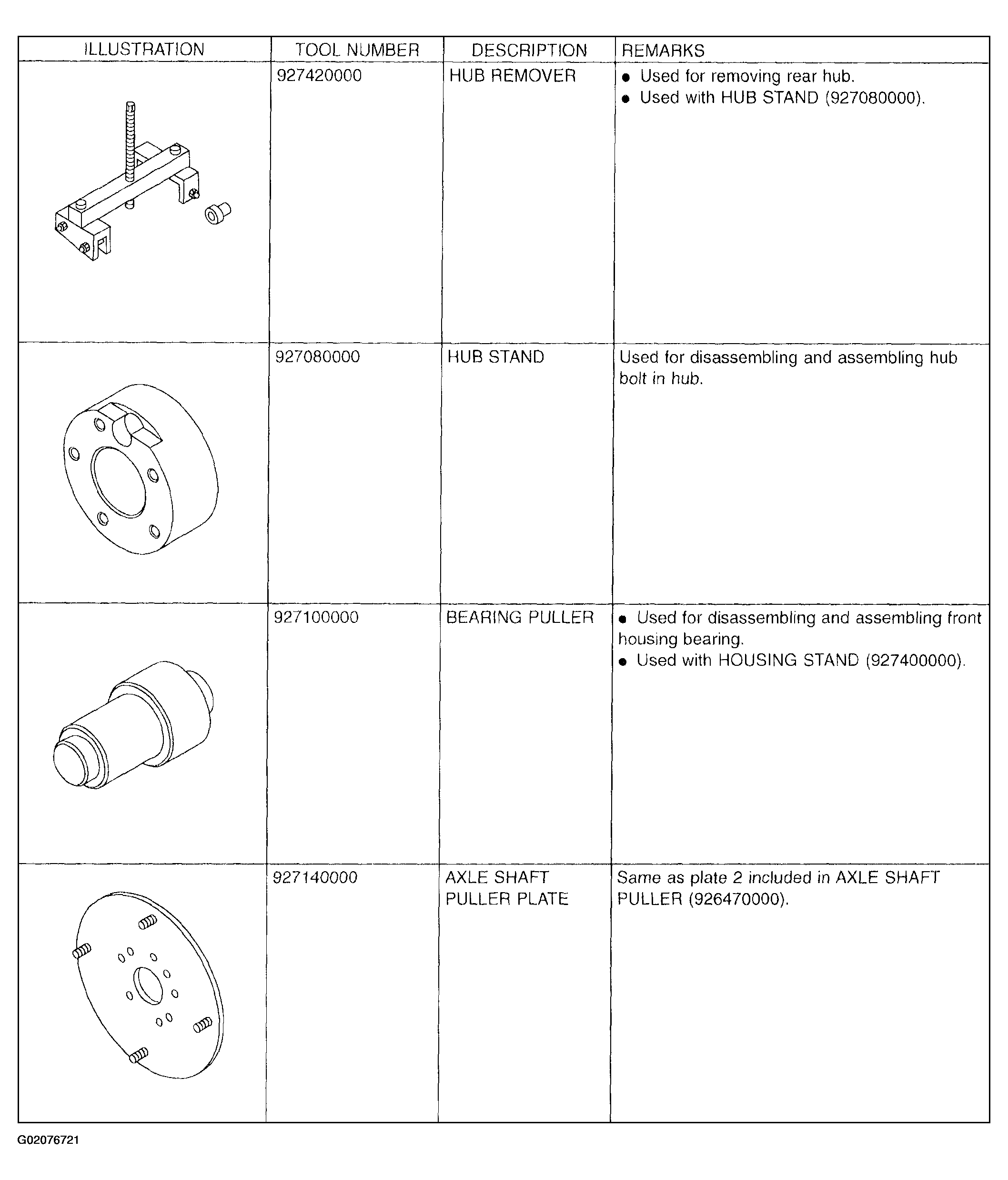

Fig 4: Identifying Special Tools (4 Of 5)

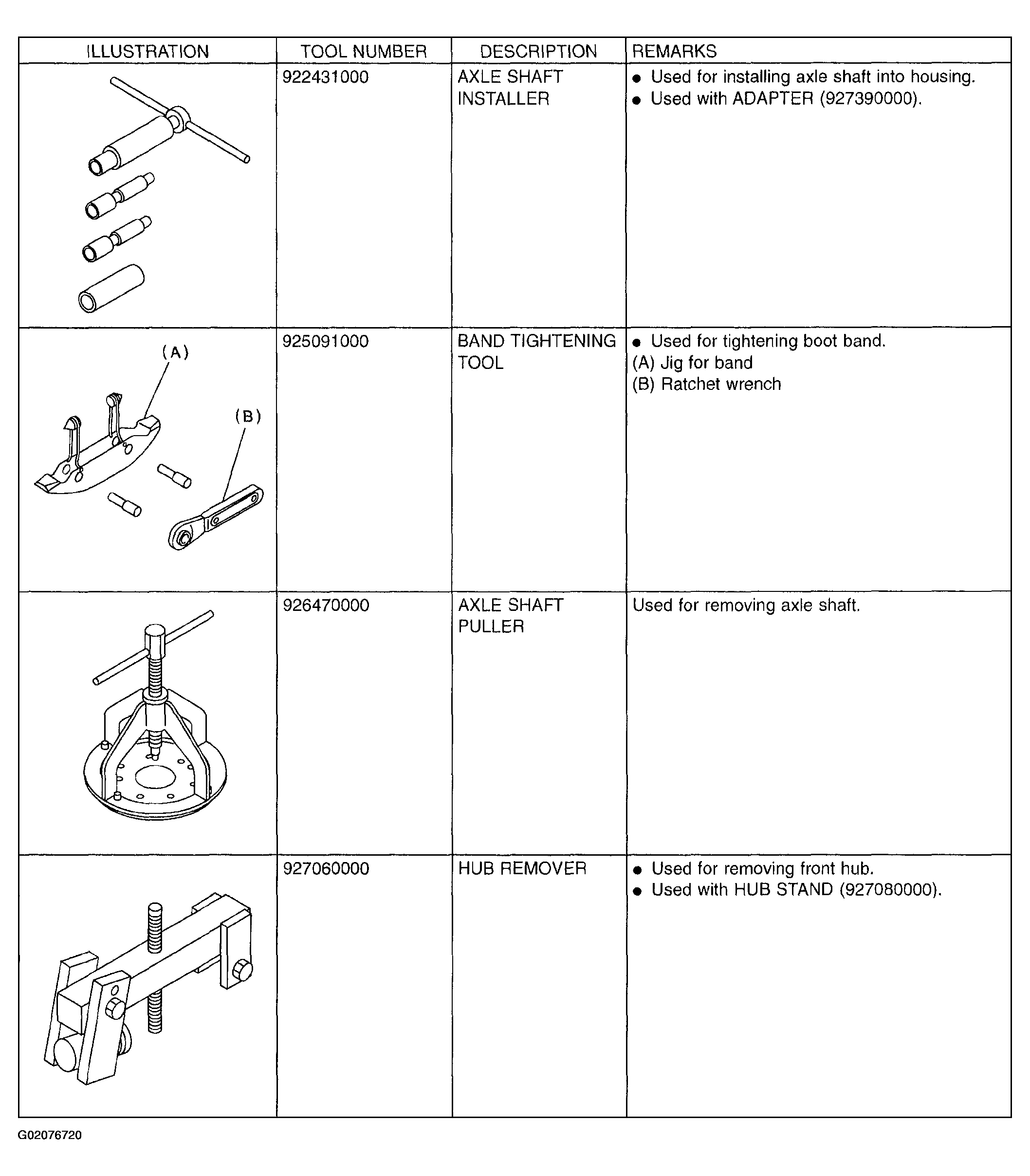

Fig 5: Identifying Special Tools (5 Of 5)
