Transfer Driven Gear: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install transfer driven gear.

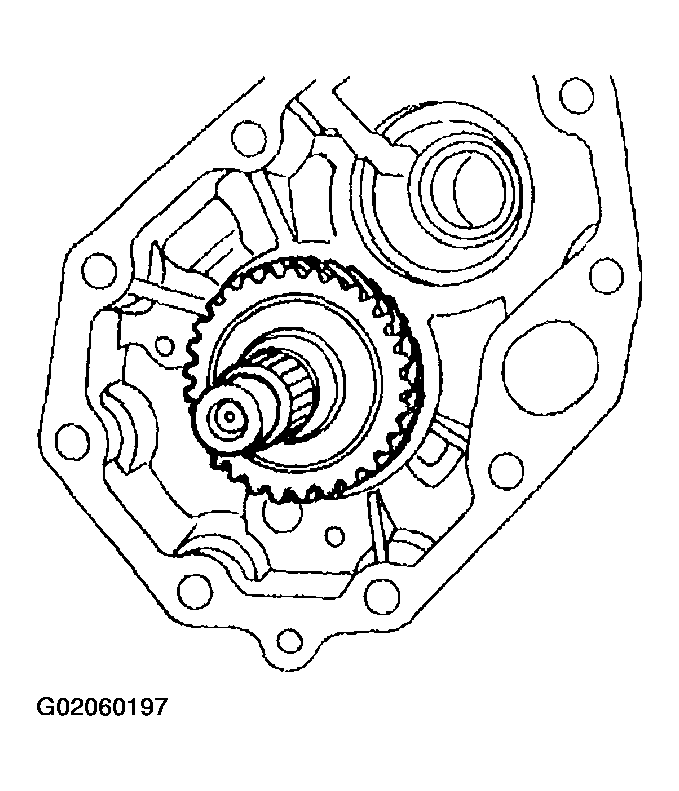

    Fig 1: Installing Transfer Driven Gear
    G02060197
  2. Install transfer case and extension case assembly. See INSTALLATION - TRANSFER CASE AND EXTENSION CASE ASSEMBLY  .
  3. Install back-up light switch and neutral position switch.
  4. Install the manual transmission assembly to vehicle. See INSTALLATION - TRANSMISSION TO ENGINE  .
