Transfer Case

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove reverse check sleeve assembly. See REVERSE CHECK SLEEVE  .
  2. Remove oil guide.

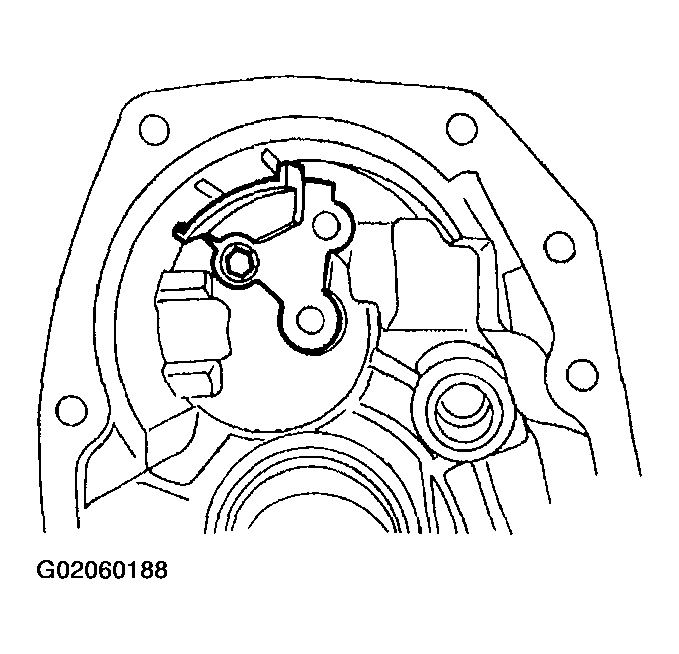

    Fig 1: Removing Oil Guide
    G02060188
