Pitching Stopper

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground terminal.
  2. Remove air intake duct and air cleaner case. See AIR CLEANER CASE .
    Fig 1: Identifying Air Intake Duct & Air Cleaner Case
    G02061812
  3. Remove the pitching stopper.

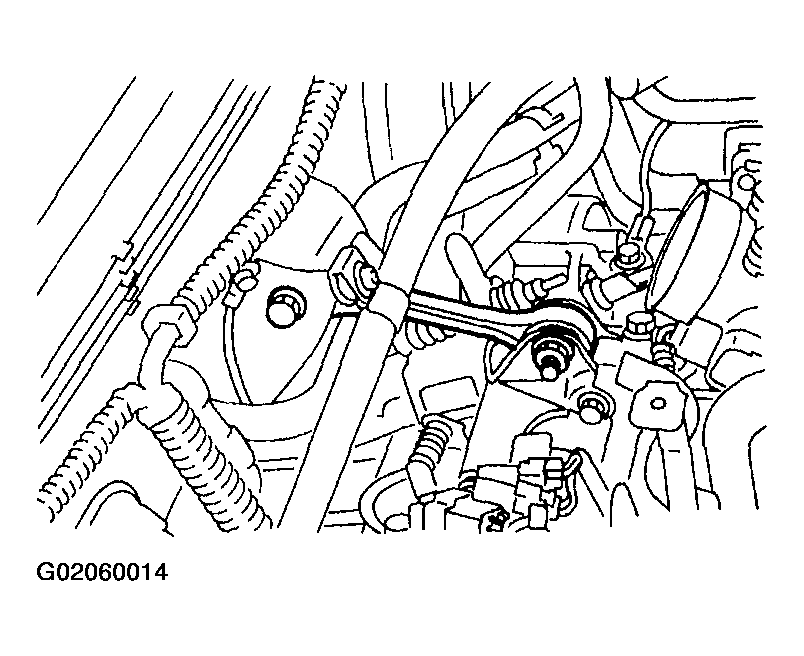

    Fig 2: Removing Pitching Stopper
    G02060014
