Control Module Power Supply and Ground Line

B: CONTROL MODULE POWER SUPPLY AND GROUND LINE

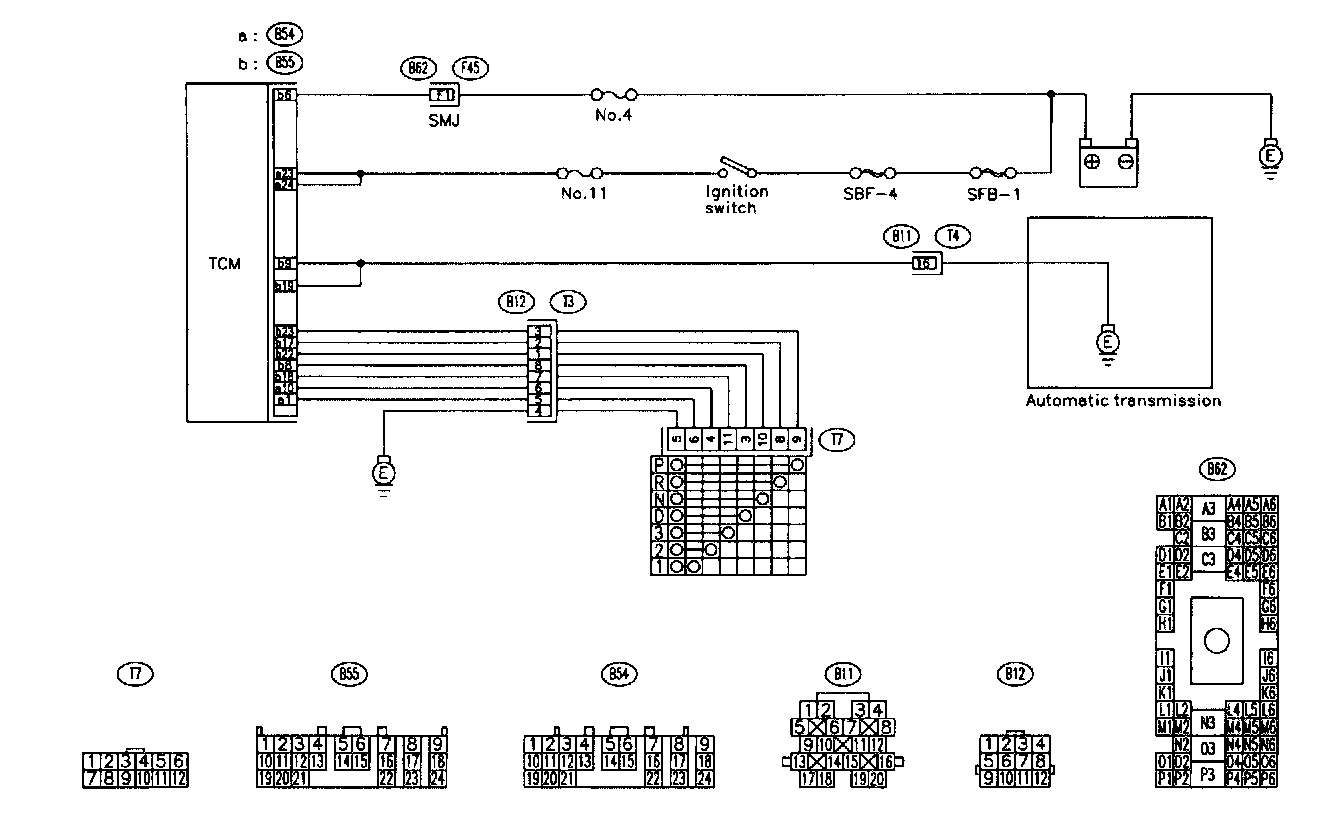

WIRING DIAGRAM

TEST STEPS:

Step 7B1:





Step 7B2:

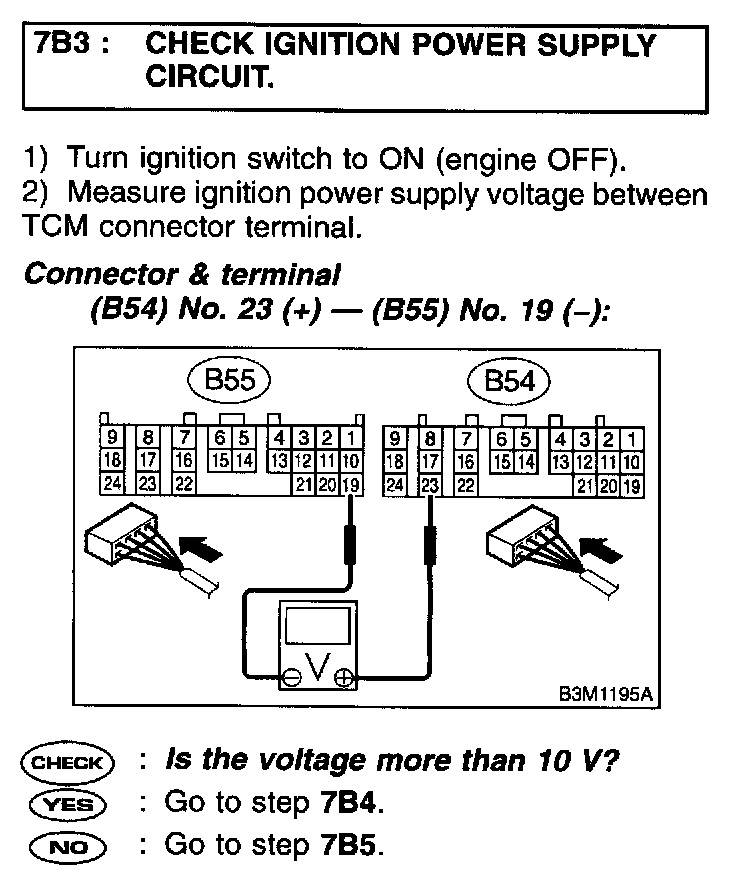

Step 7B3:

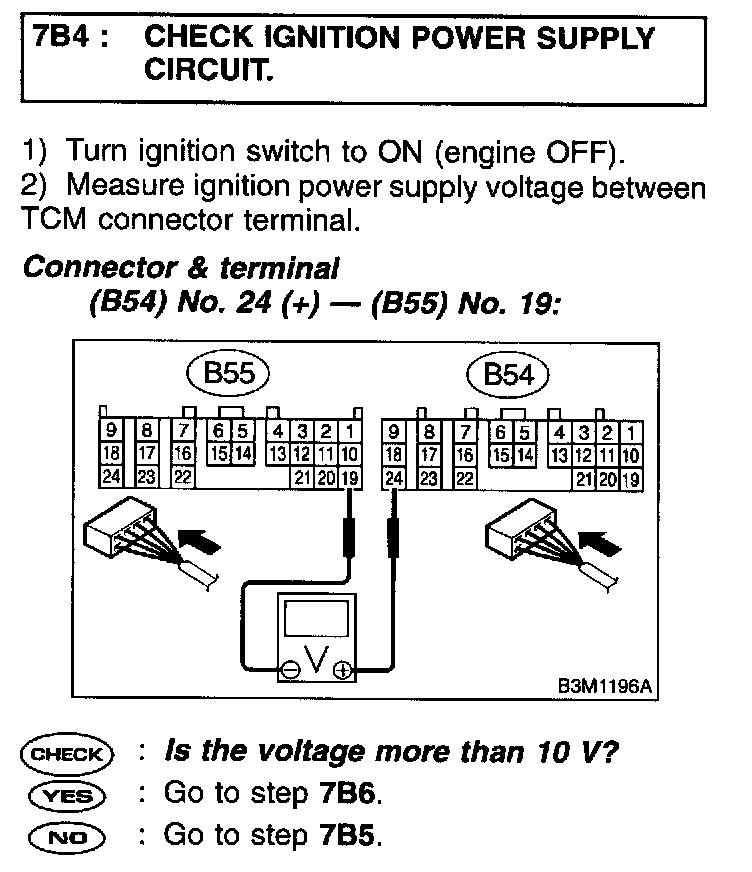

Step 7B4:





Step 7B5:

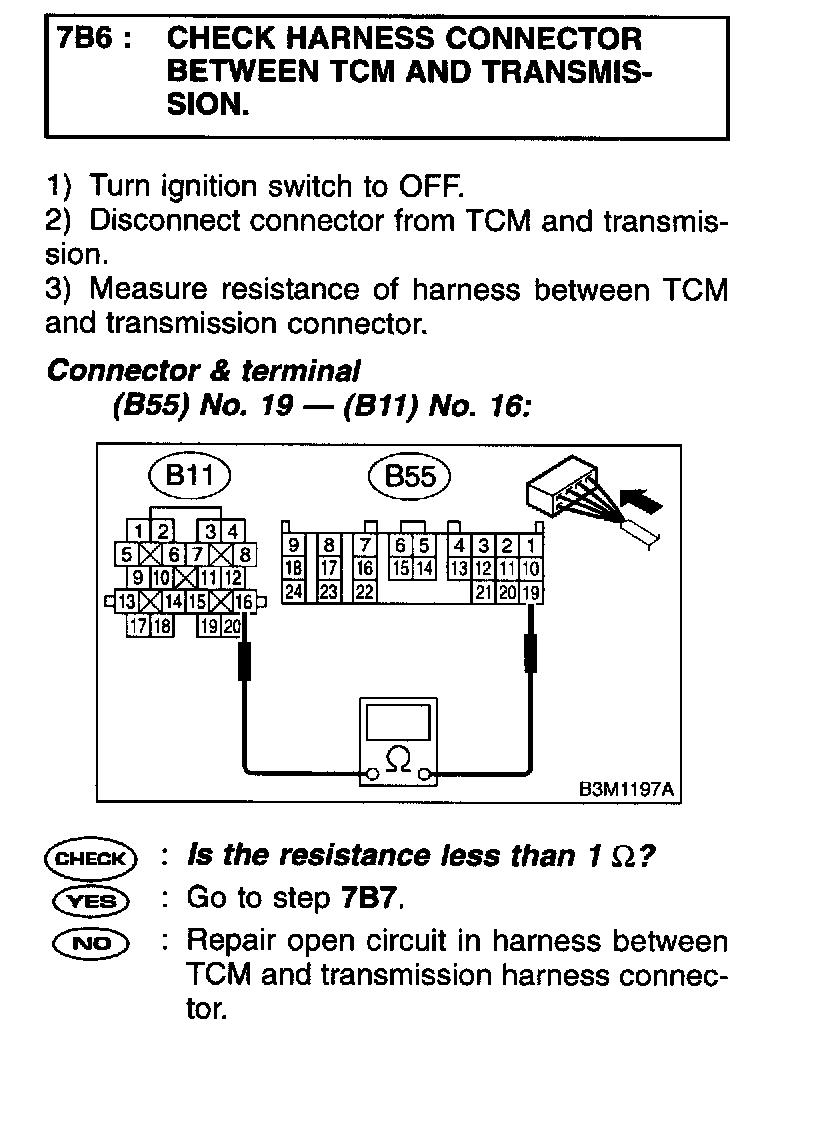

Step 7B6:

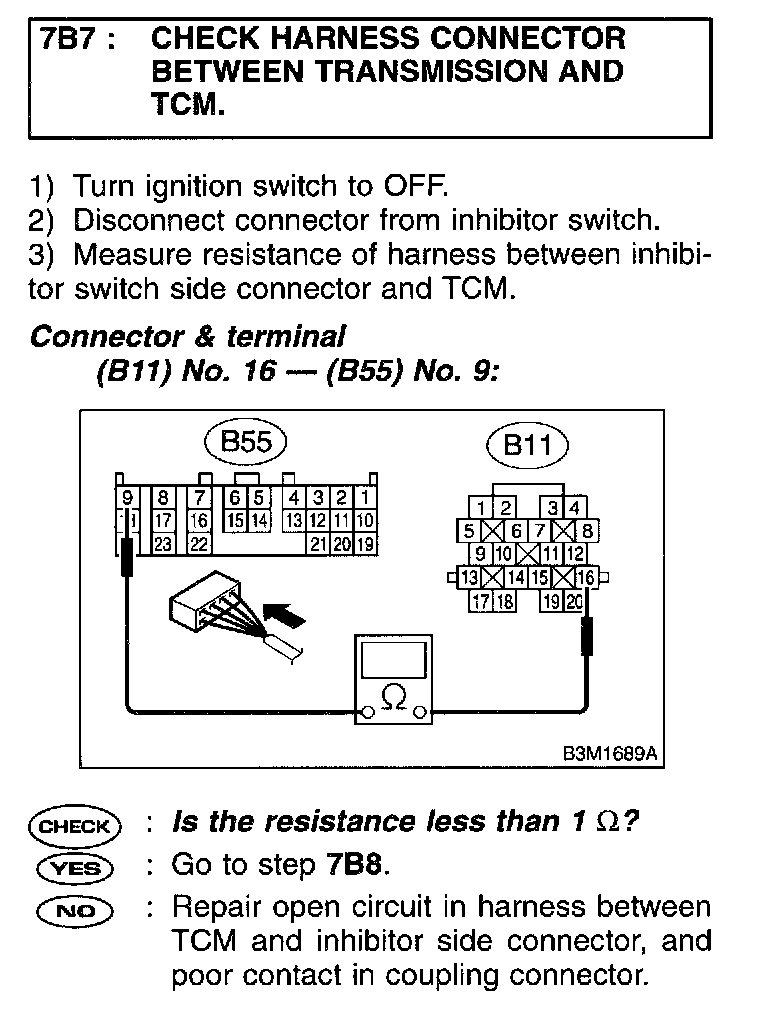

Step 7B7:





Step 7B8:





Step 7B9:
