When Shift Is Made To 5th

The selector arm moves to the 5th side pushing the reverse accent shaft. When the selector arm pulls out of the reverse check cam, the reverse check cam is returned to the original position by the reverse check spring.

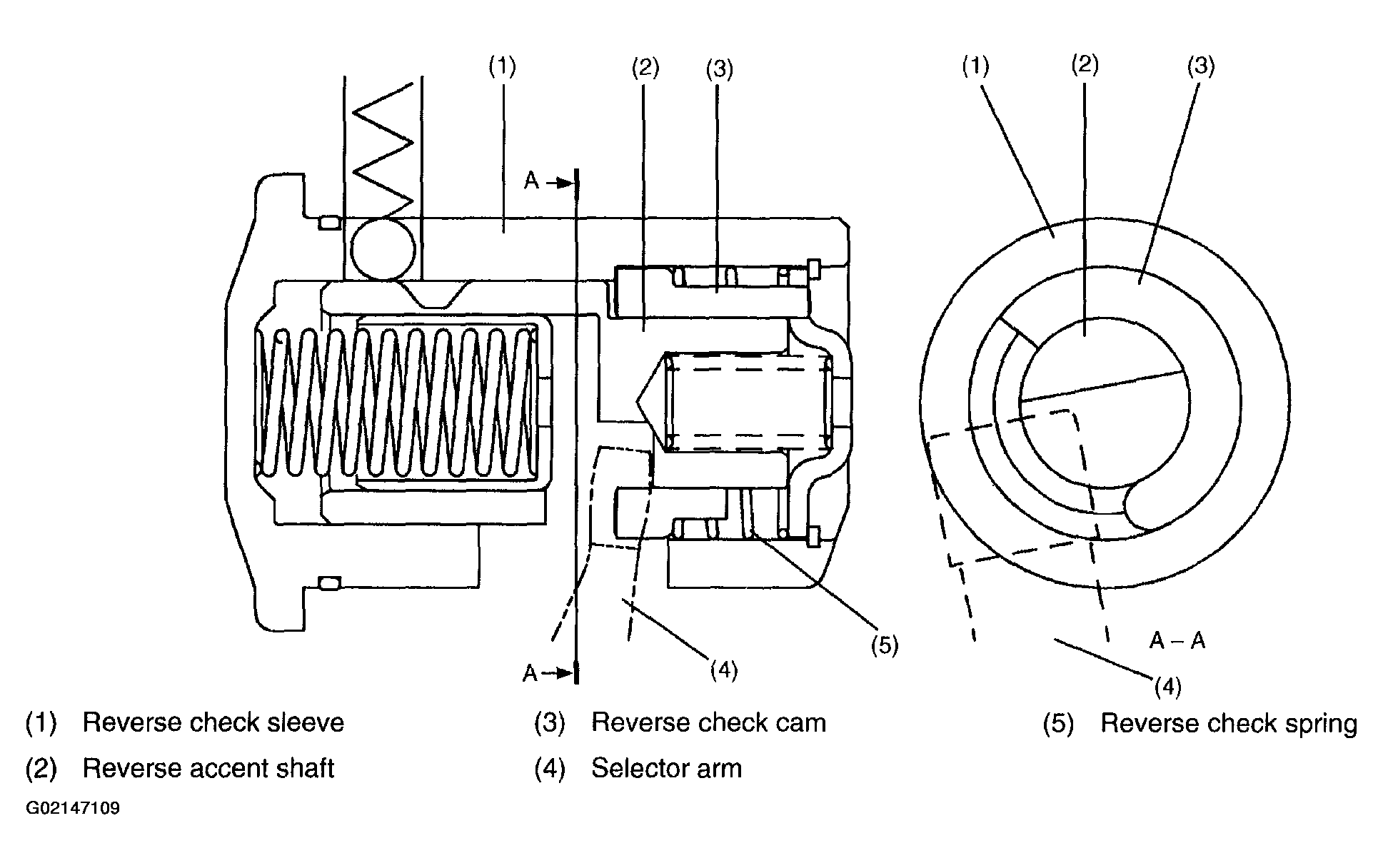

Fig 1: Reverse Check Mechanism Operation (When Shift Is Made To 5th)
