Cruise Control Module: Testing and Inspection

Control Module I/O Signal - Connector View:

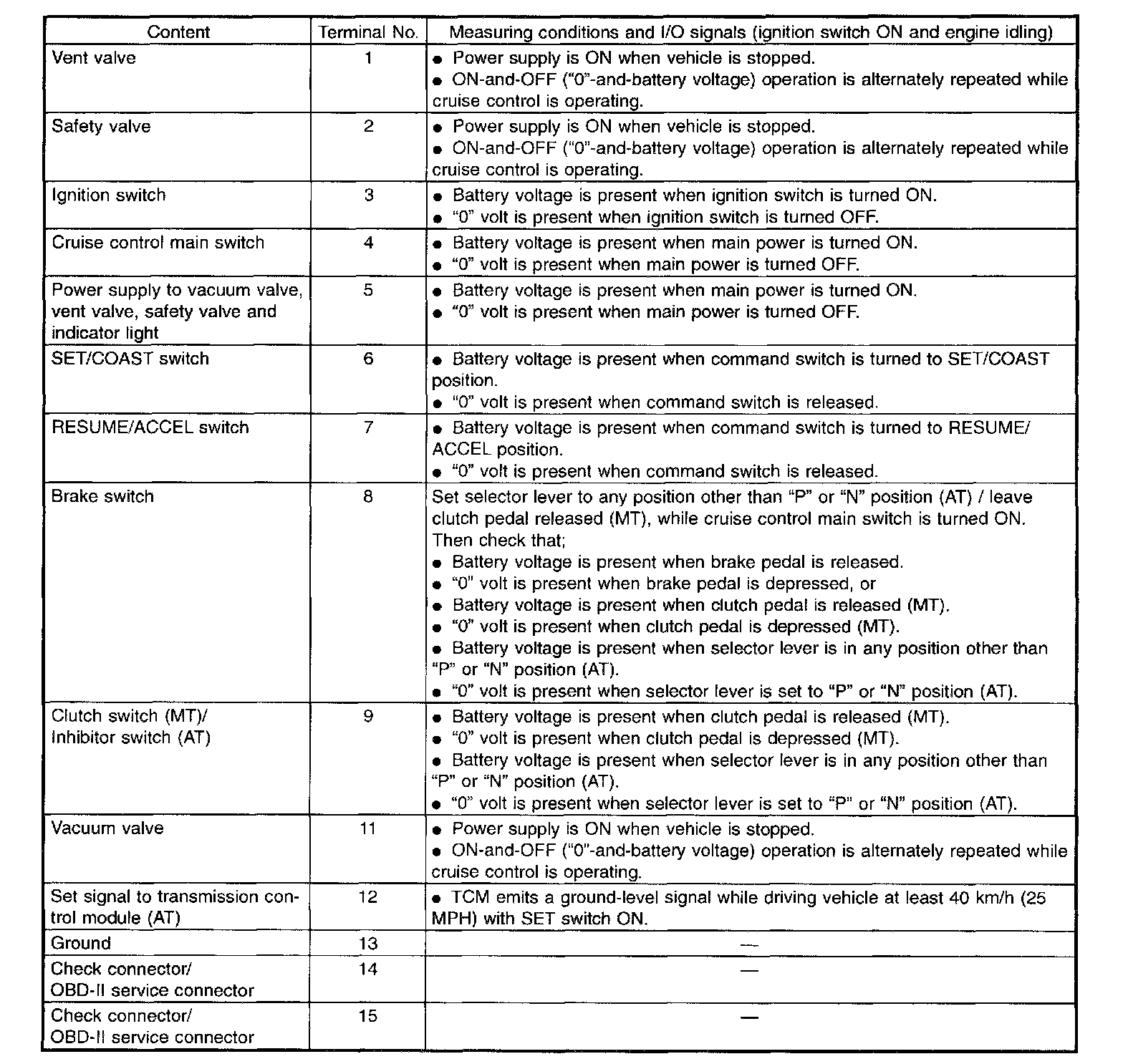

Control Module I/O Signal - Pin Outs (Part 1 Of 2):



Control Module I/O Signal - Pin Outs (Part 2 Of 2):
