Differential Assembly

REAR DIFFERENTIAL ASSEMBLY

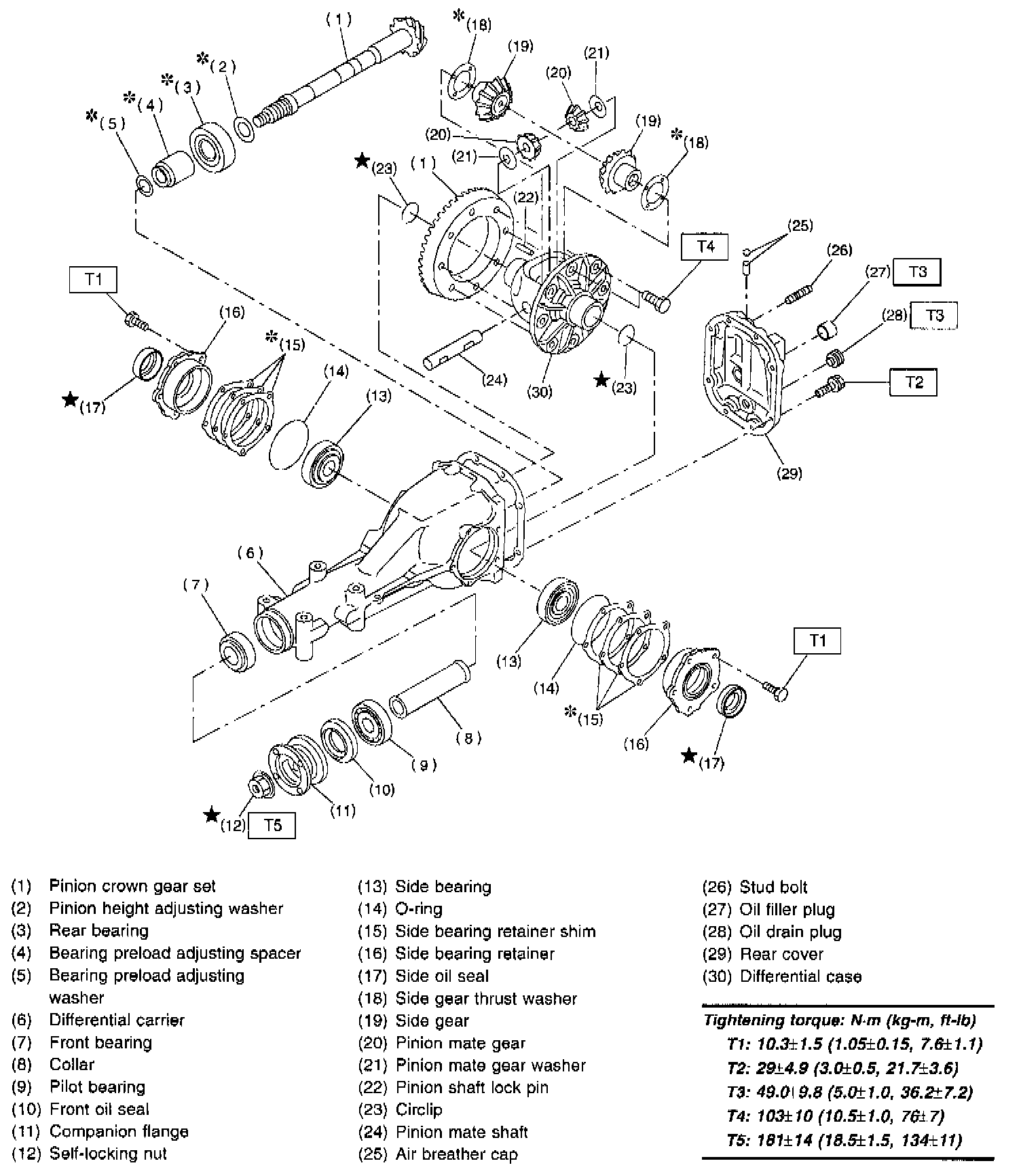

WITHOUT LSD

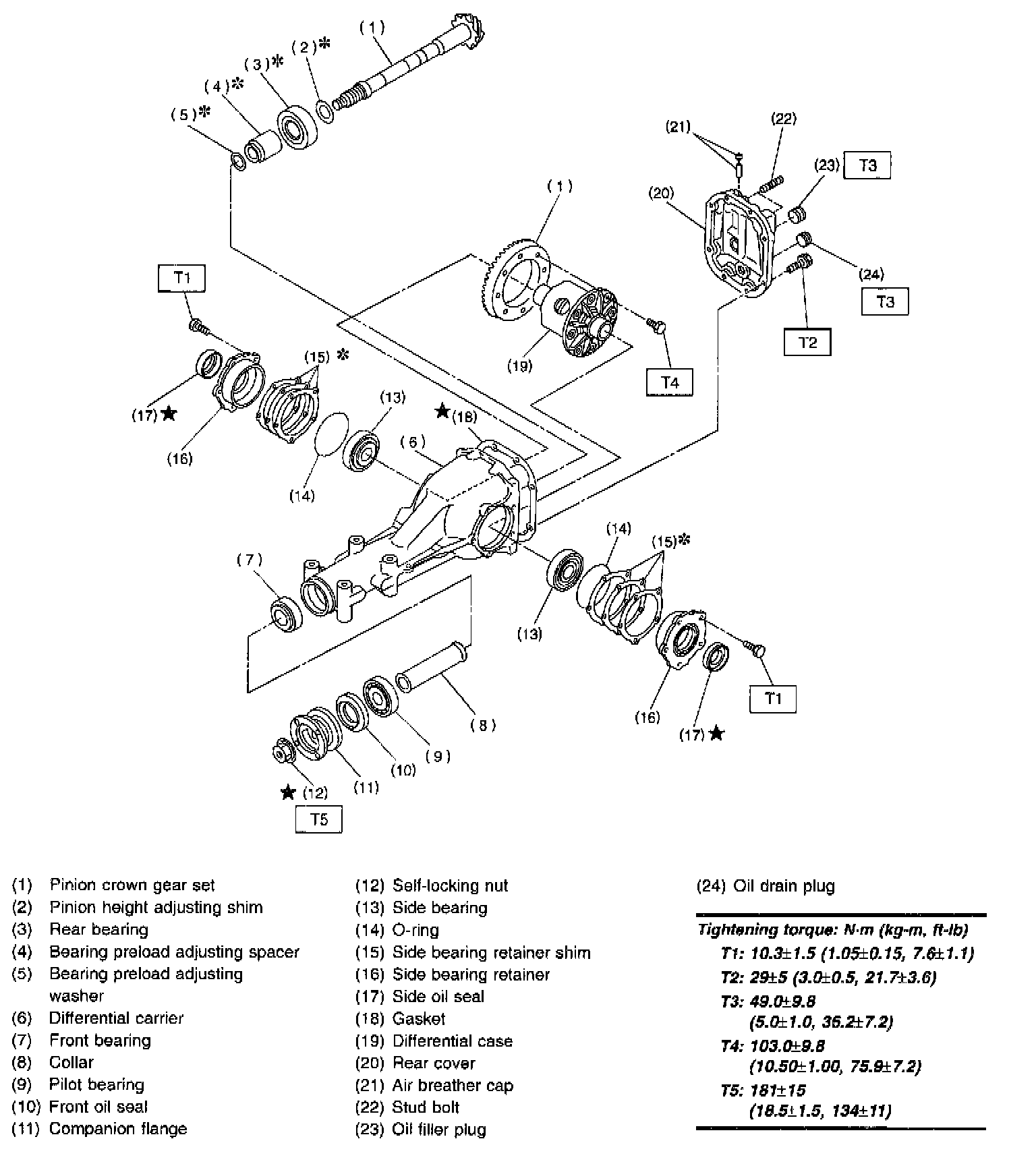

WITH LSD

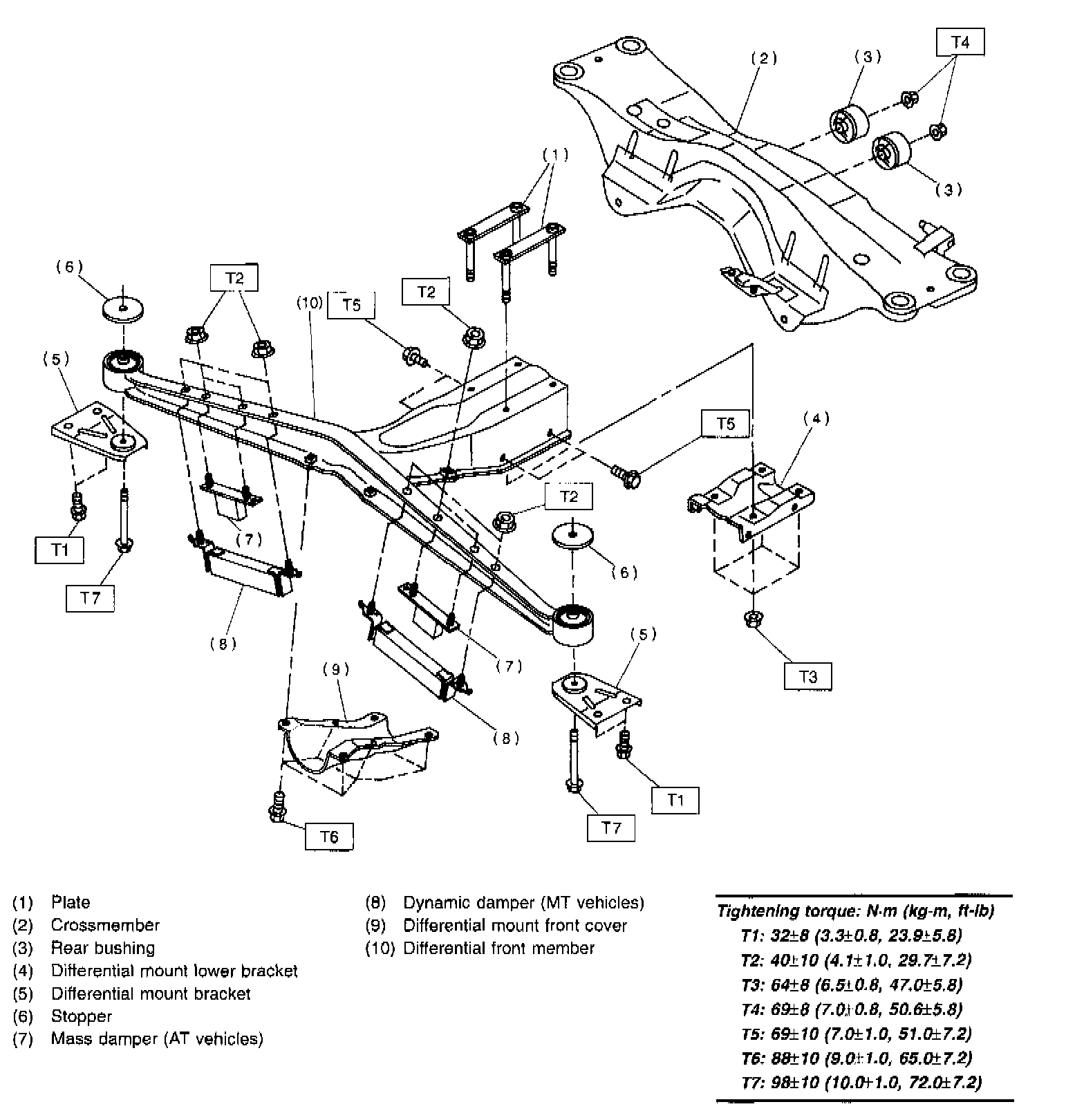

REAR DIFFERENTIAL MOUNTING SYSTEM
