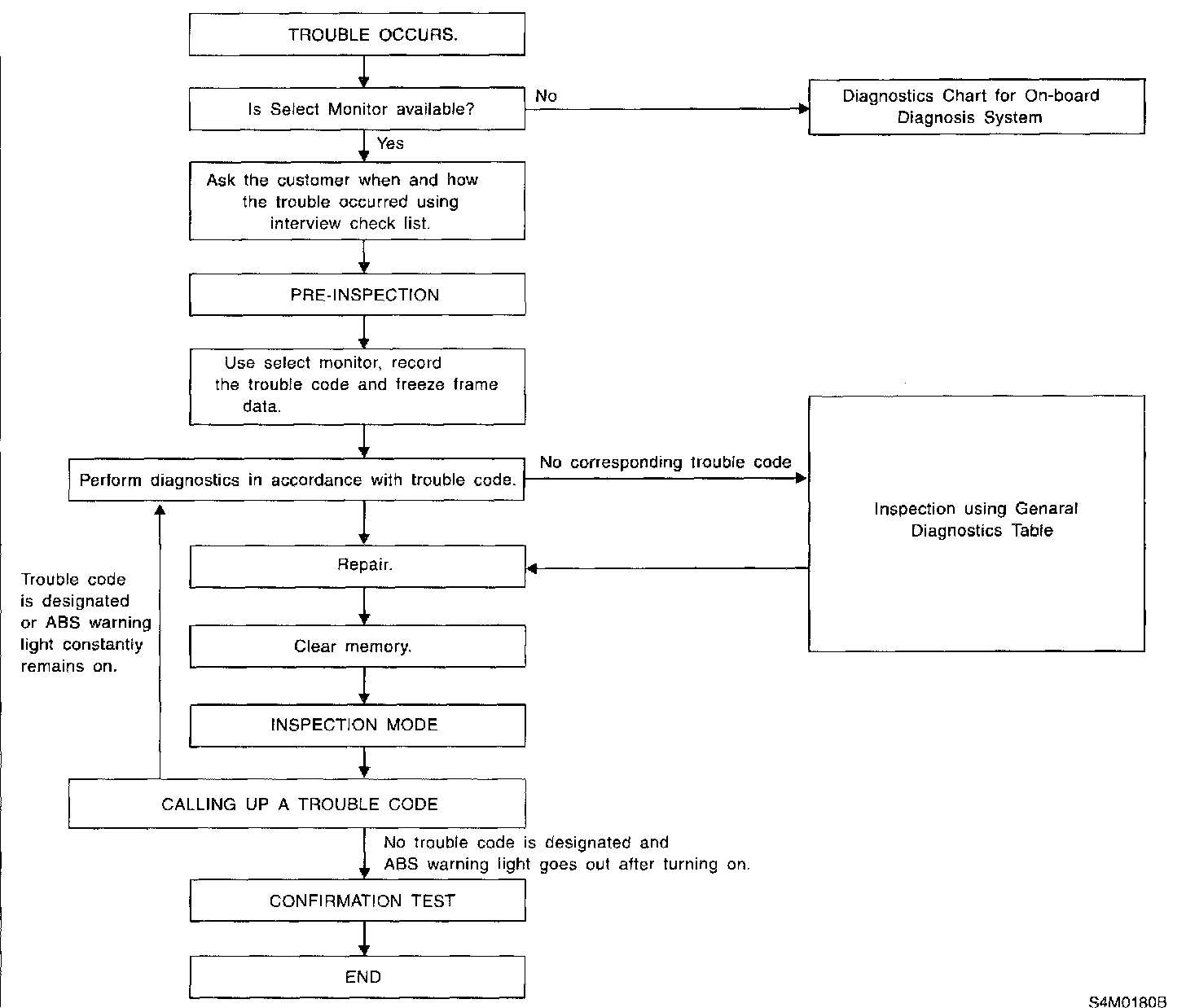

Basic Diagnostic Chart





CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.

NOTE: To check harness for broken wires or short circuits, shake it while holding it or the connector.
