Home >> Subaru >> 1999 >> Legacy L Sedan AWD F4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust System

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

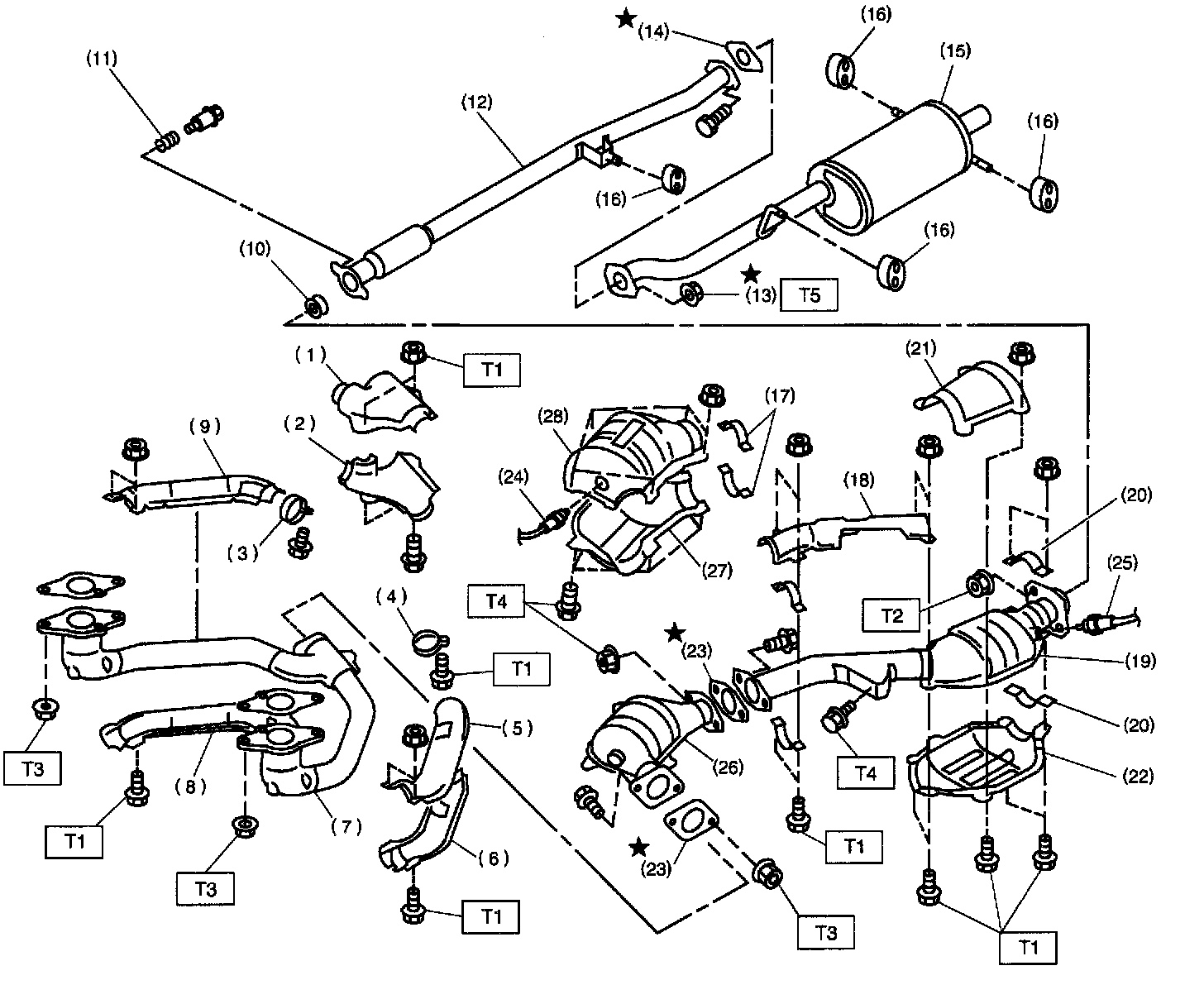

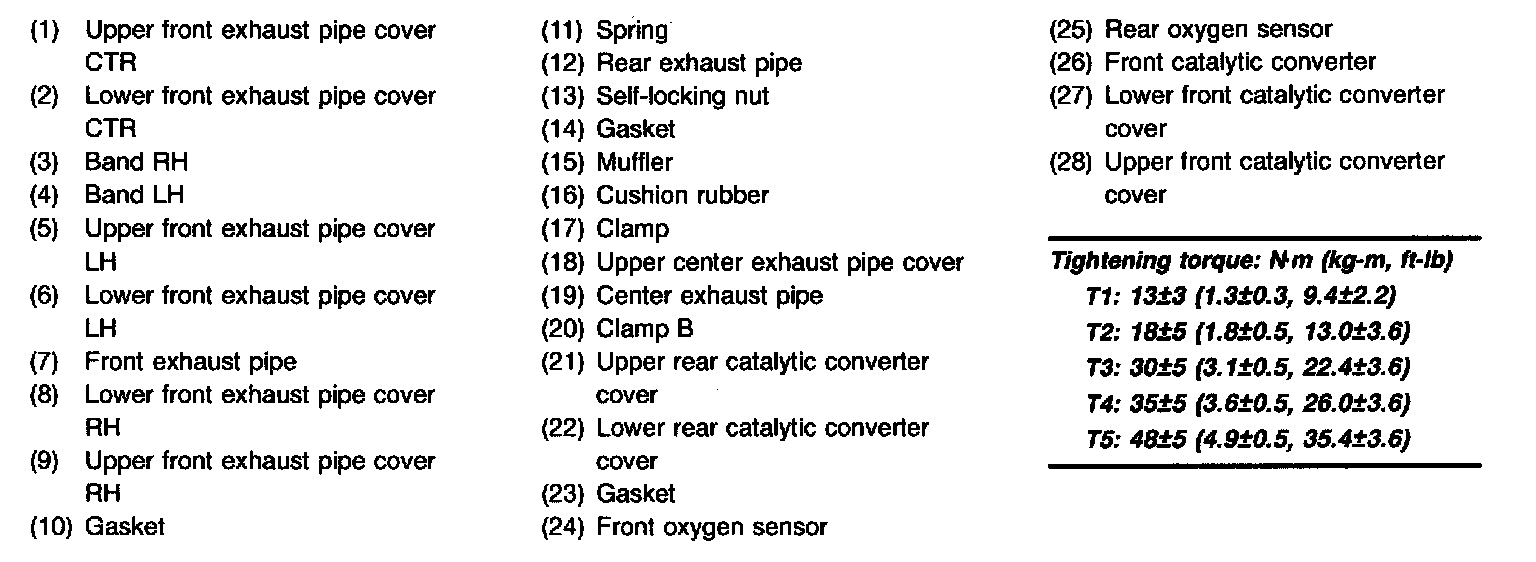

Exhaust System

Part 1 Of 2:

Part 2 Of 2:

A: 2200 cc MODEL
