Pinout Values and Diagnostic Parameters

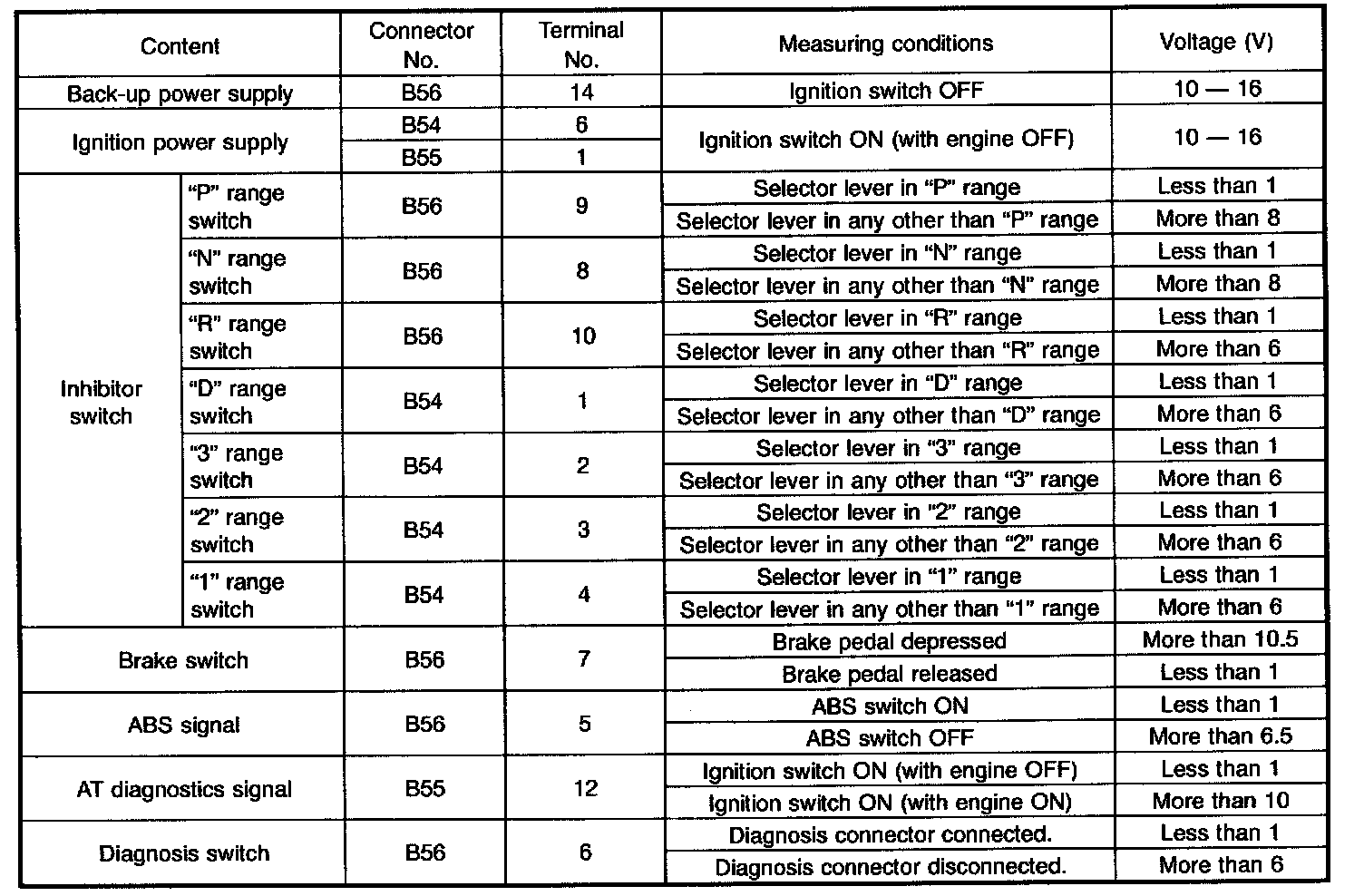

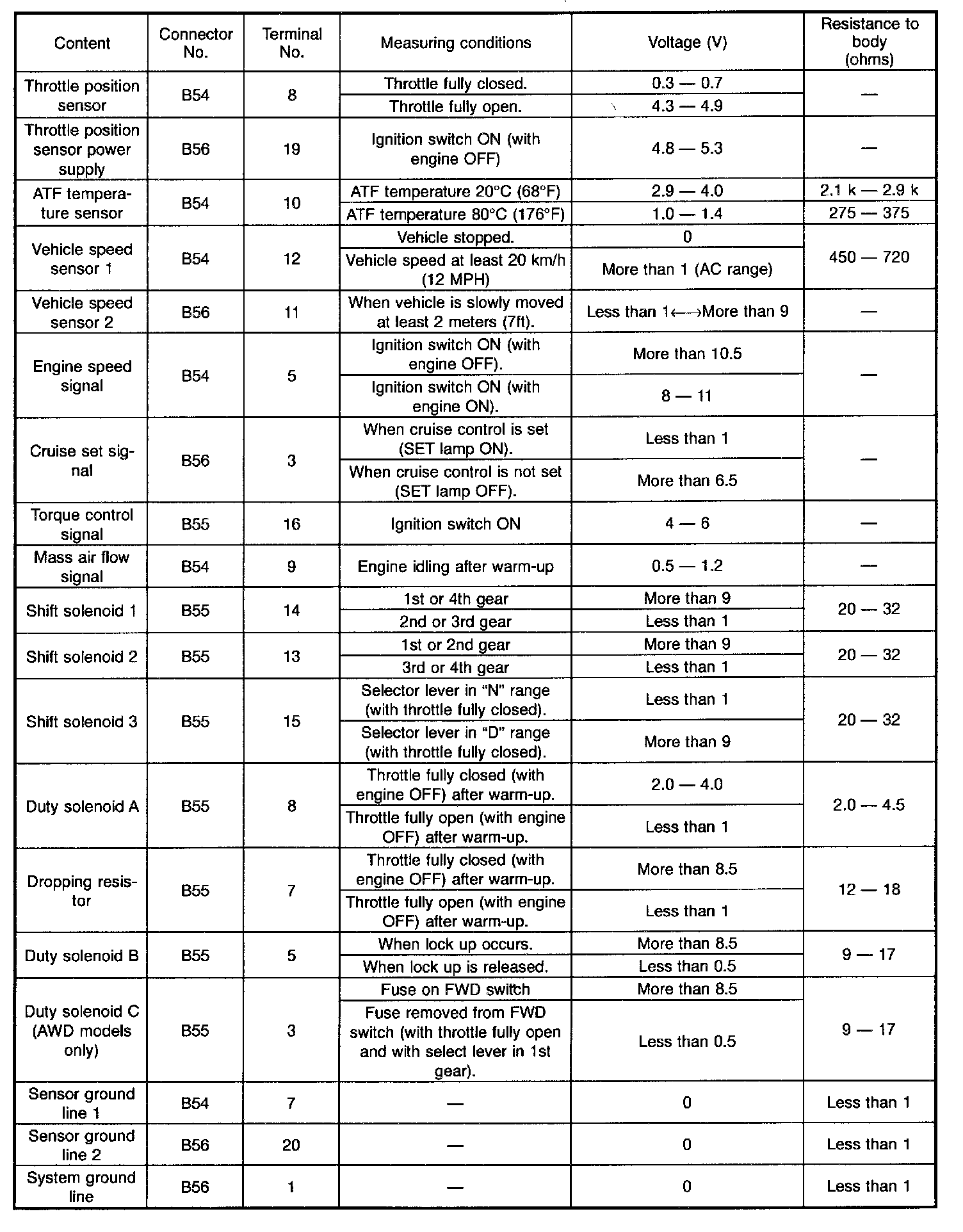

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL

NOTE: Check with ignition switch ON.
