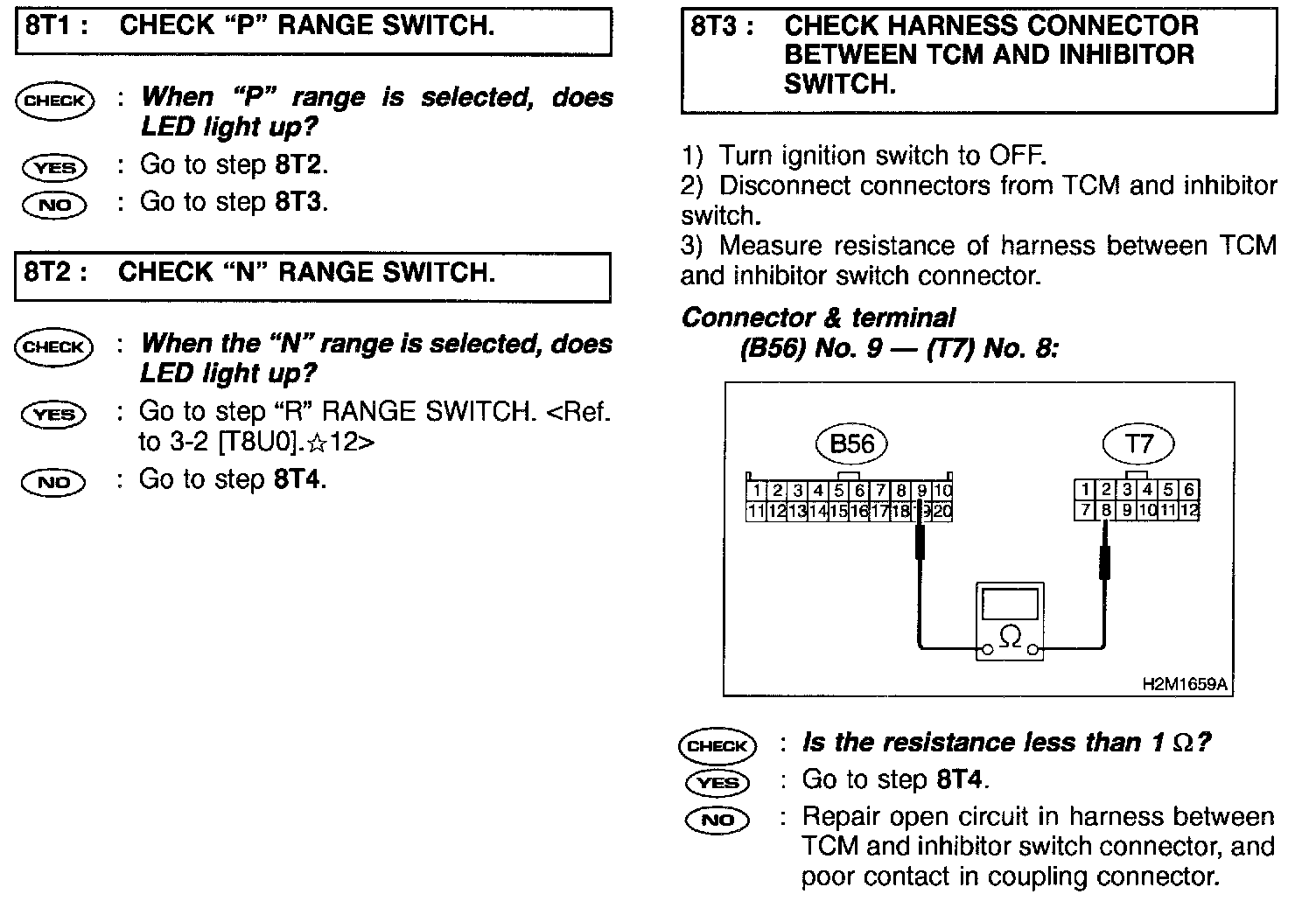

Check N/P Range Switch

CHECK "N/P" RANGE SWITCH

















Diagnosis:
Input signal circuit of "P" or "N" range is open or shorted.





Wiring Diagram:
