Check 3 Range Switch

CHECK "3" RANGE SWITCH











Diagnosis:
Input signal circuit of "3" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "3" range.

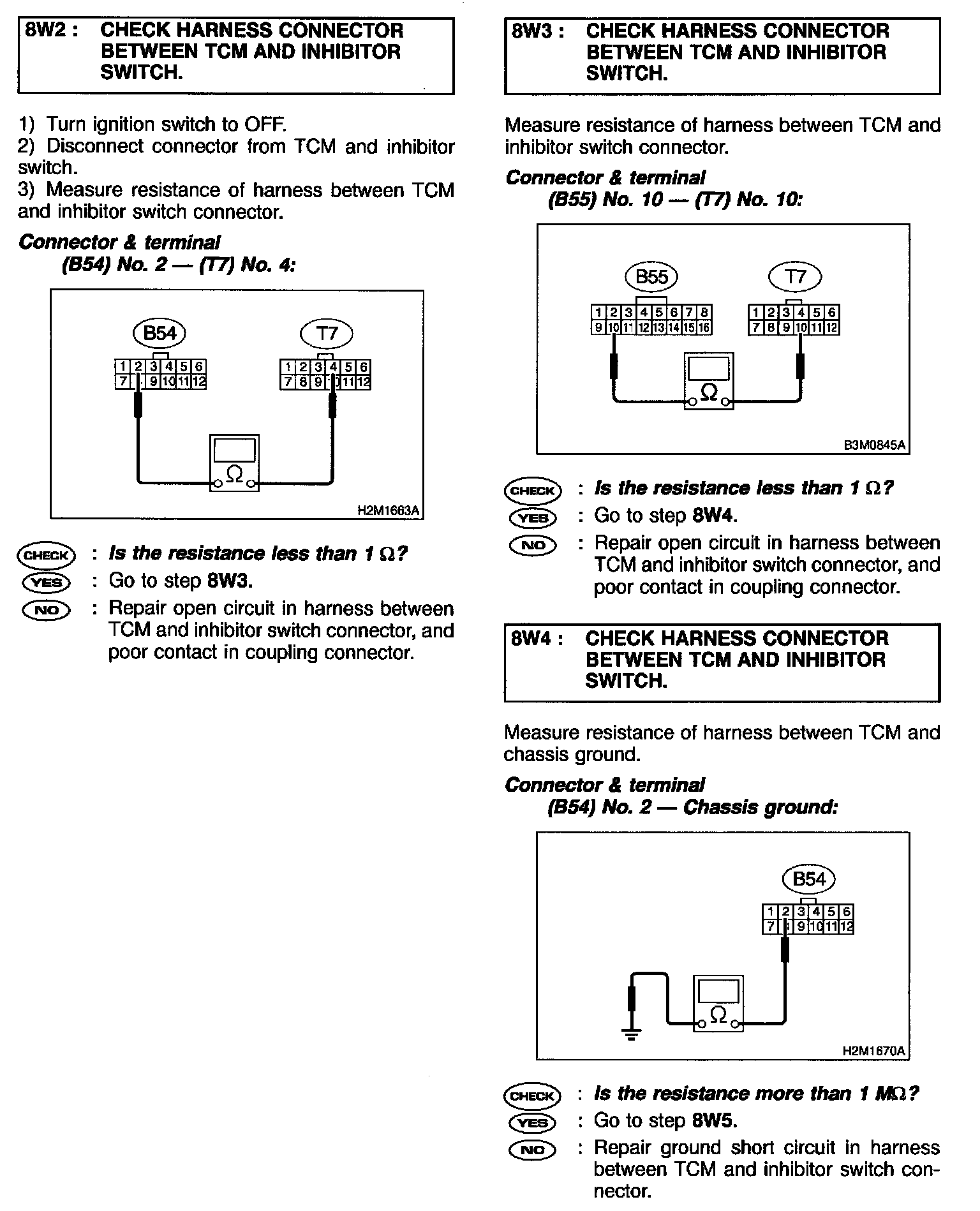

Wiring Diagram:
