AWD System

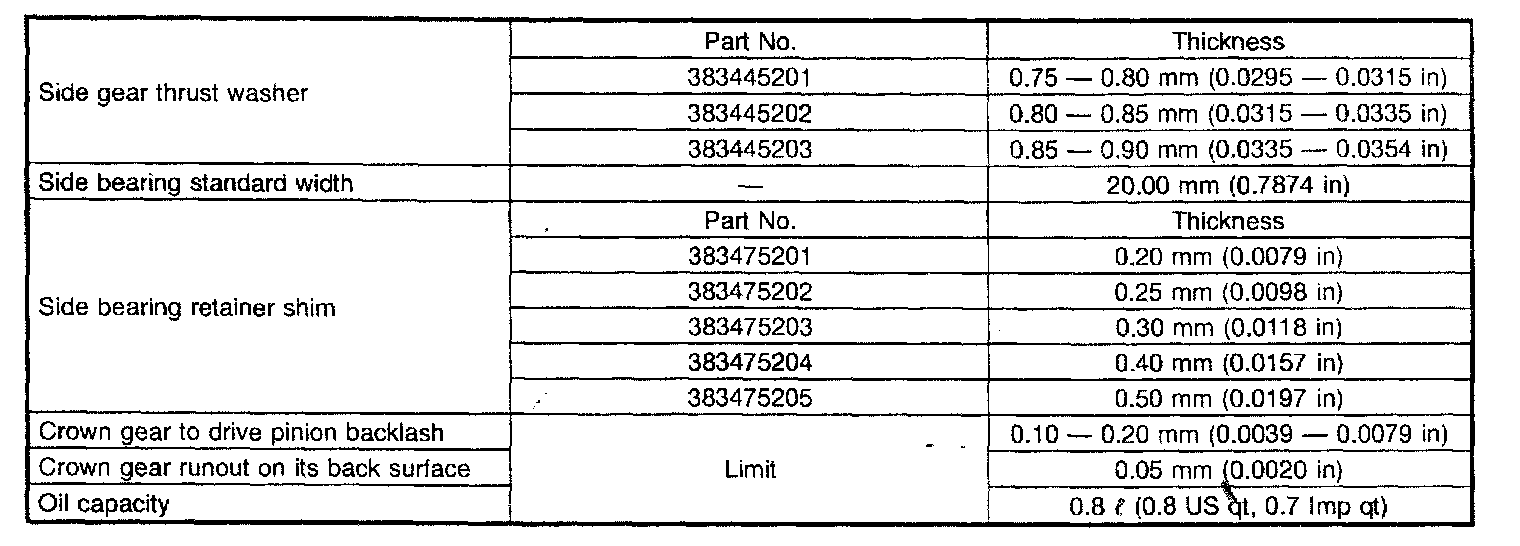

Rear Differential Service Data (Adjusting Parts):

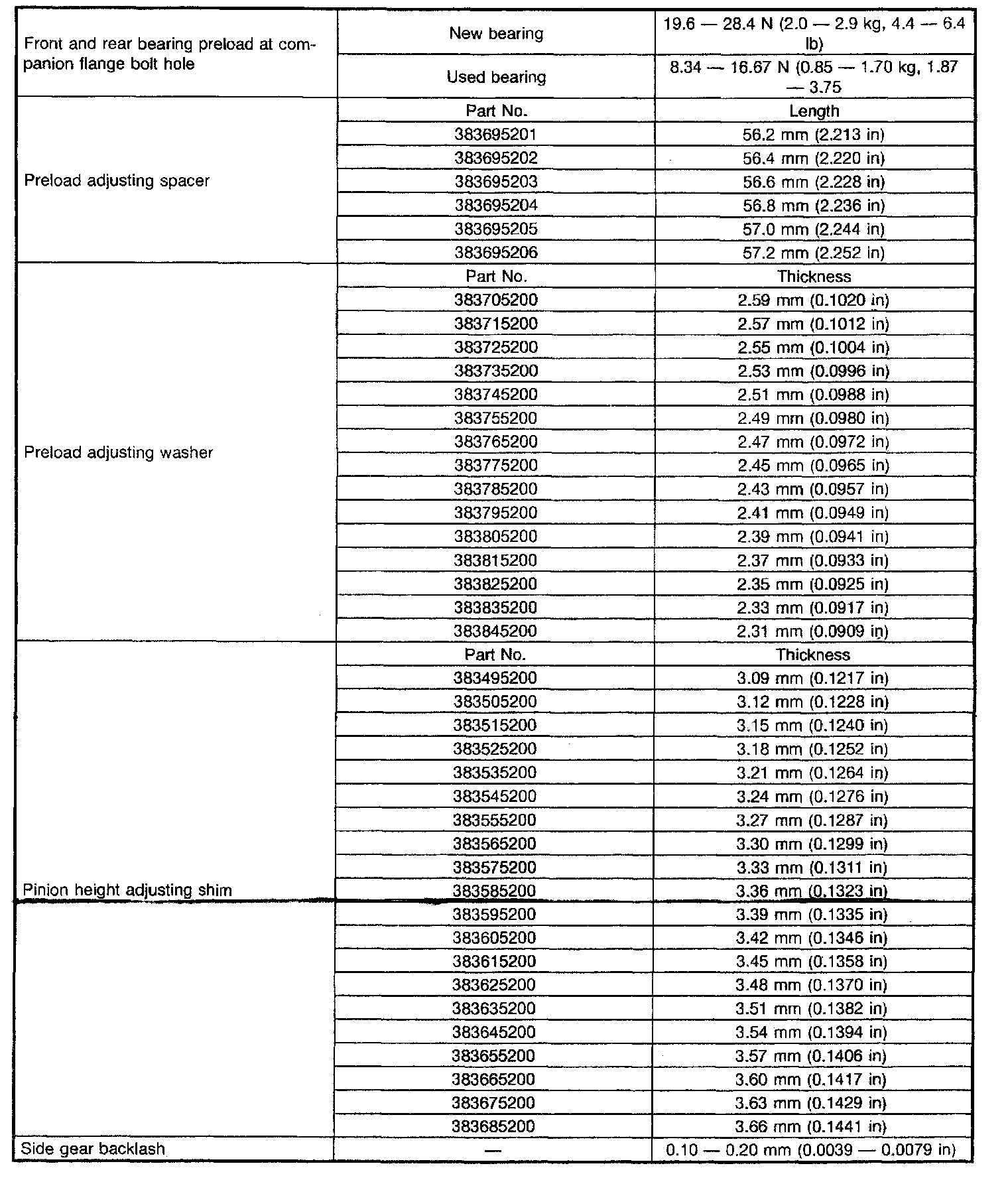

Rear Differential Service Data Thickness:
