Steering
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

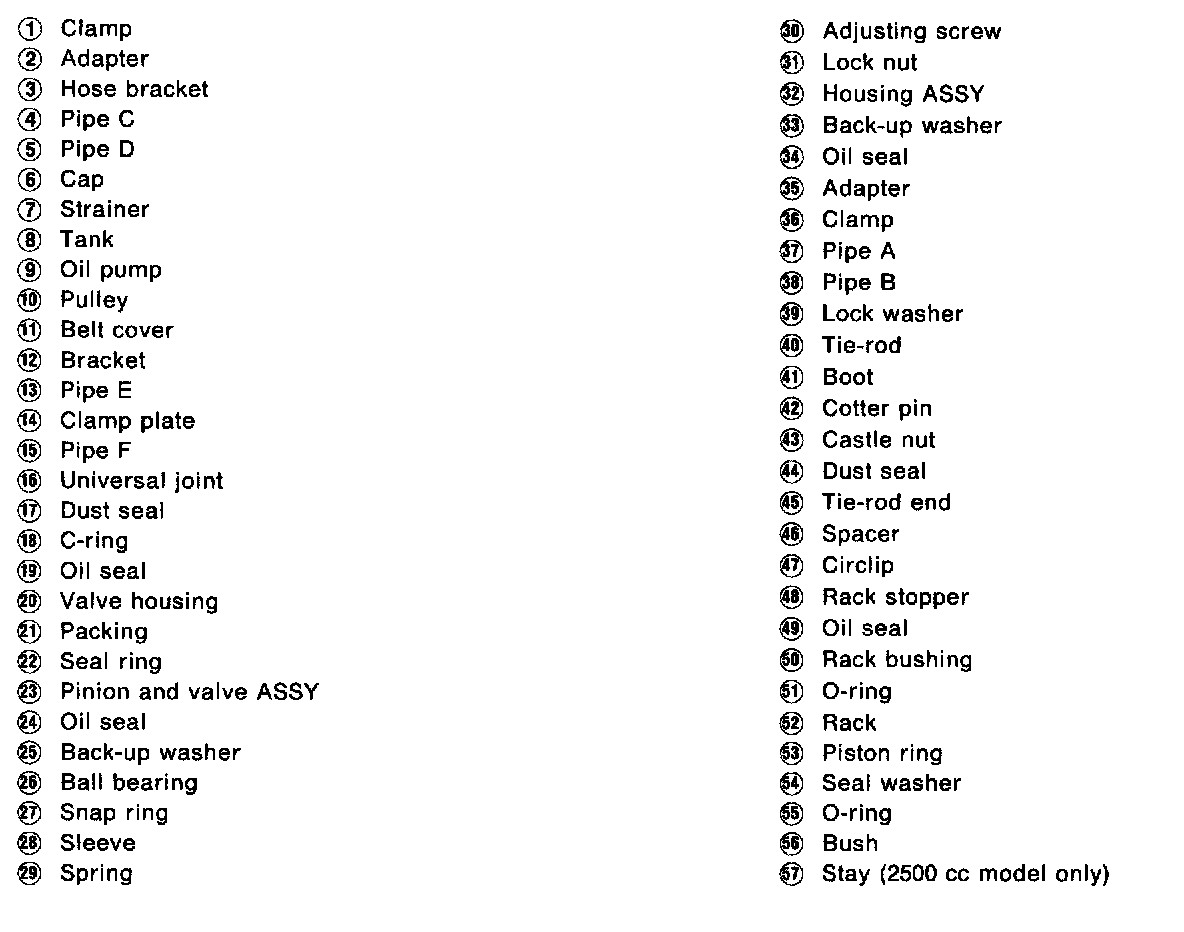

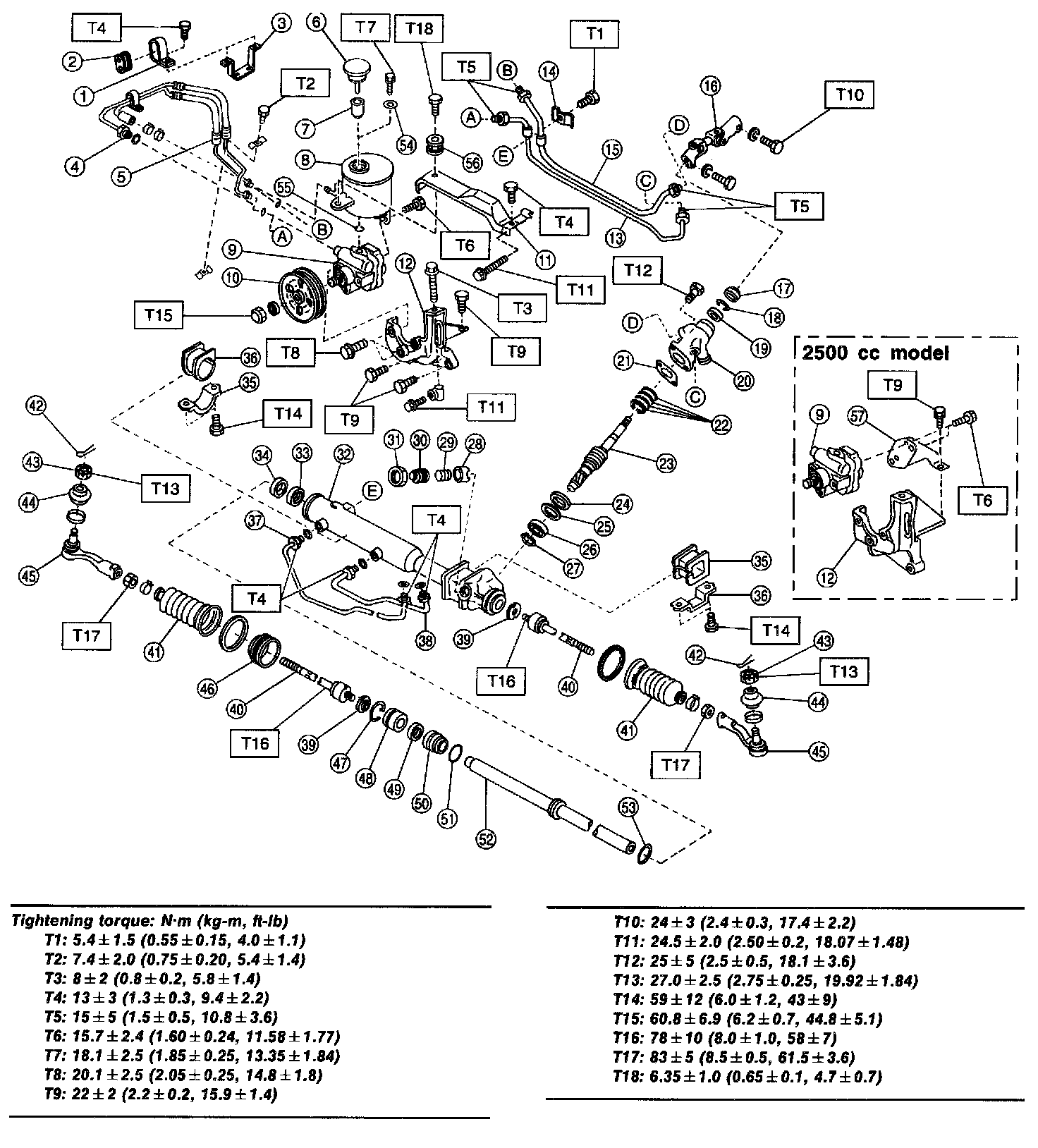

LHD Model (Part 1 Of 2):
LHD Model (Part 2 Of 2):
