Warning Light Circuit Testing: Notes
NOTE:
For additional voltage specifications, see ABS control unit pin voltage chart. See
Fig 1
. To identify ABS control unit terminals, see
Fig 2
.

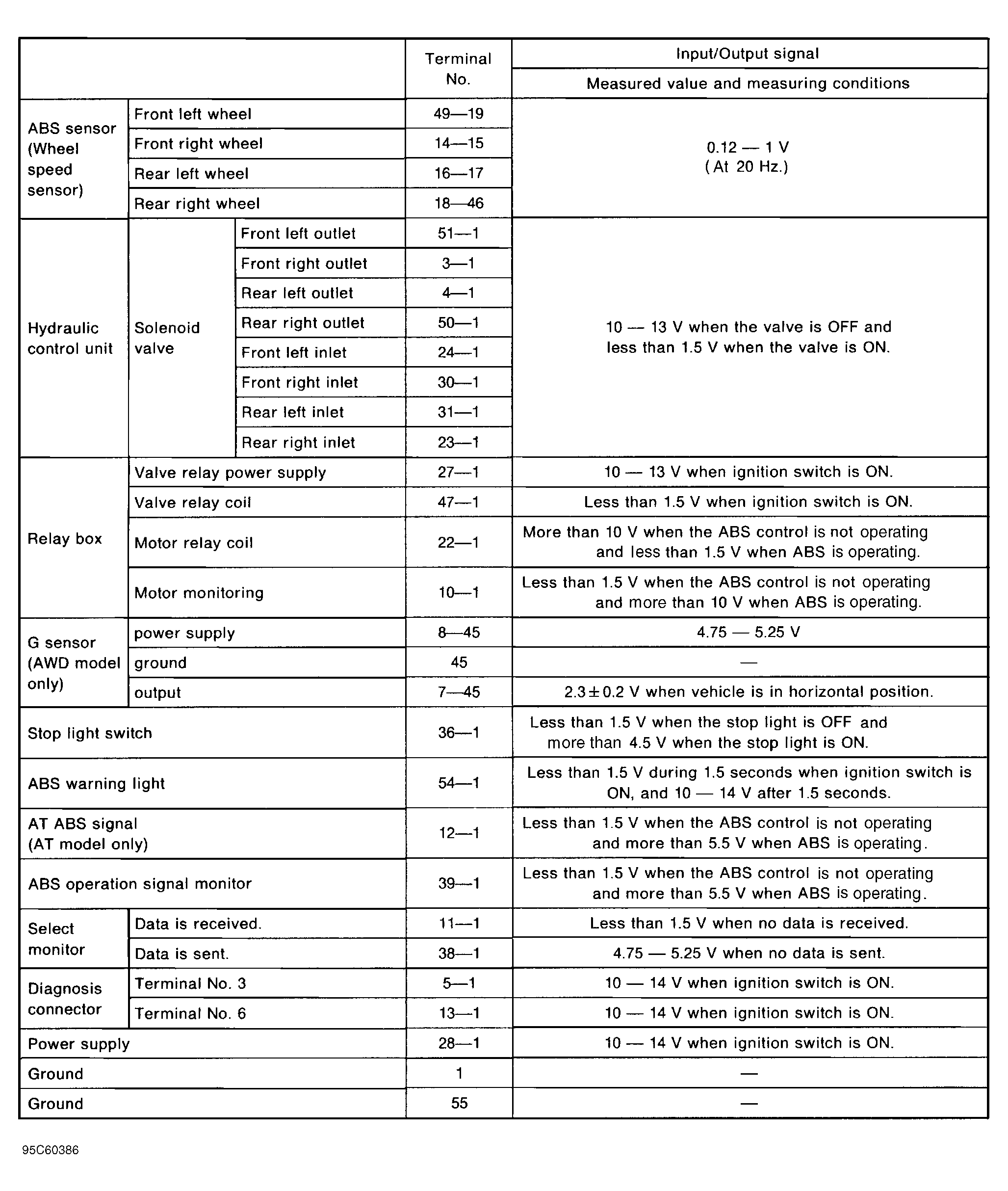

Fig 1: ABS Control Unit Pin Voltage Chart
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying ABS Control Unit Harness Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.
