M/T Technical Data

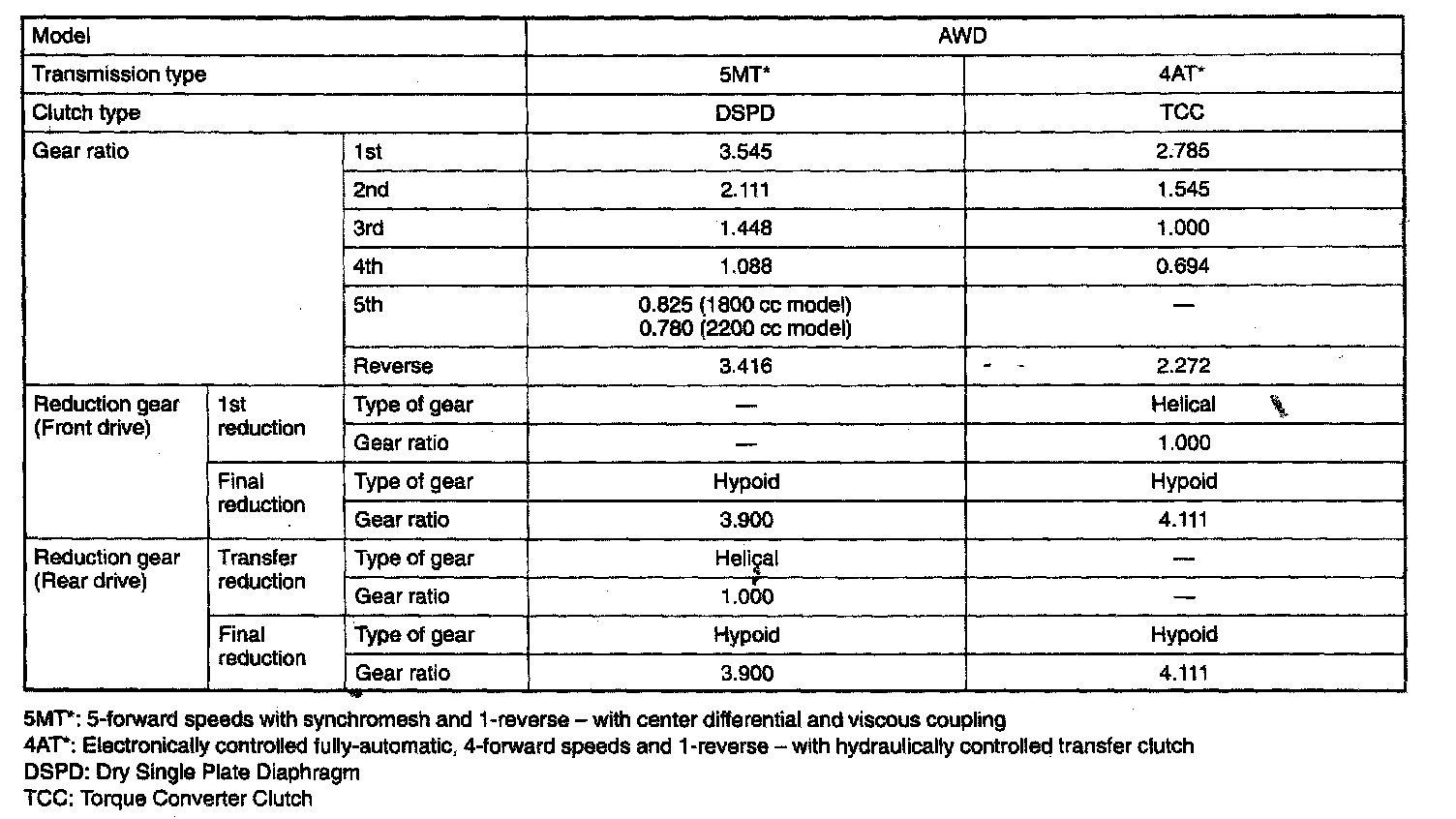

5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:




5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:




5-spd M/T/4-spd A/T, Transmission/Differential Gear Ratios (Sport Wgn):

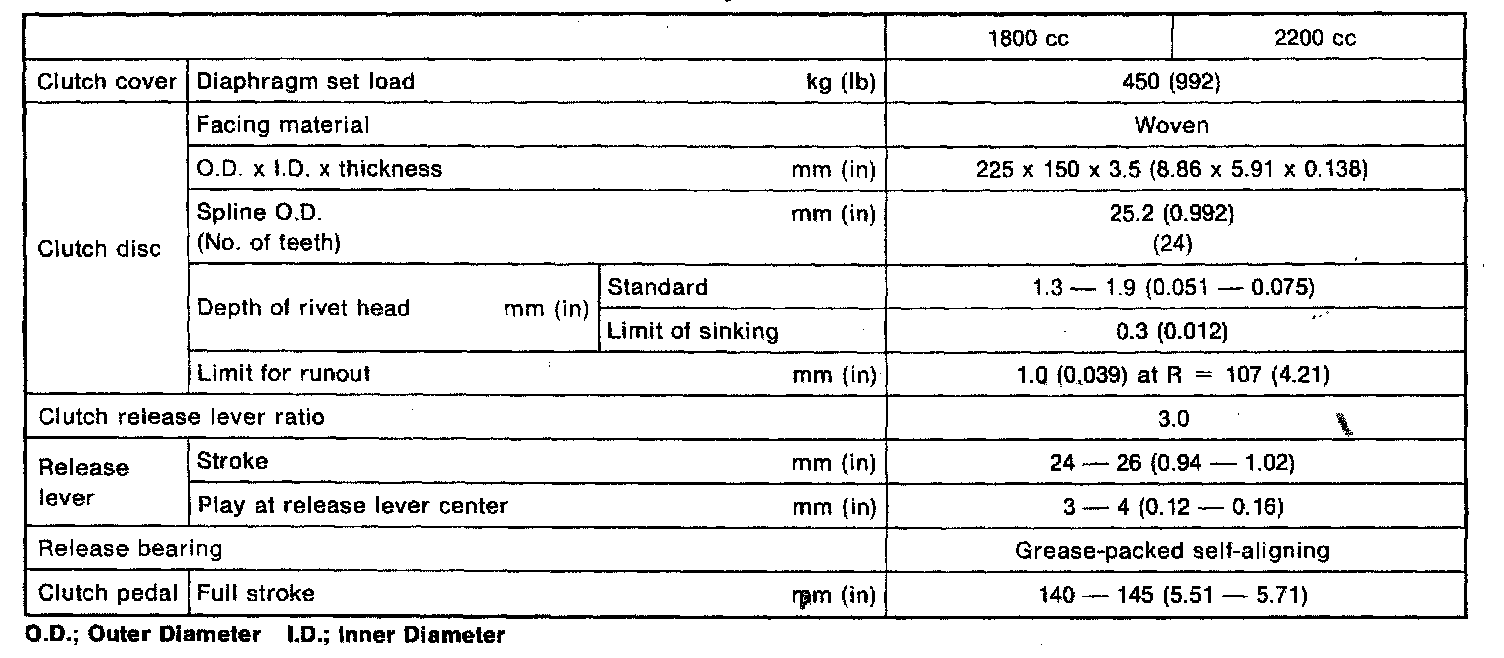

5-spd M/T, Transmission Clutch Service Data:

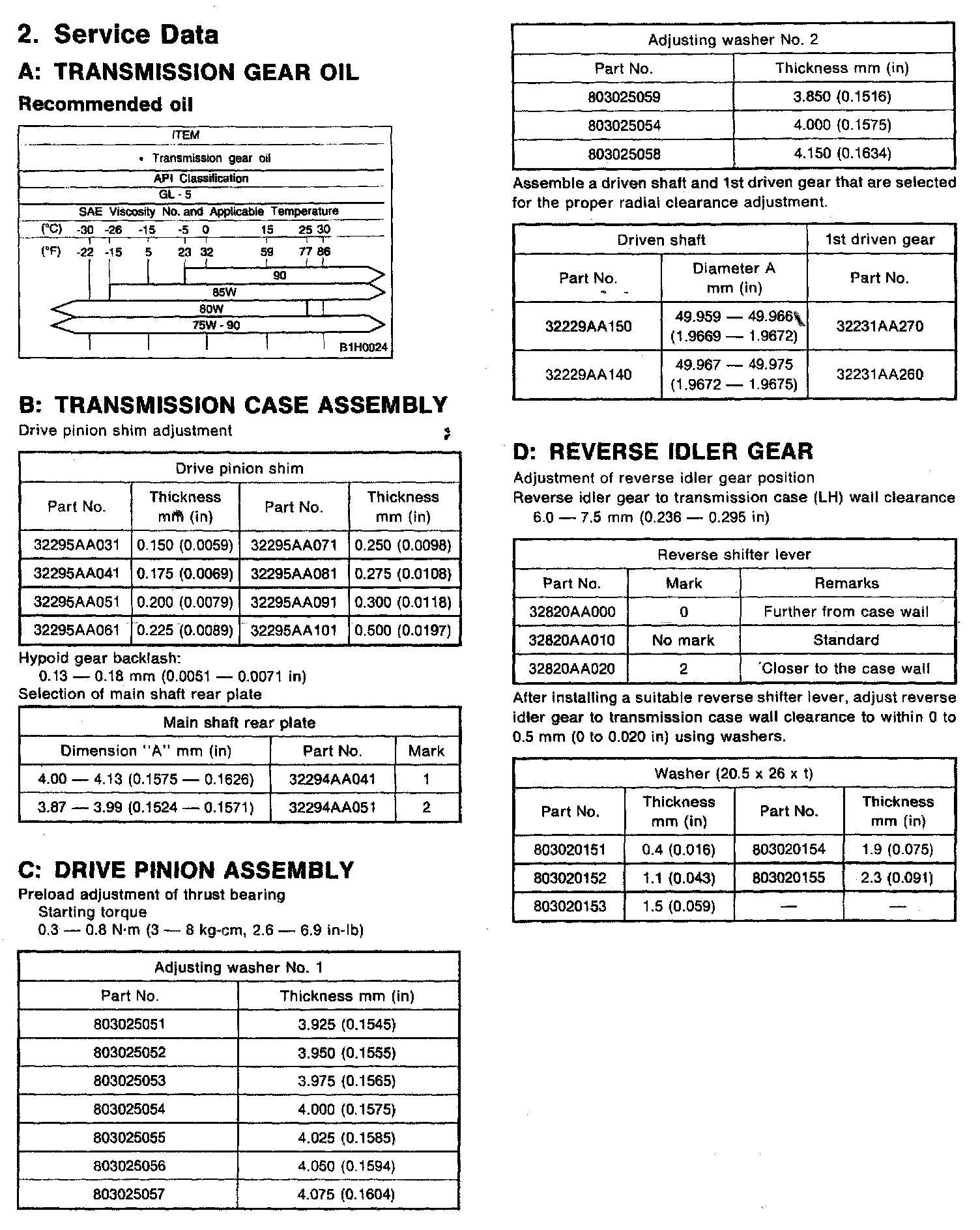

5-spd M/T, Transmission Case, Drive Pinion & Reverse Idler Gear:

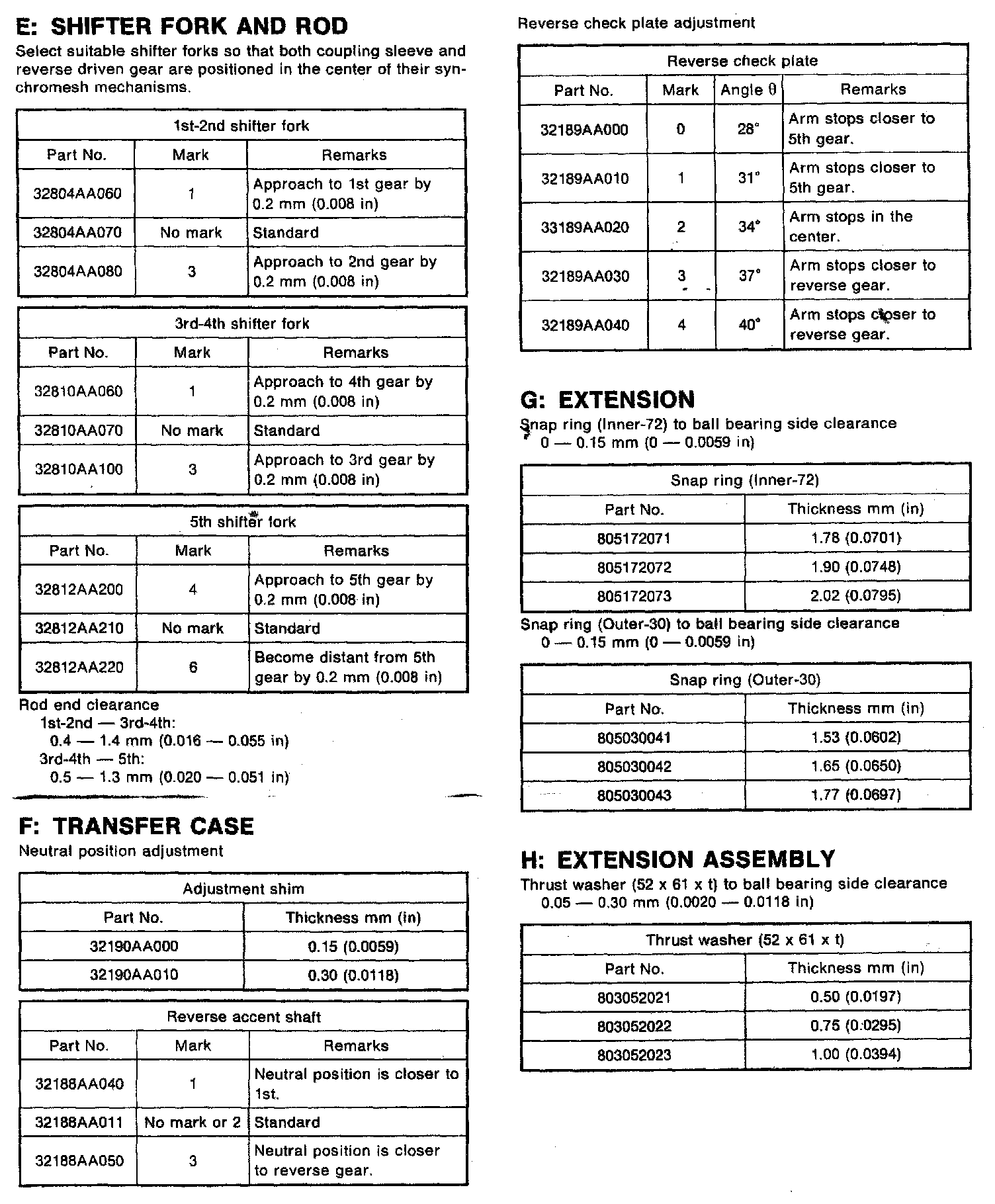

5-spd M/T, Shifter Fork And Rod, Transfer Case & Extension Assembly:
