Differential Technical Data

AWD System Rear Final Reduction Gear Ratio:

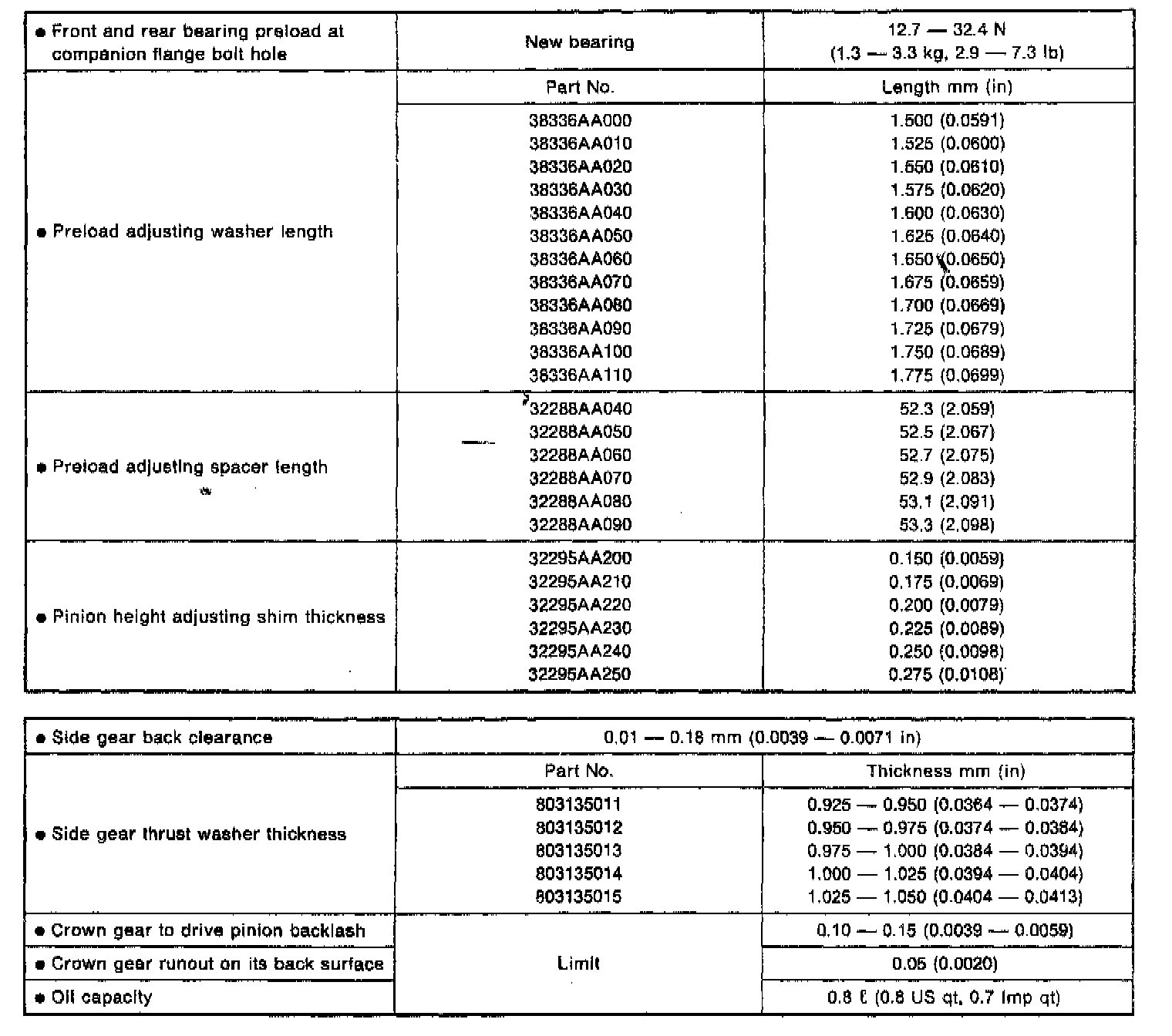

Differential Service/Overhaul Data:
