A/T Technical Data

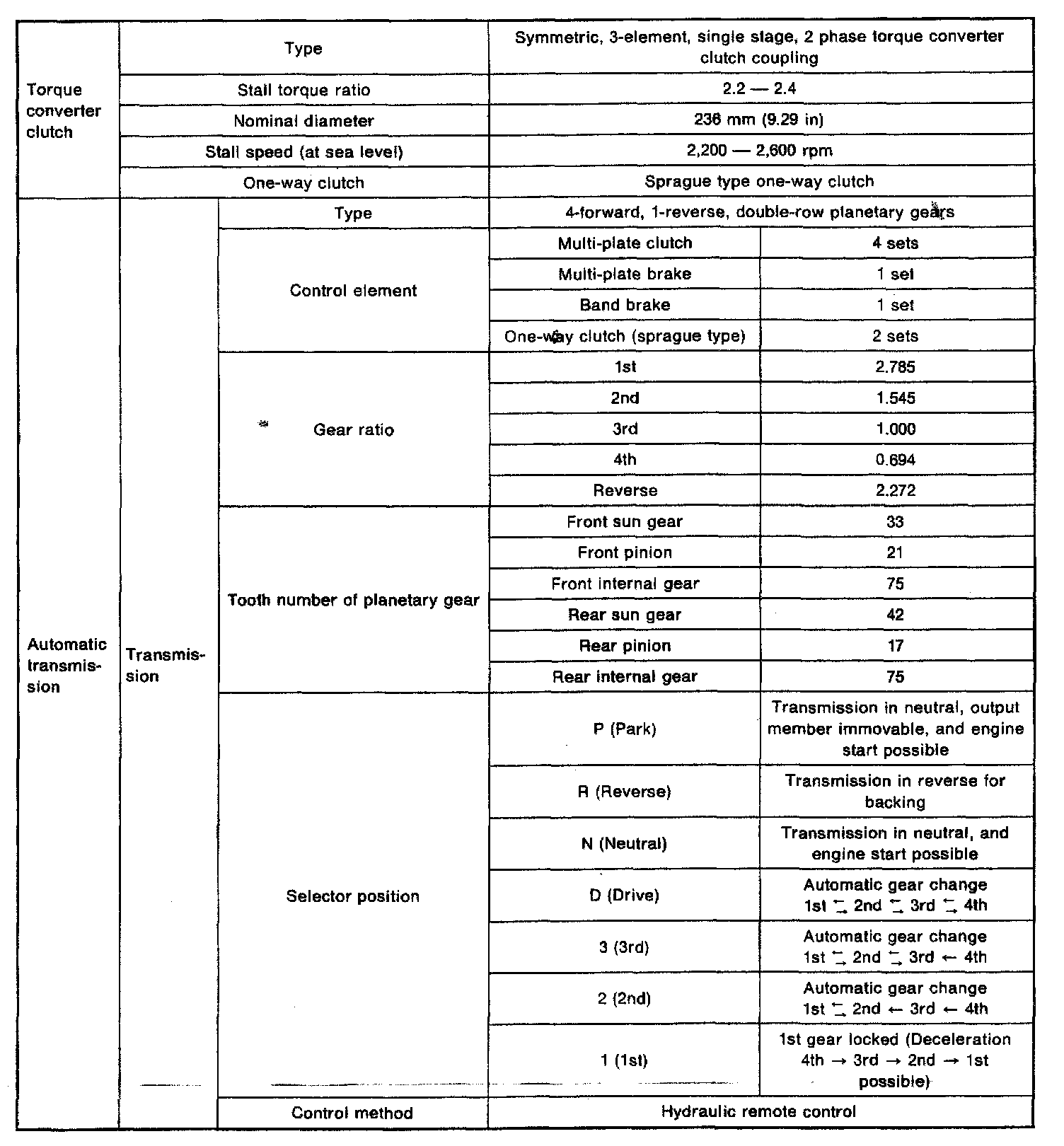

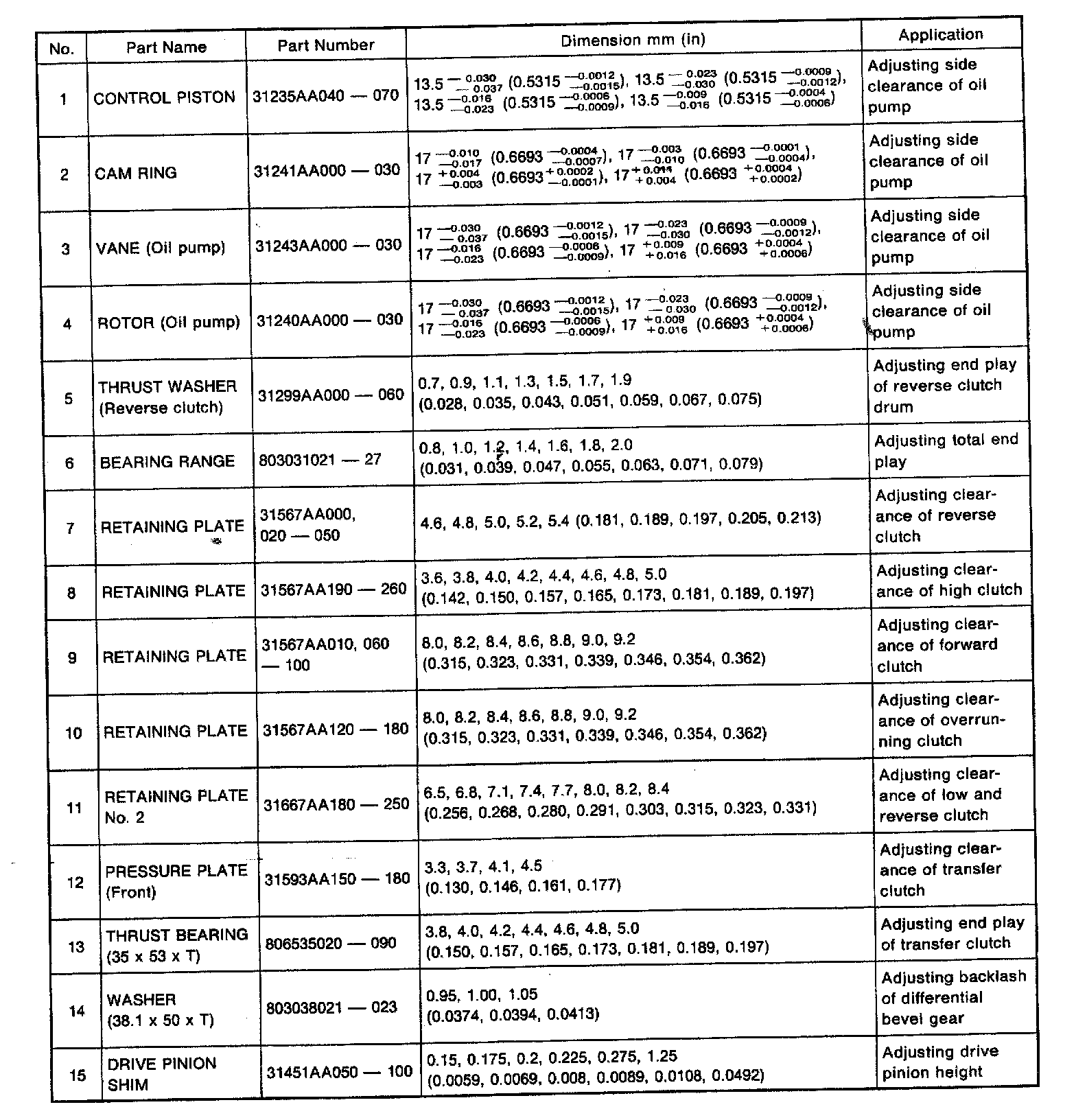

4-spd A/T, Transmission Service Data:

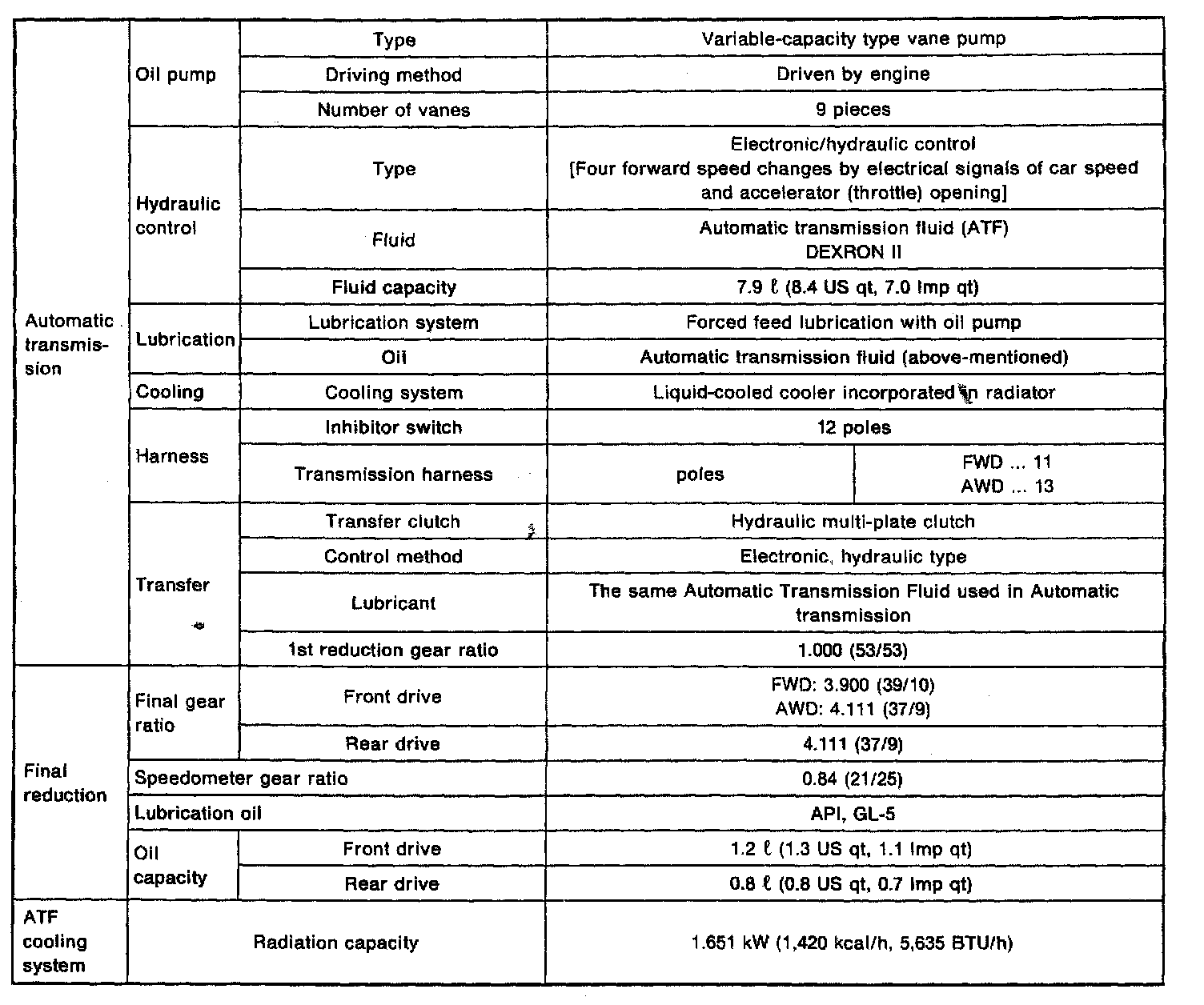

4-spd A/T, Transmission & Final Reduction:





4-spd A/T, Transmission Dimension & Application:

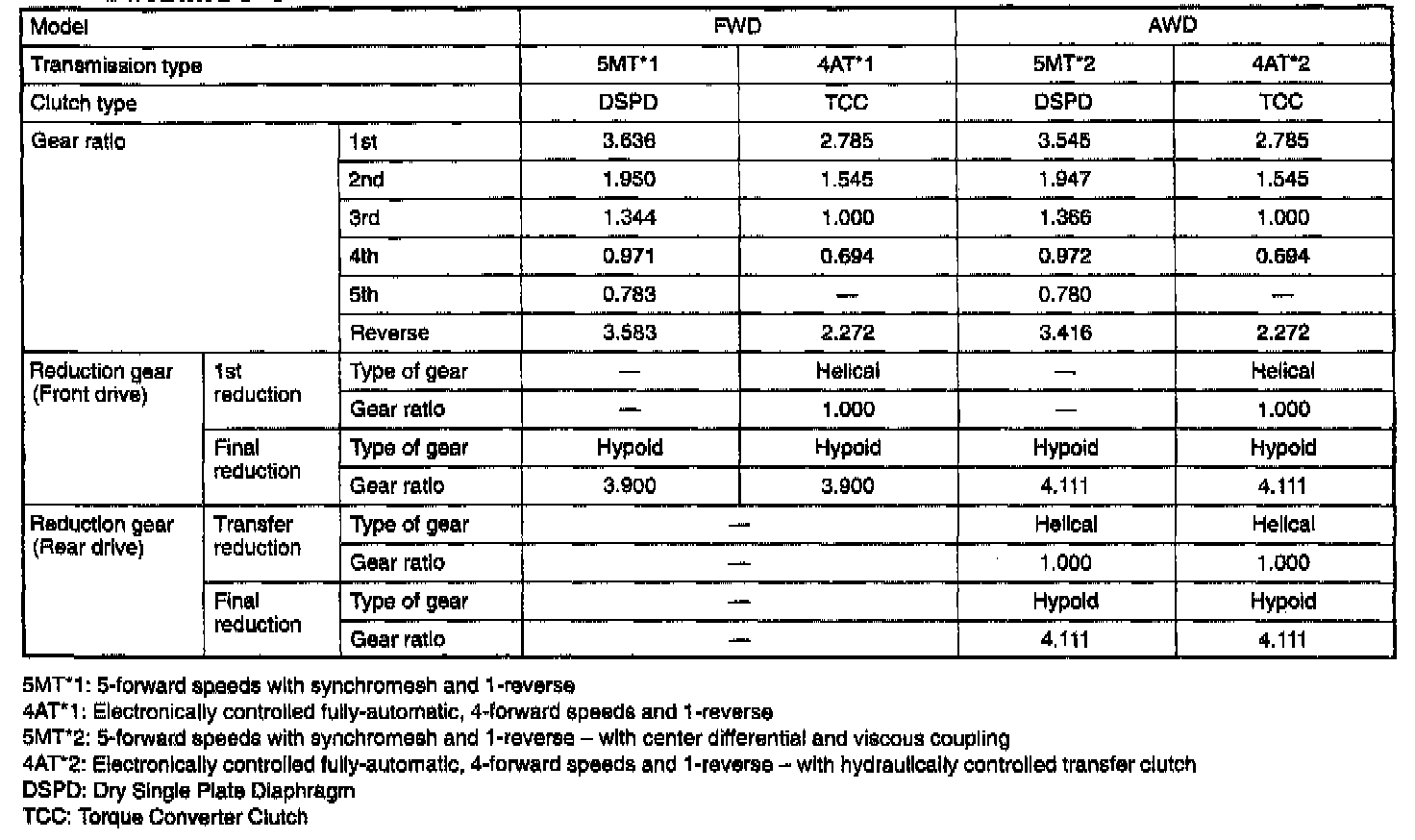

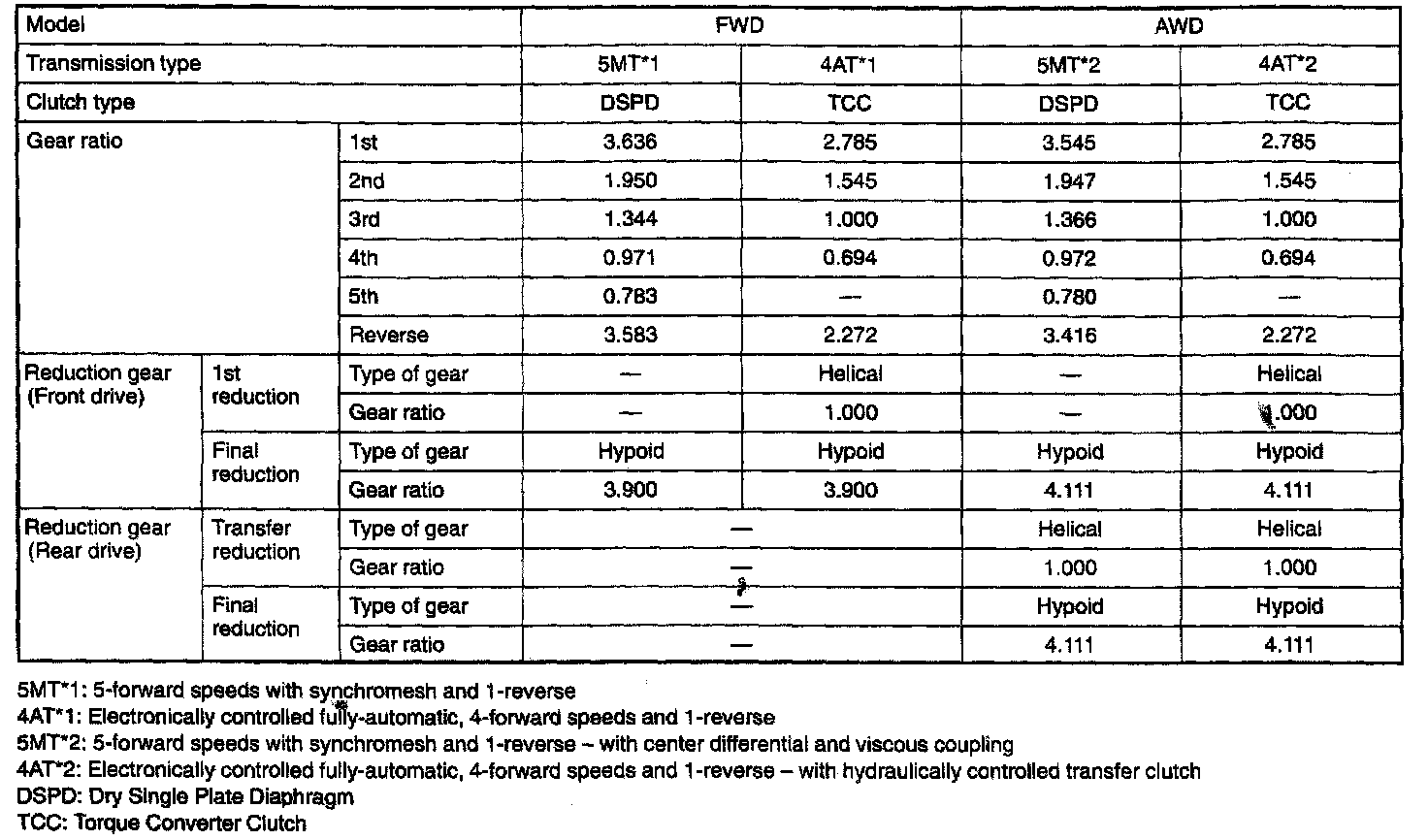

5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:




5-spd M/T, Transmission Service Data (Sport Wagon):
