General Diagnostics Table

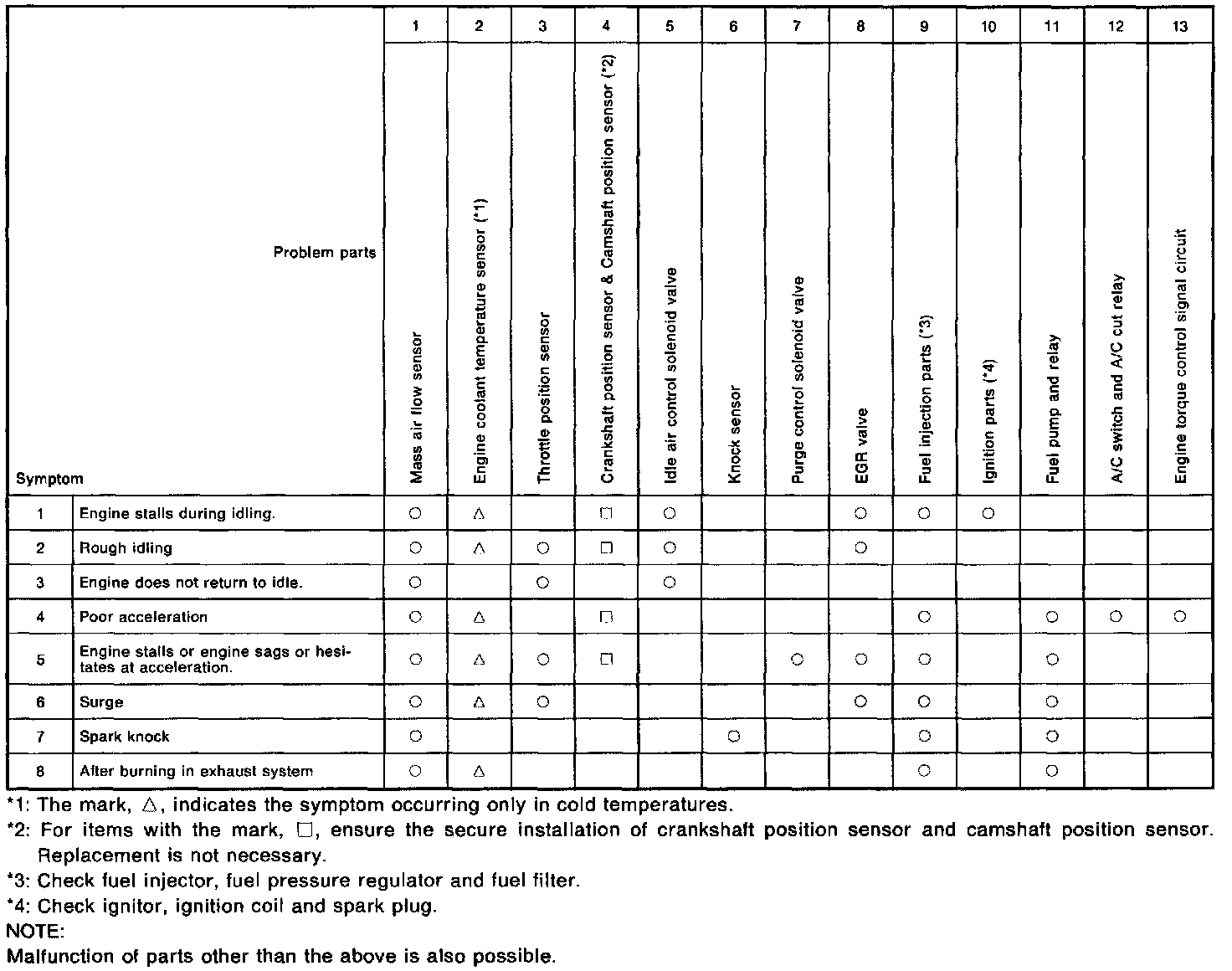

GENERAL DIAGNOSTICS TABLE FOR ENGINE

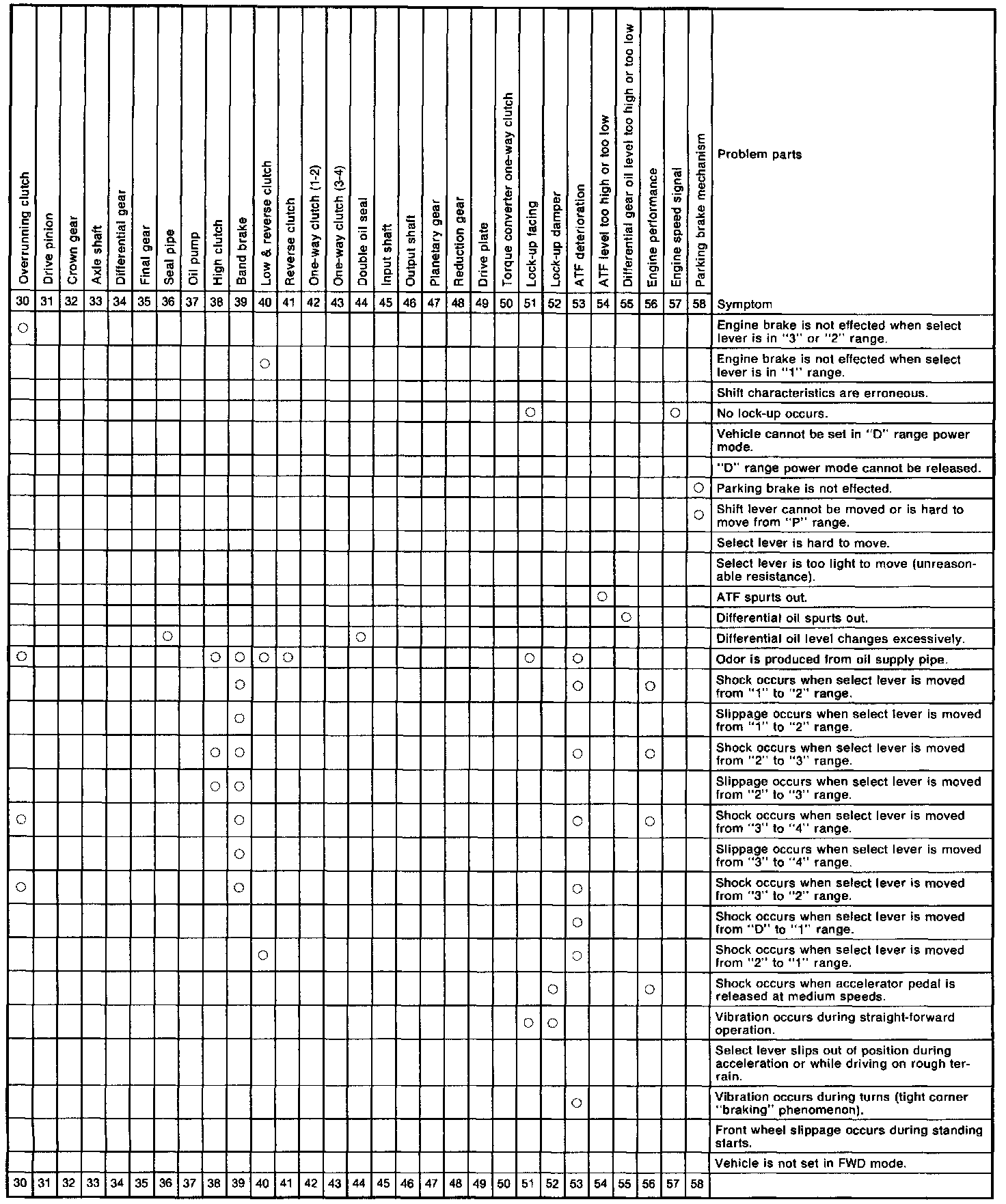

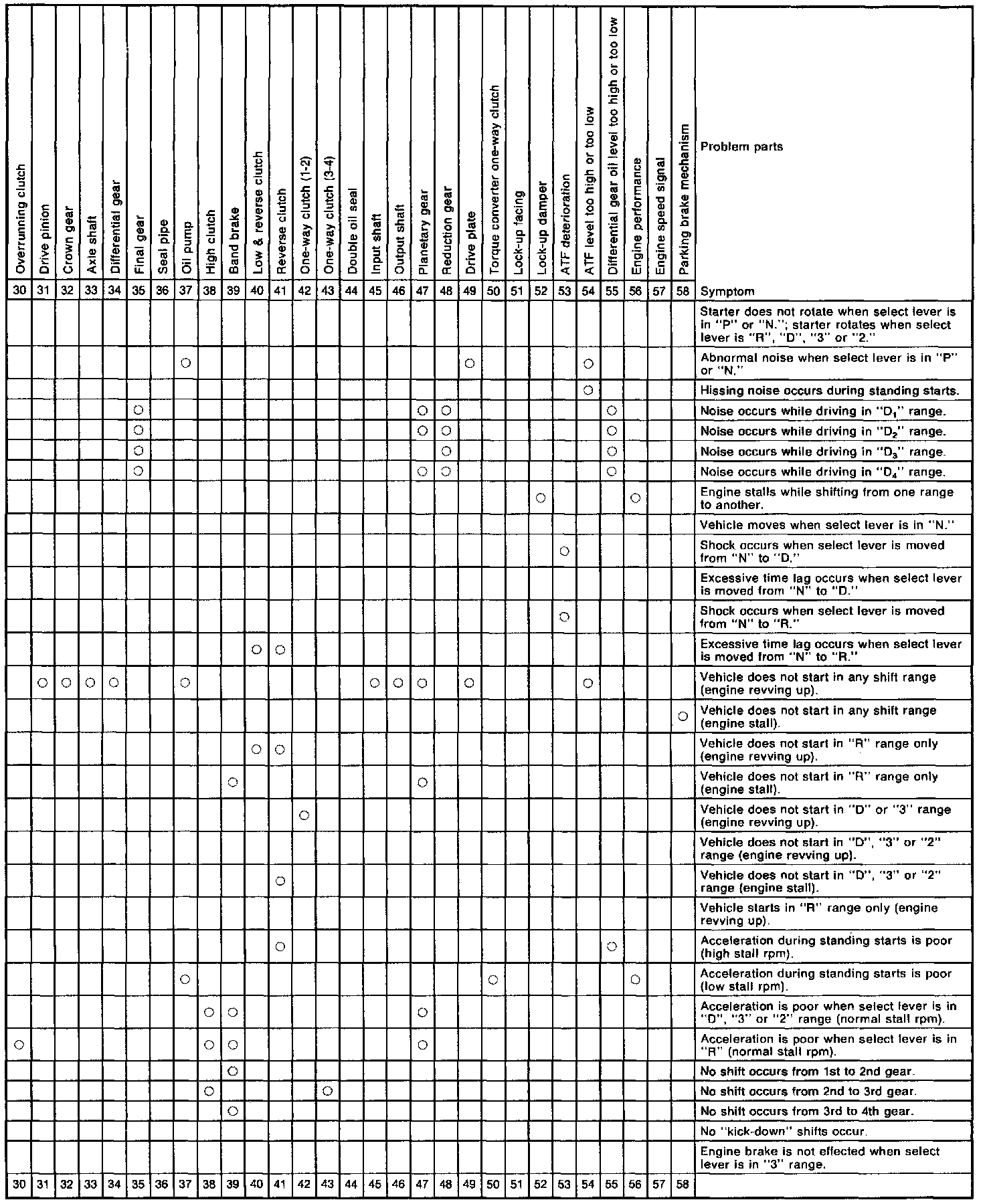

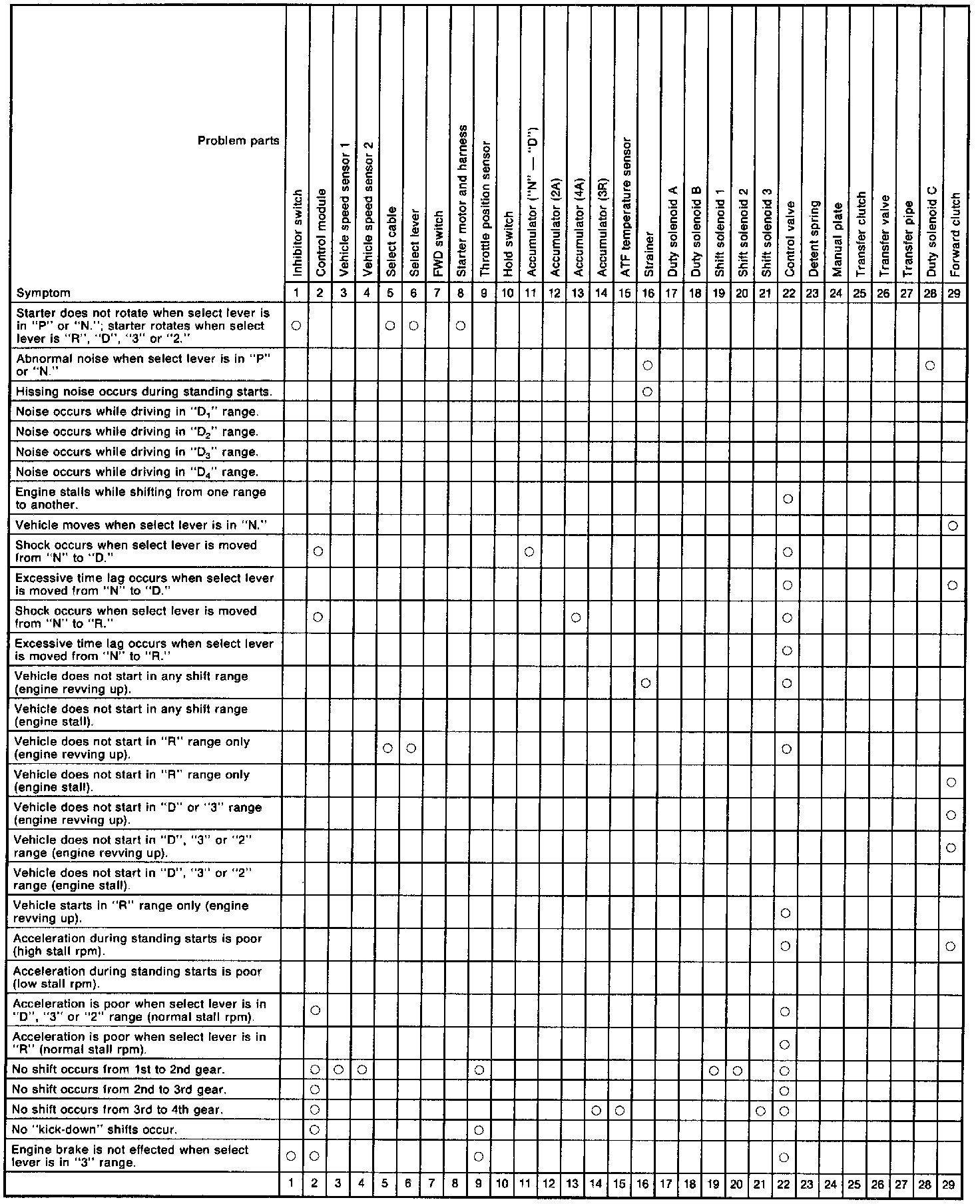

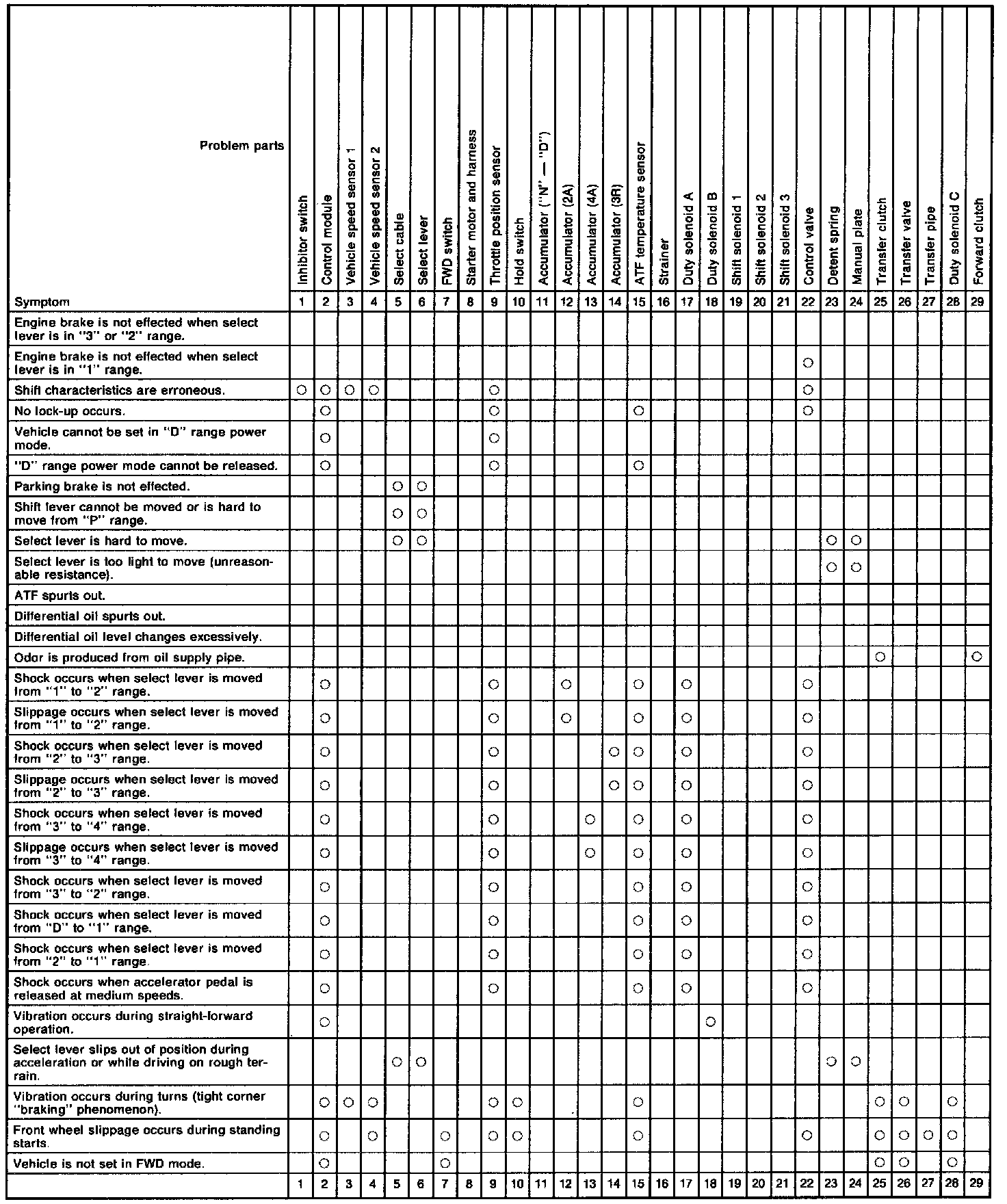

GENERAL DIAGNOSTICS TABLE FOR AUTOMATIC TRANSMISSION
