Electronic Brake Control Module: Testing and Inspection

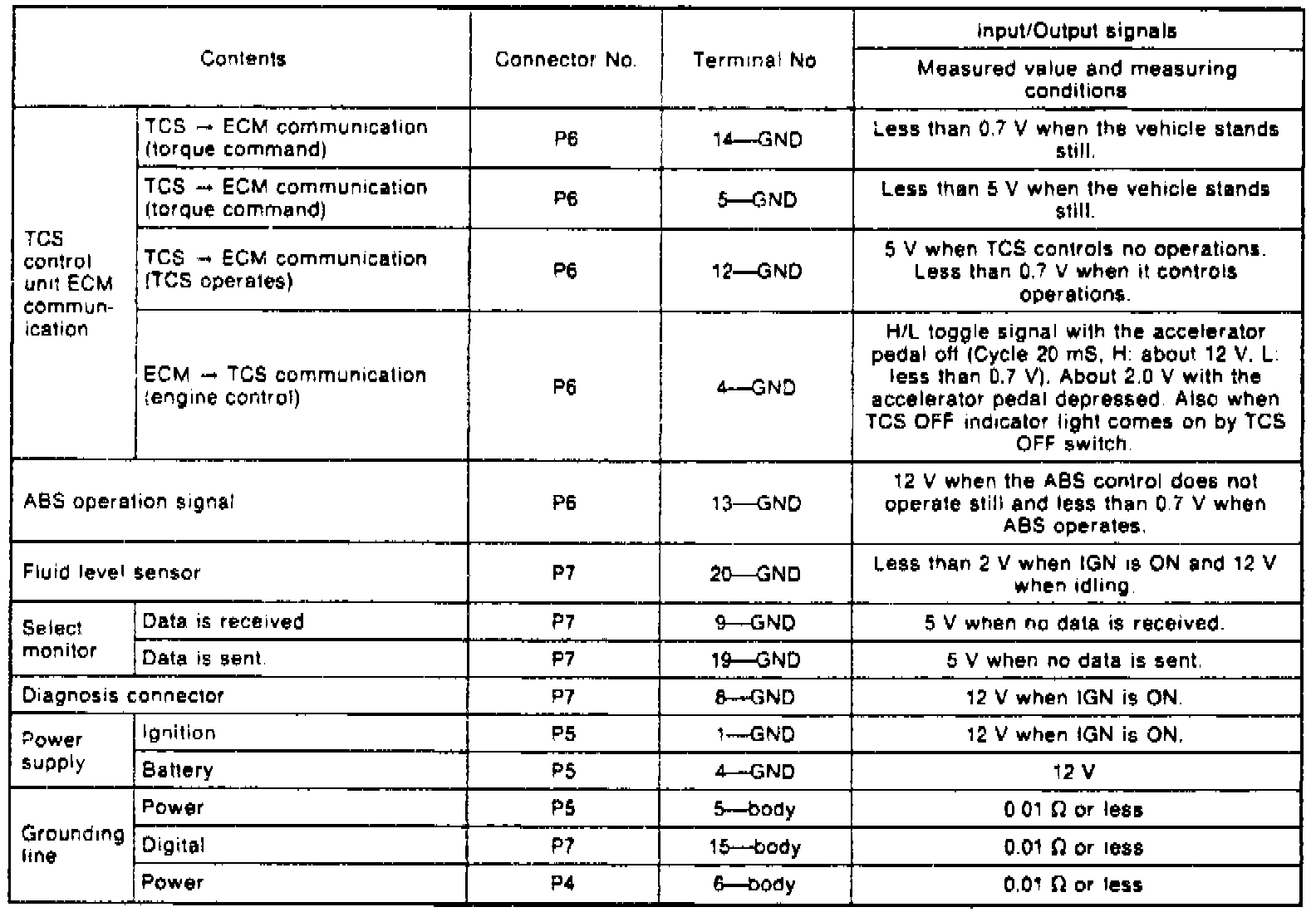

Fig. 11 ABS/TCS Control Module Pin Voltage Specifications (Part 1 Of 2):

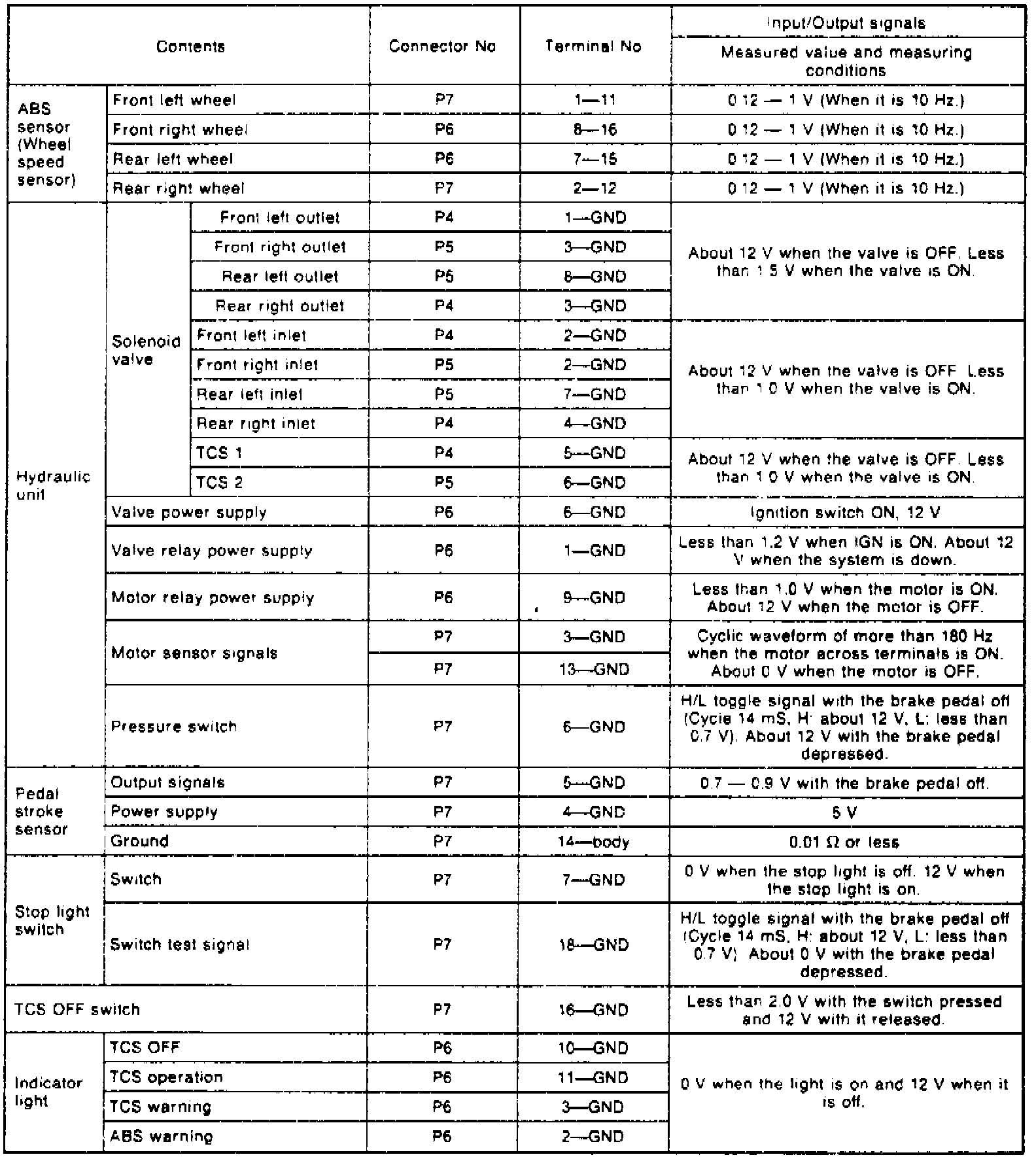

Fig. 11 ABS/TCS Control Module Pin Voltage Specifications (Part 2 Of 2):
Refer to Fig. 11, for control module input/output voltage signals.
