Cruise Control Applications (SSHU 1195-08)

Publication date: 1995-11-01
Reference number: SSHU 1195-08

CRUISE CONTROL APPLICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSHU 1195-08, Date of Issue: November, 1995

1995-96 SUBARU IMPREZA & LEGACY CRUISE CONTROL APPLICATIONS

Model(s): 1995-96 Subaru Impreza, Legacy

Category: Subaru Service Helpline Update

Group: Accessories & Electrical

Bulletin Number: SSHU 1195-08

Date: November, 1995

IMPREZA CRUISE CONTROL

Part number 83151AC020, Command Switch, and part number 83281AA000, clutch switch (for 2.2 M/T ONLY), are needed to convert old Impreza cruise controls for use in 1996 model year vehicles.

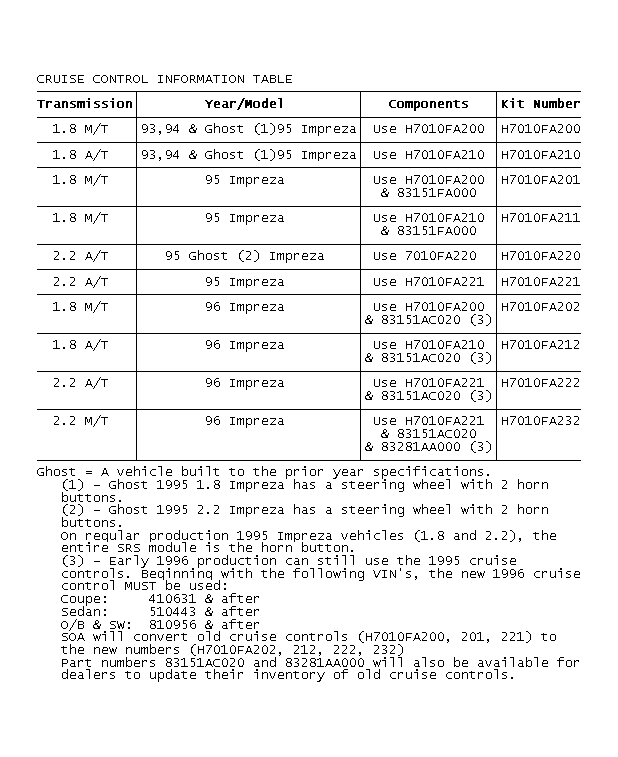

Fig 1: CRUISE CONTROL INFORMATION TABLE

LEGACY CRUISE CONTROL

The following parts are needed to convert a 1995 Legacy CruiseControl, P/N H7010AC001, to a 1996 Legacy Cruise Control, P/N H7010AC001:

83151AC020 Command Switch - Discard old Command Switch, 83151AC010.
24226KA050 Band - The Band is needed to secure the actuator cable to the accelerator cable because of the new routing of the actuator cable.

SOA will convert kits to 1996 MY and put them in stock. Almost all vehicles being produced until December come with factory installed cruise control. There are about 700 vehicles that will take part number H7010AC001. The switch will be available so dealers can update kits in their inventory.

If there are any questions concerning this, contact your Regional Parts Expeditor.
