Service

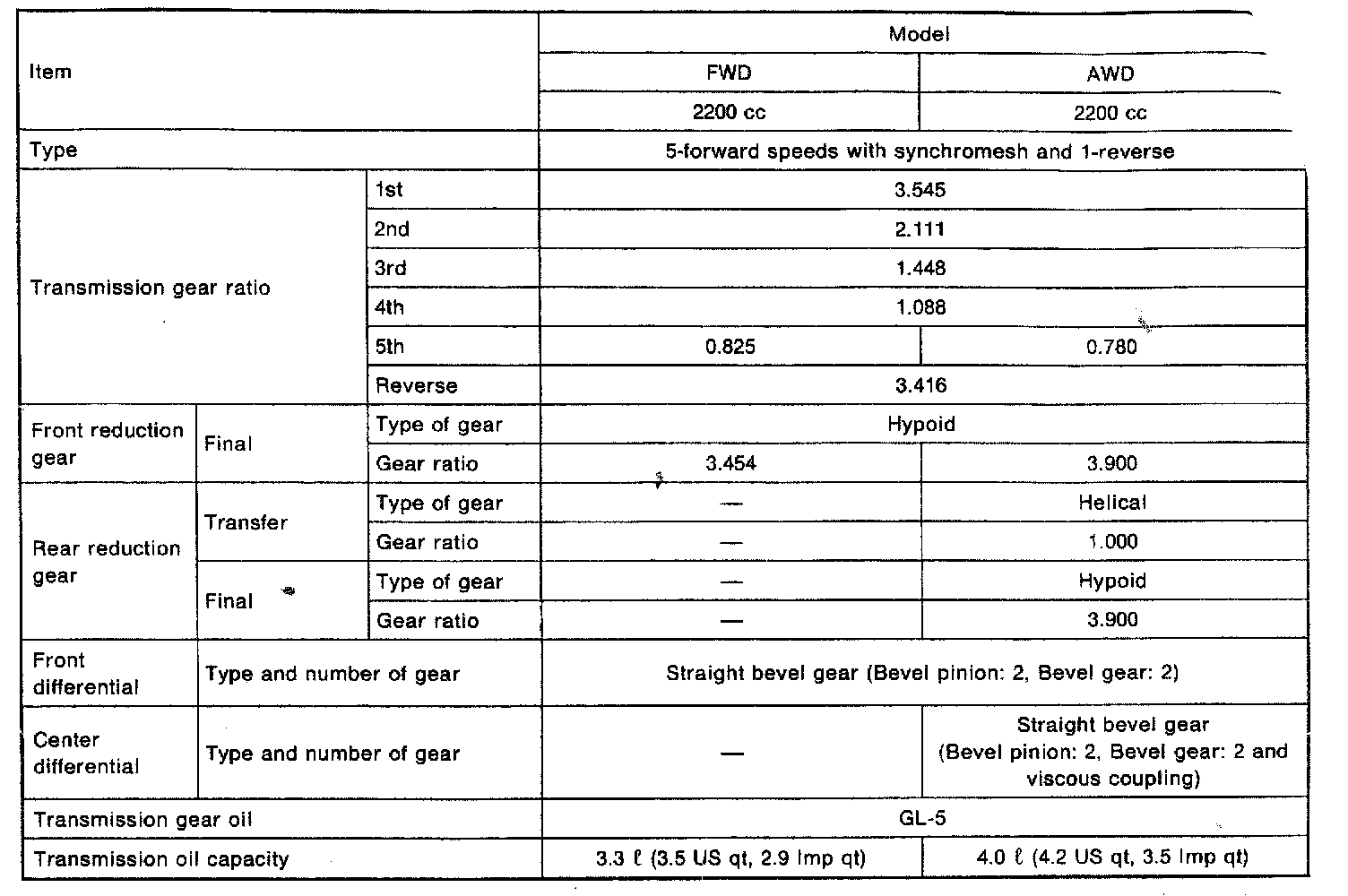

5-spd M/T, Transmission Service Data:

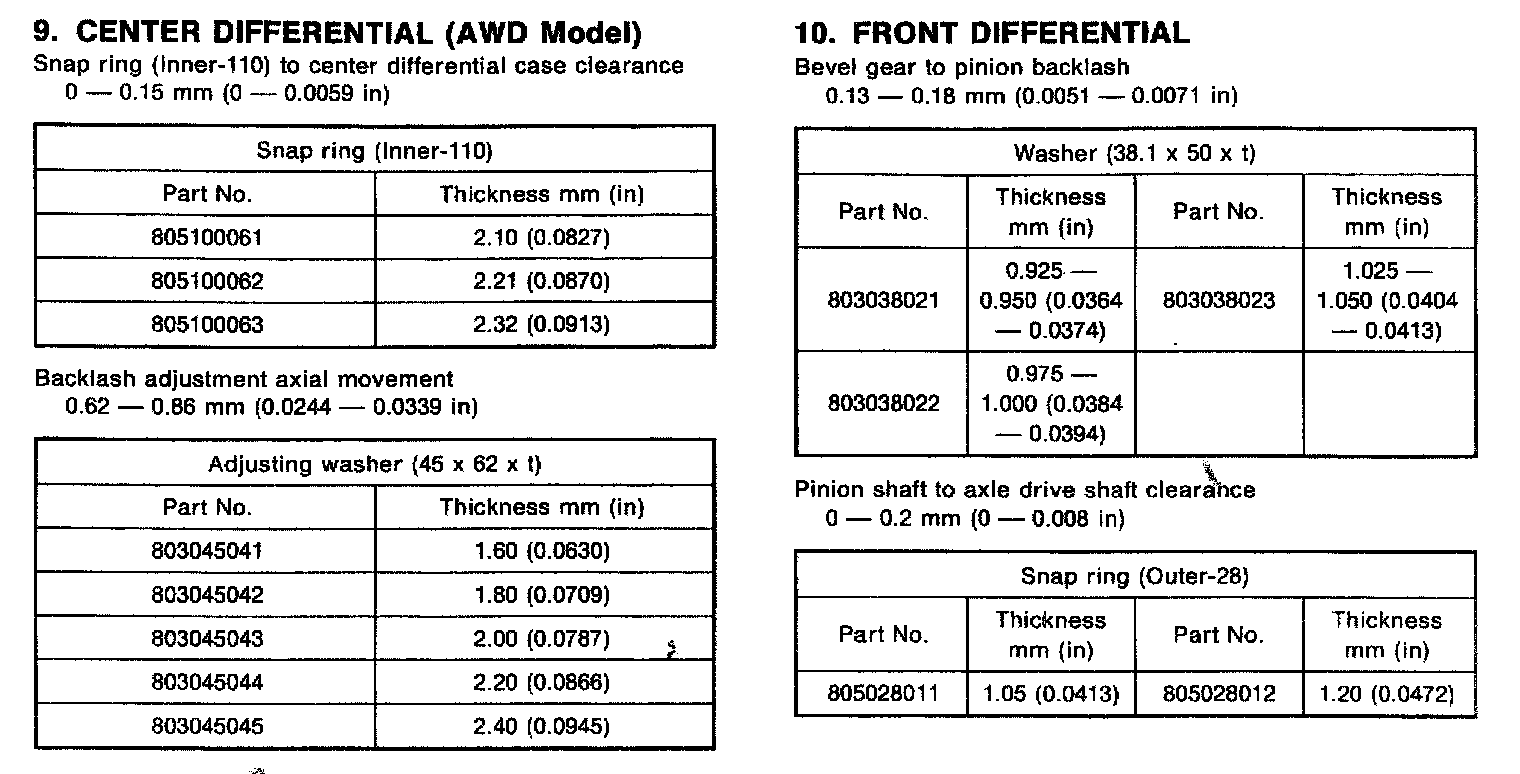

5-spd M/T, Center Differential (AWD) & Front Differential:





5-spd M/T, Transmission Extension, Transfer/Rear Case & Reverse Idler:

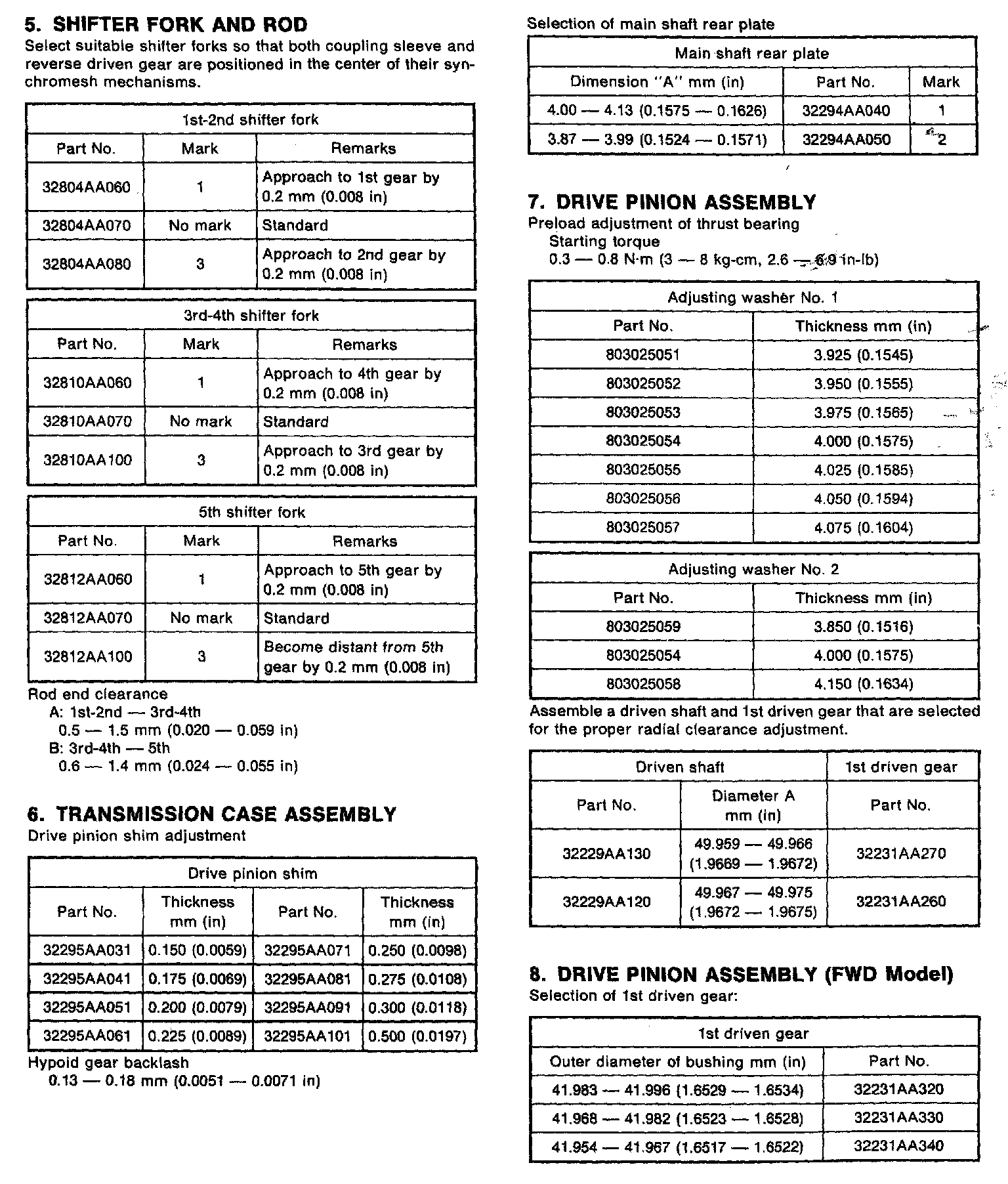

5-spd M/T, Shifter Fork And Rod, Transmission Case & Drive Pinion (FWD):
