Door Trim Panel: Notes
NOTE:
Use the following illustrations for removal & installation procedures: See
Fig 1
and
Fig 2
below.

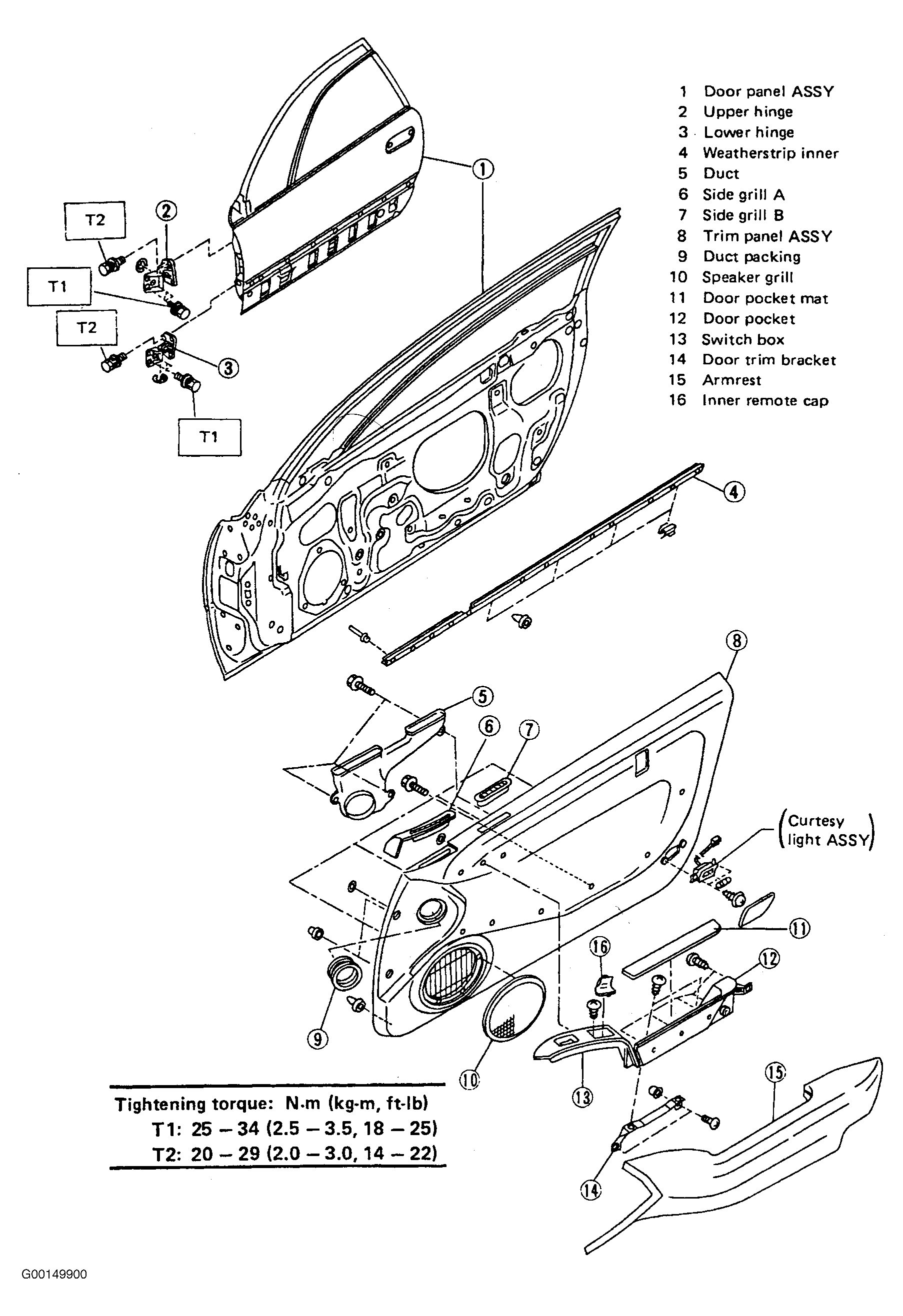

Fig 1: Exploded View of Door Panel Trim
Courtesy of SUBARU OF AMERICA, INC.

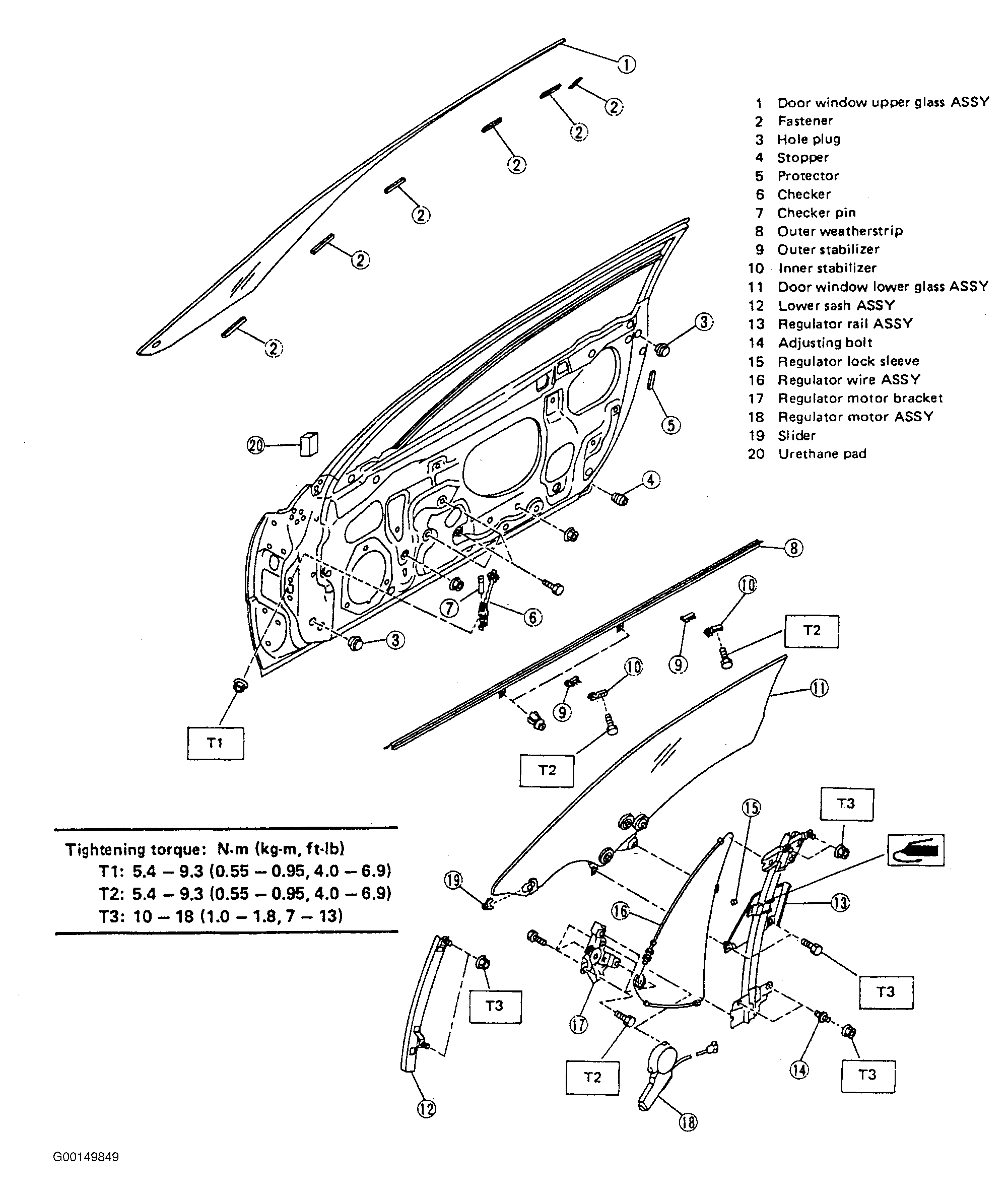

Fig 2: Exploded View of Door Glass & Regulator
Courtesy of SUBARU OF AMERICA, INC.
