NUMBER: 01-131-91


DATE: 12-16-91


APPLICABILITY SVX

SUBJECT: SVX SERVICE MANUAL SUPPLEMENT

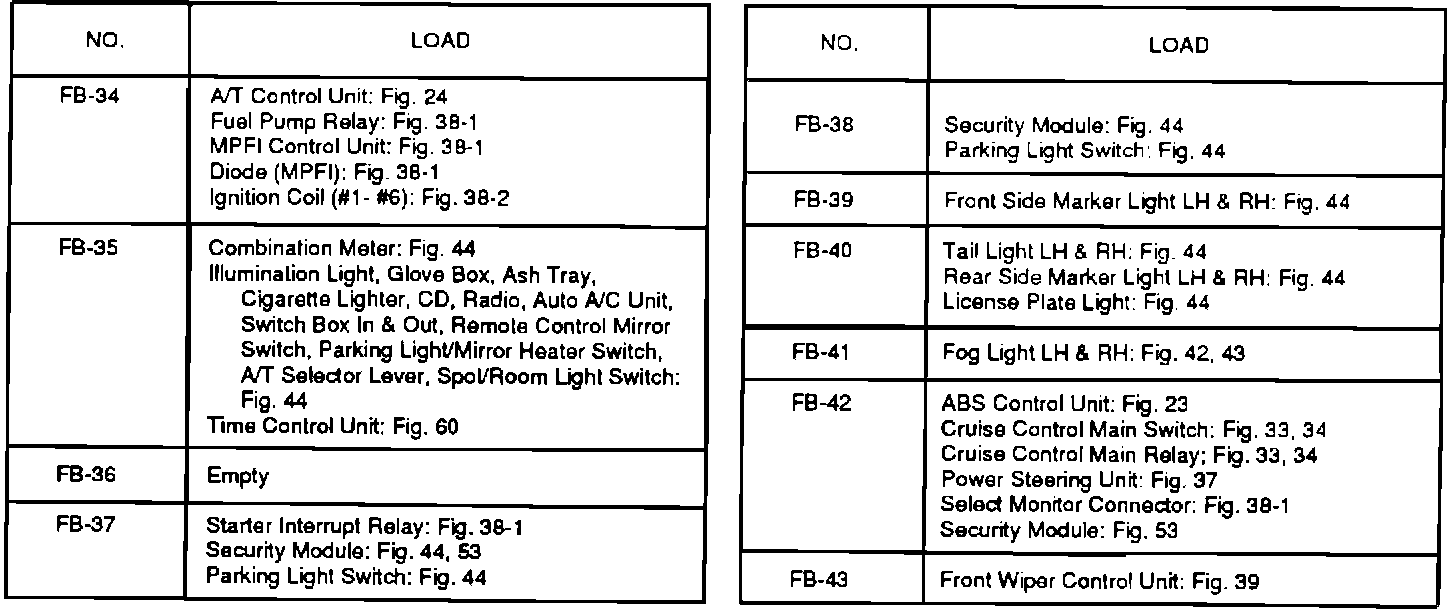

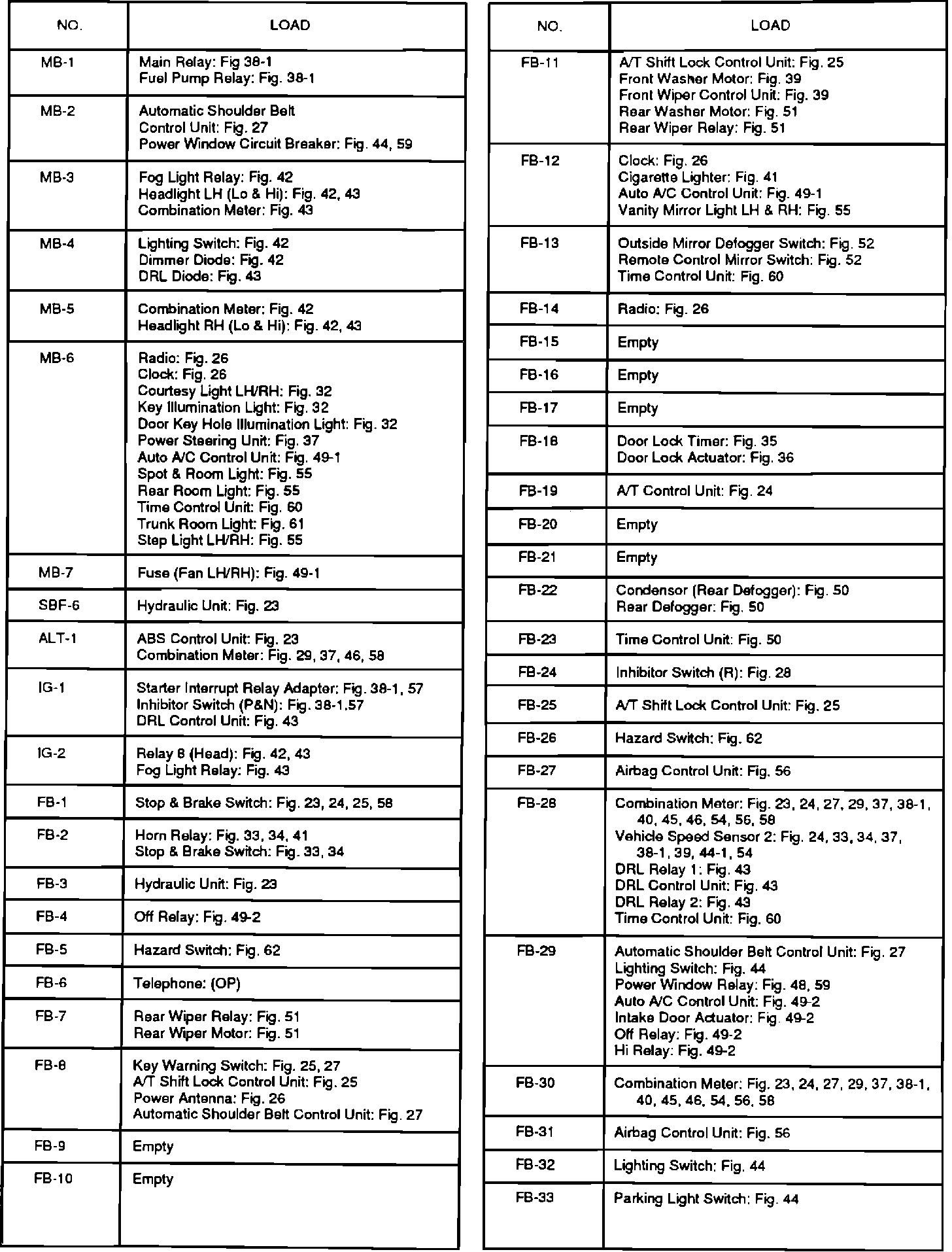

This Fuse Reference Chart is useful in diagnosing electrical problems, using the split half technique.

Please copy this material as necessary and keep it with your SVX Service Manual, Section 6-3.








WIRING DIAGRAM AND TROUBLESHOOTING
