Switch Functions

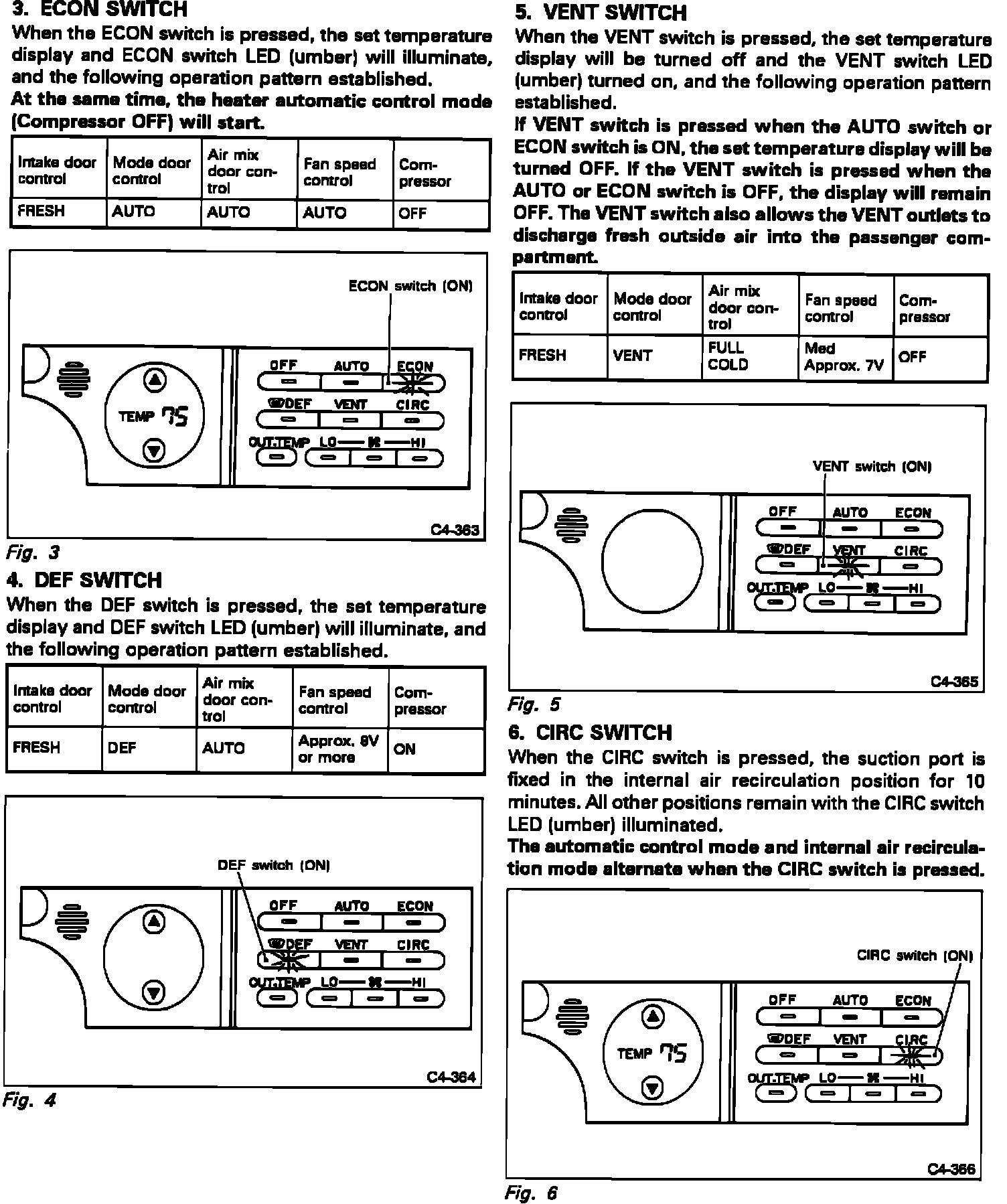

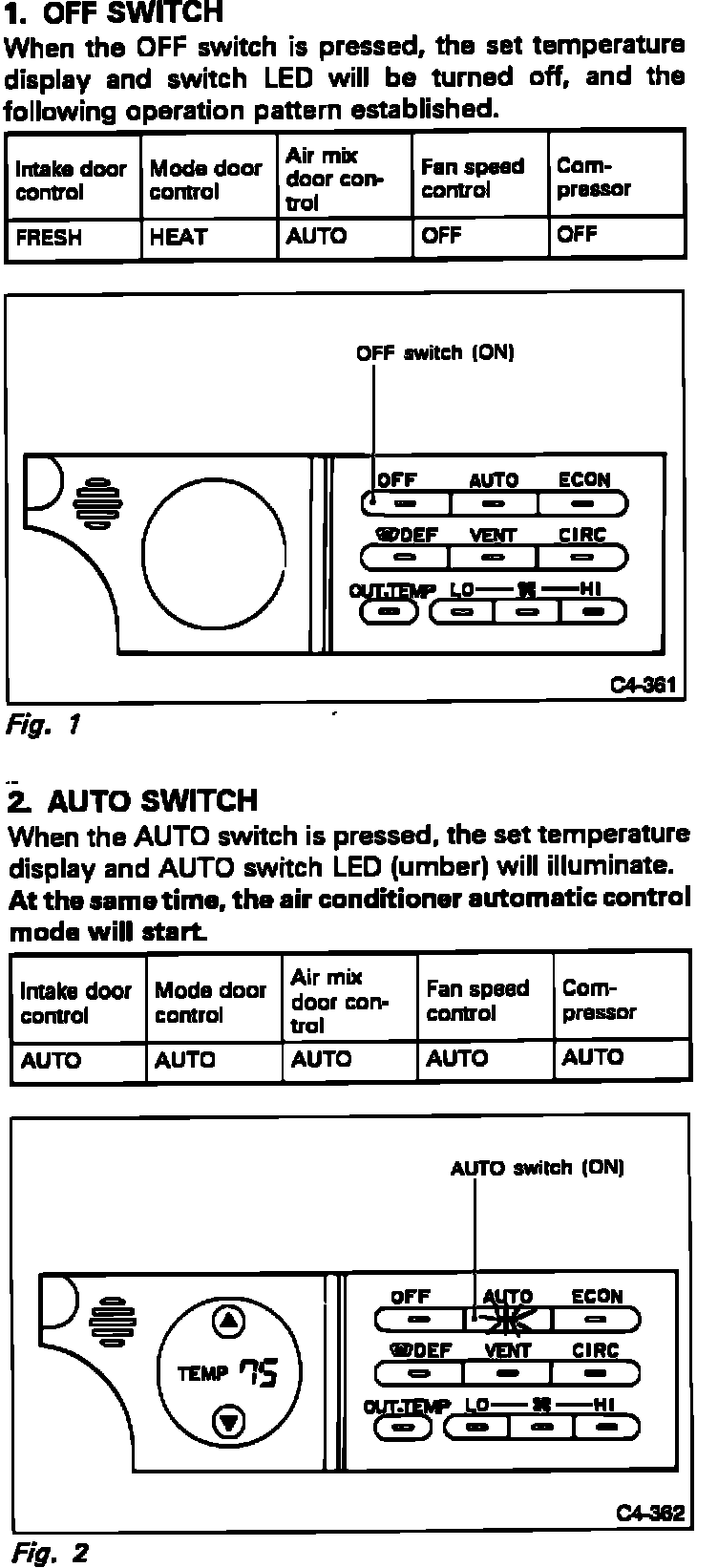

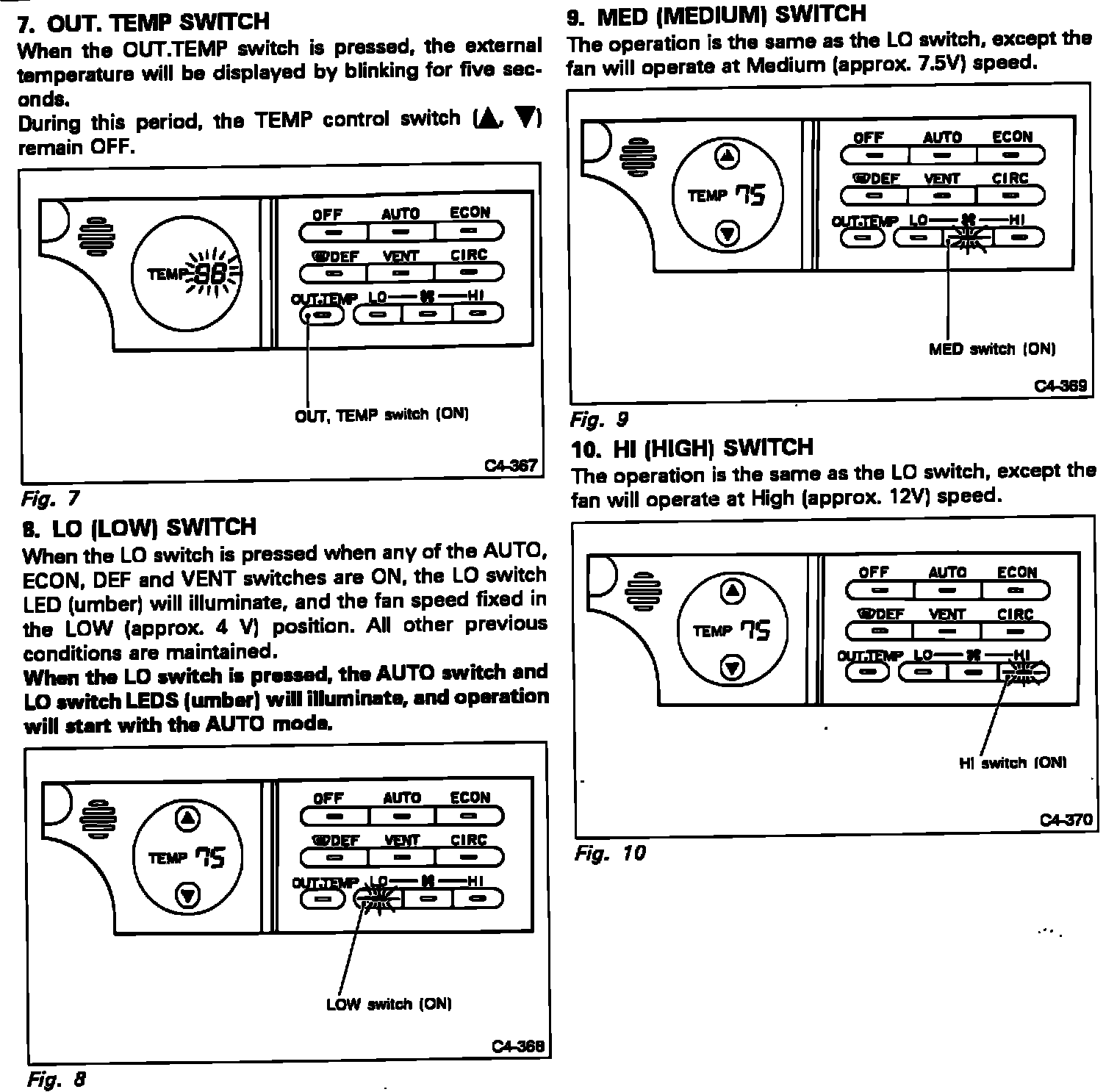

Switch Functions (Part 1):



Switch Functions (Part 2):



Switch Functions (Part 3):



Switch Functions (Part 4):
