Trouble Shooting Charts
Fig 1: A - Vibrating Pedal and Noise
Courtesy of SUBARU OF AMERICA, INC.

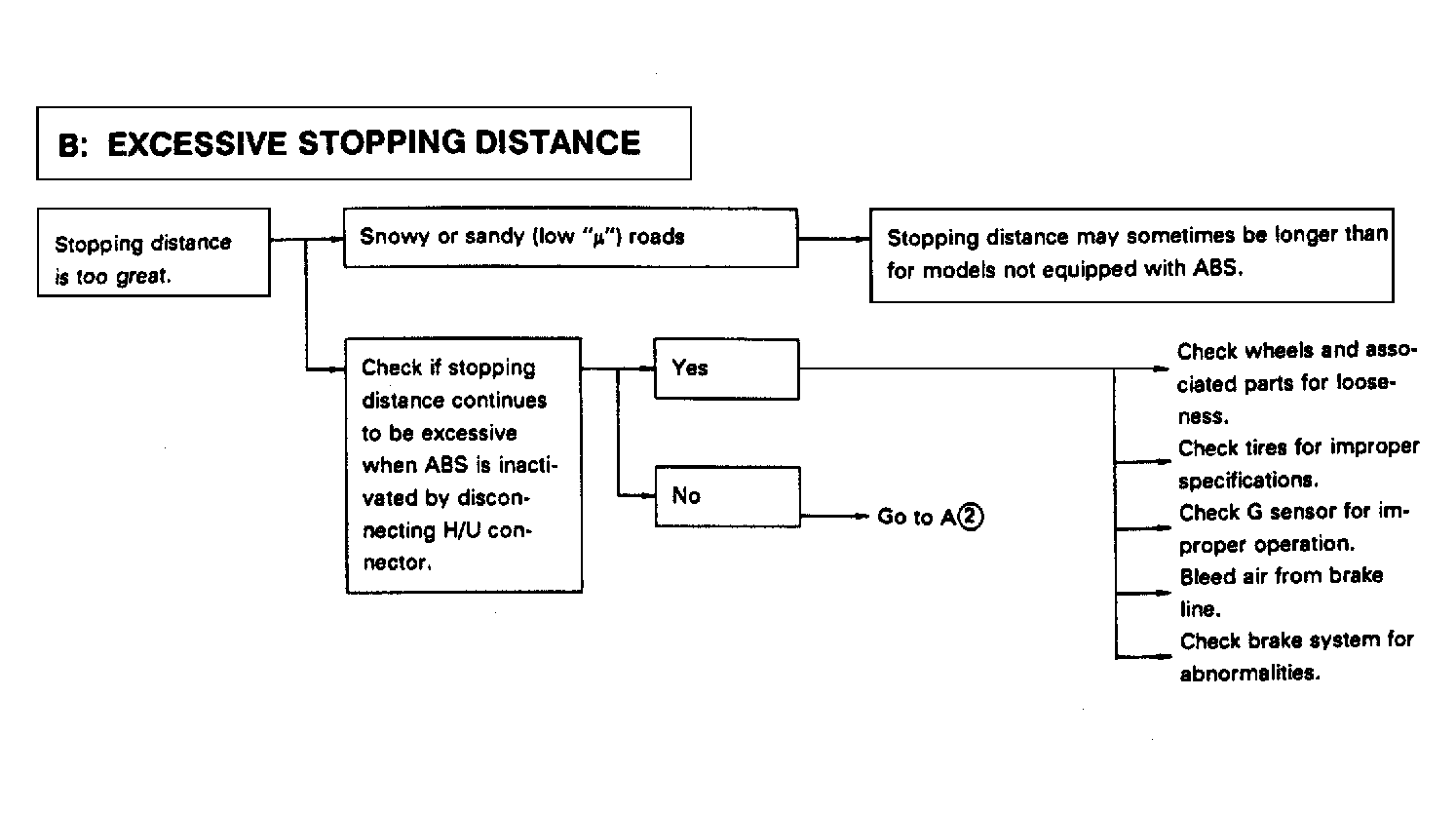

Fig 2: B - Excessive Stopping Distance
Courtesy of SUBARU OF AMERICA, INC.

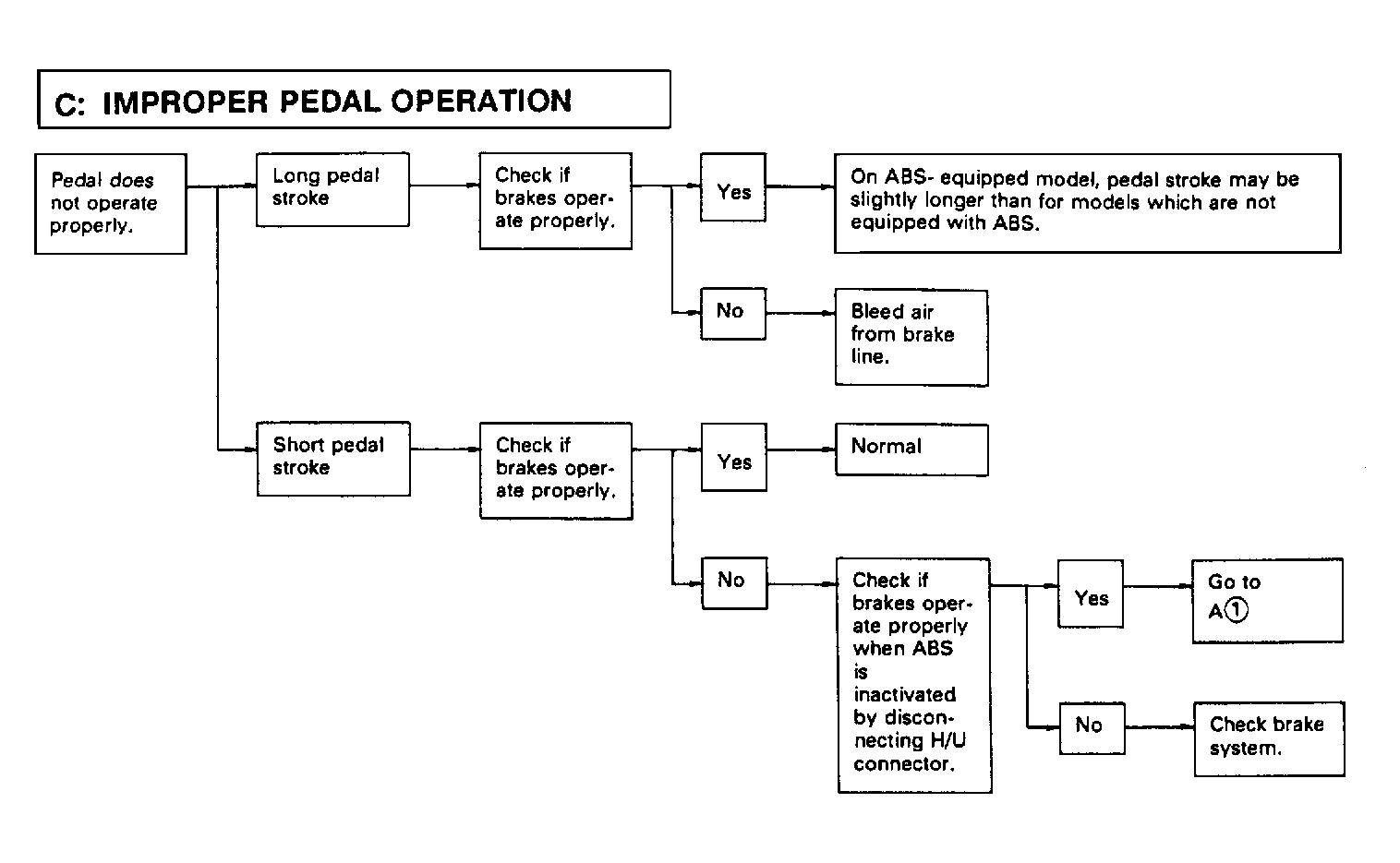

Fig 3: C - Improper Pedal Operation
Courtesy of SUBARU OF AMERICA, INC.
