Engine Controls - Tests W/Codes - CARBURETED
>>
Diagnostic Code Charts
>>
Code 63: Idle Up (Fan Motor Switch)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Code 63: Idle Up (Fan Motor Switch)
Fig 1: Wiring Schematic - Code 63: Idle Up System
Courtesy of SUBARU OF AMERICA, INC.

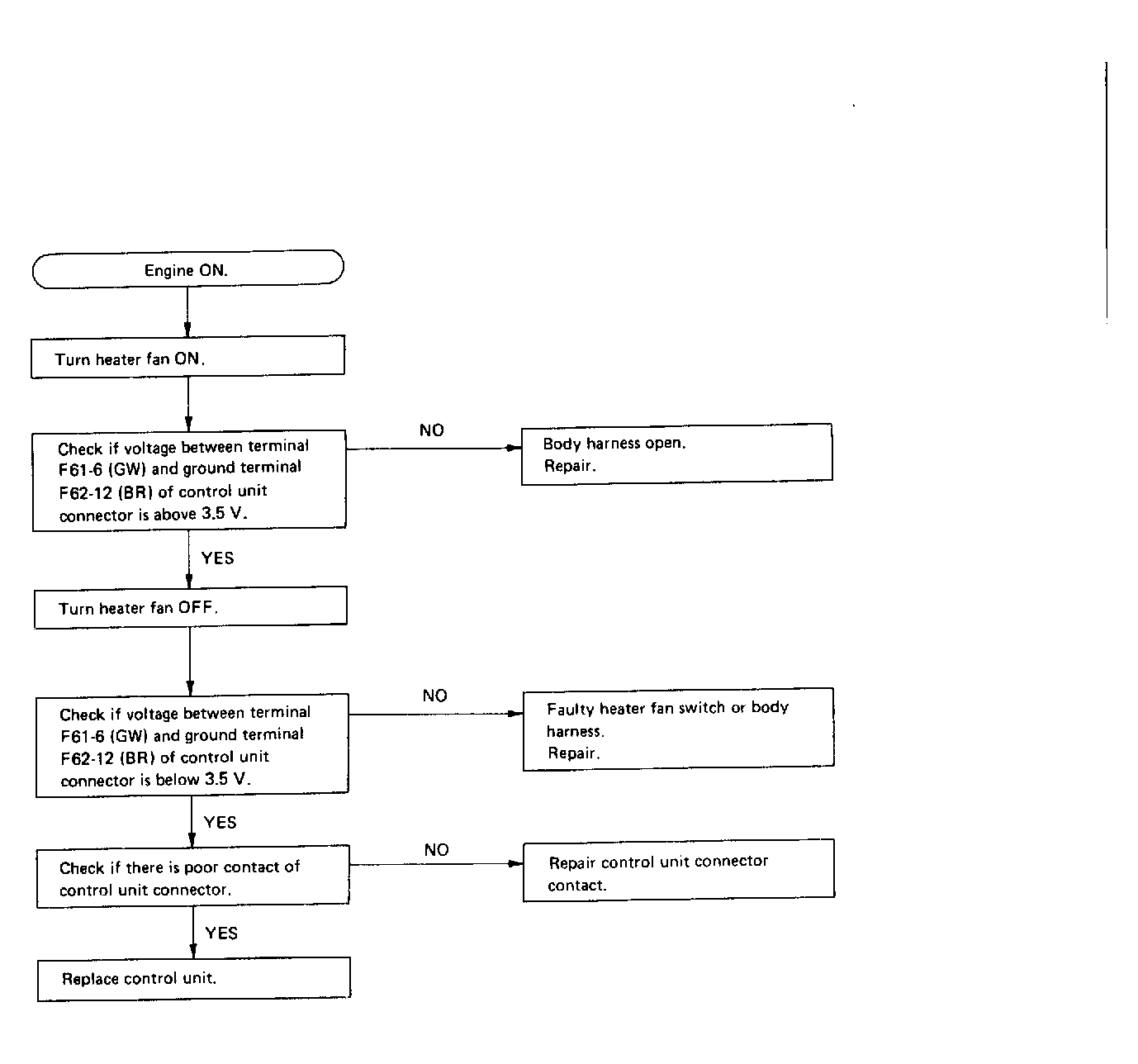

Fig 2: Flow Chart - Code 63: Idle Up System
Courtesy of SUBARU OF AMERICA, INC.
