Trouble Shooting For Engine Starting Failure
>>
Trouble Code 24, Bypass Air Control Valve (XT Model)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Trouble Code 24, Bypass Air Control Valve (XT Model)

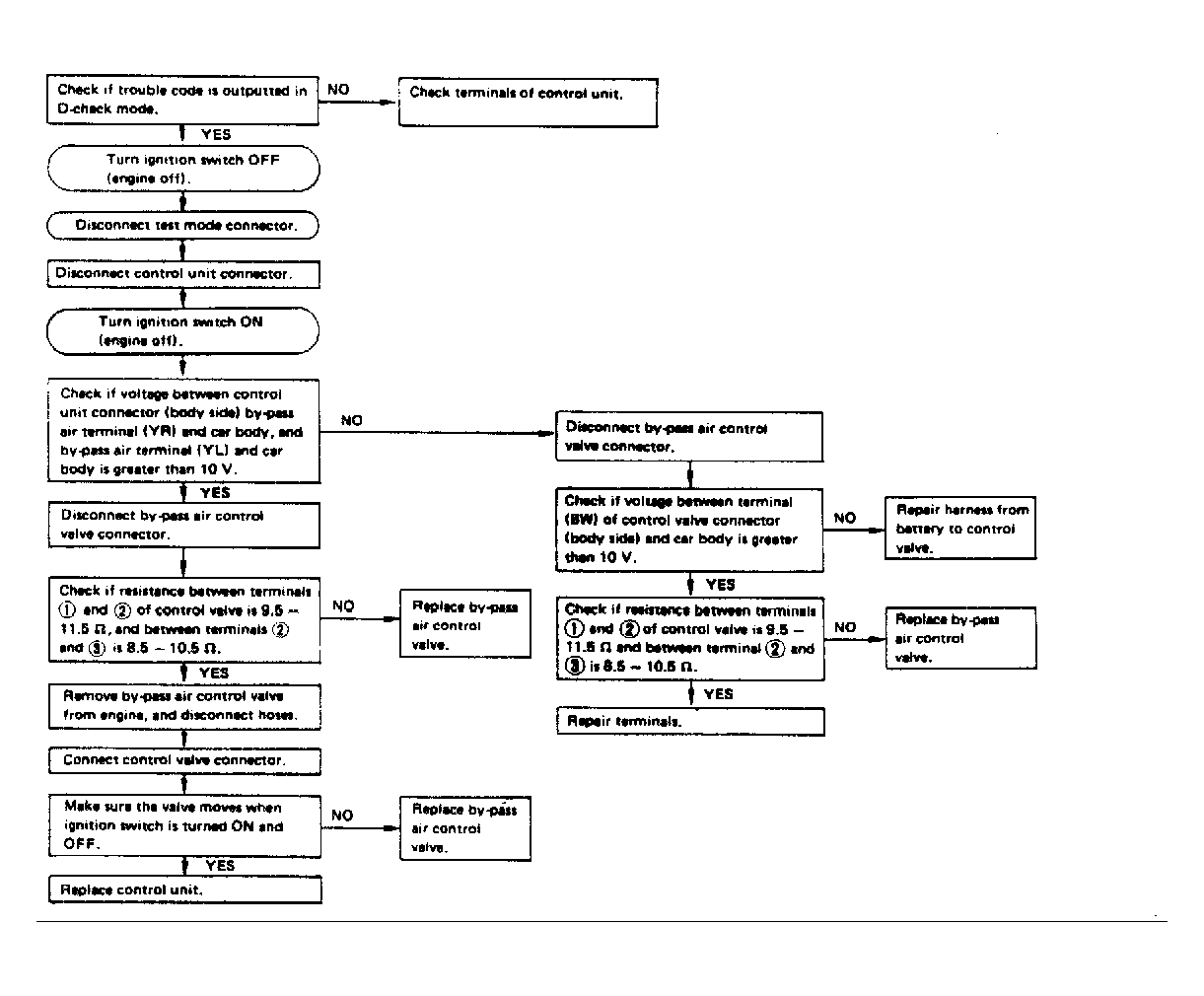

Fig 1: Trouble Code 24, Bypass Air Control Valve (XT Model)
