Circuit Inspection

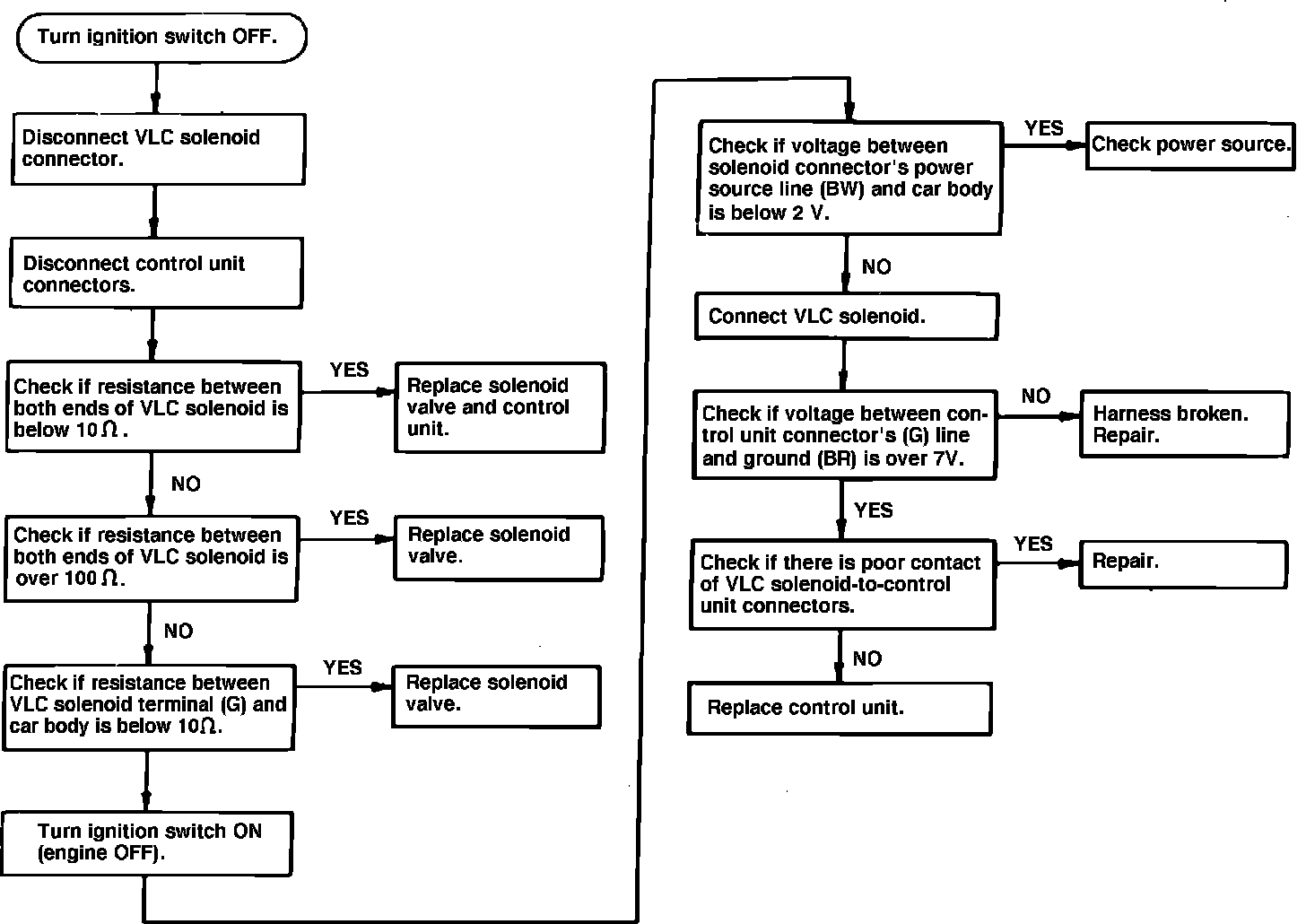

Fig. 46 Electronically controlled carburetor diagnostic chart. VLC solenoid valve (trouble code 22).:

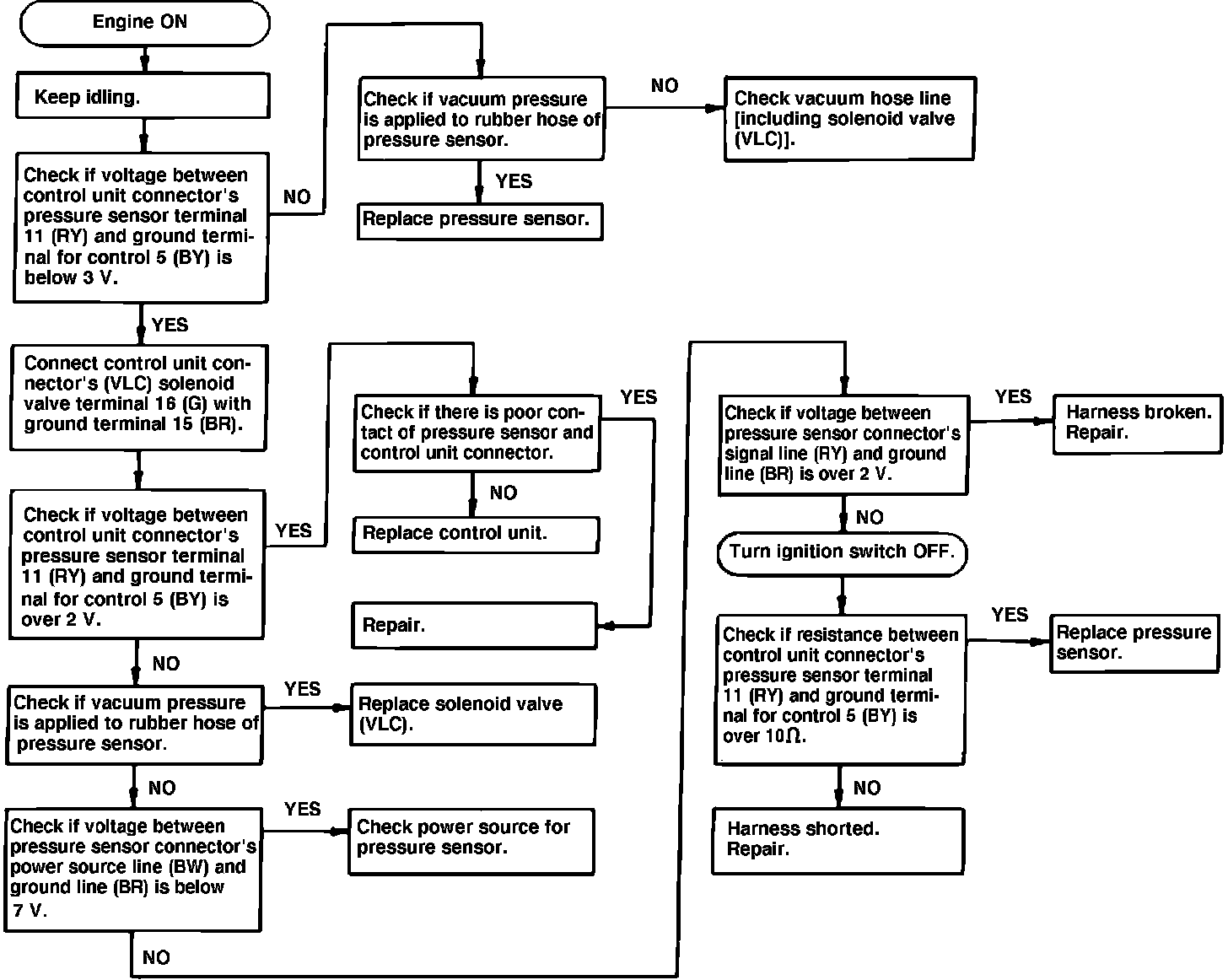

Fig. 47 Electronically controlled carburetor diagnostic chart. Pressure sensor (trouble code 23).:
