Vehicle Speed Sensor: Testing and Inspection

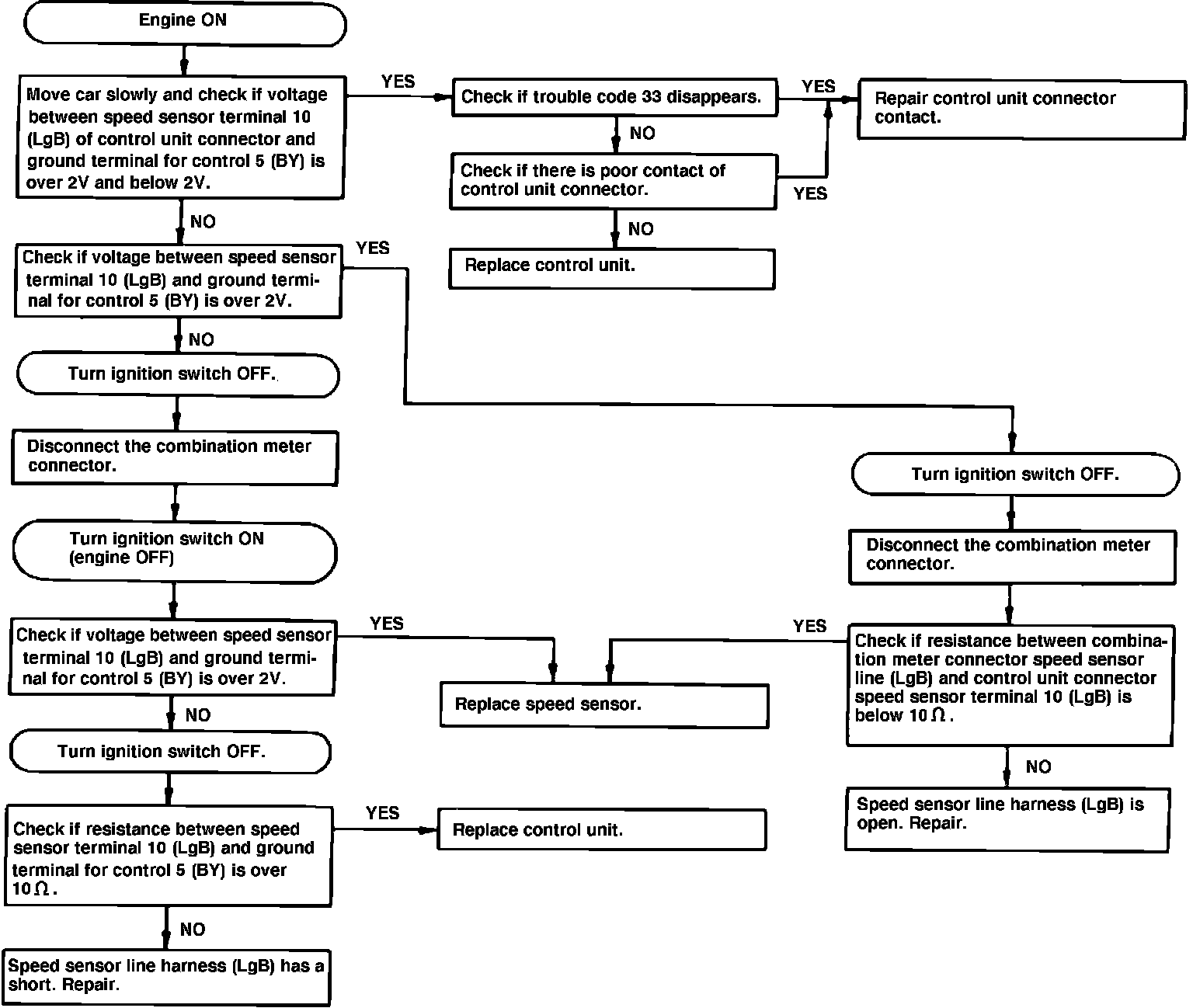

Fig. 51 Electronically controlled carburetor diagnostic chart. Car speed sensor (trouble code 33).:
