Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

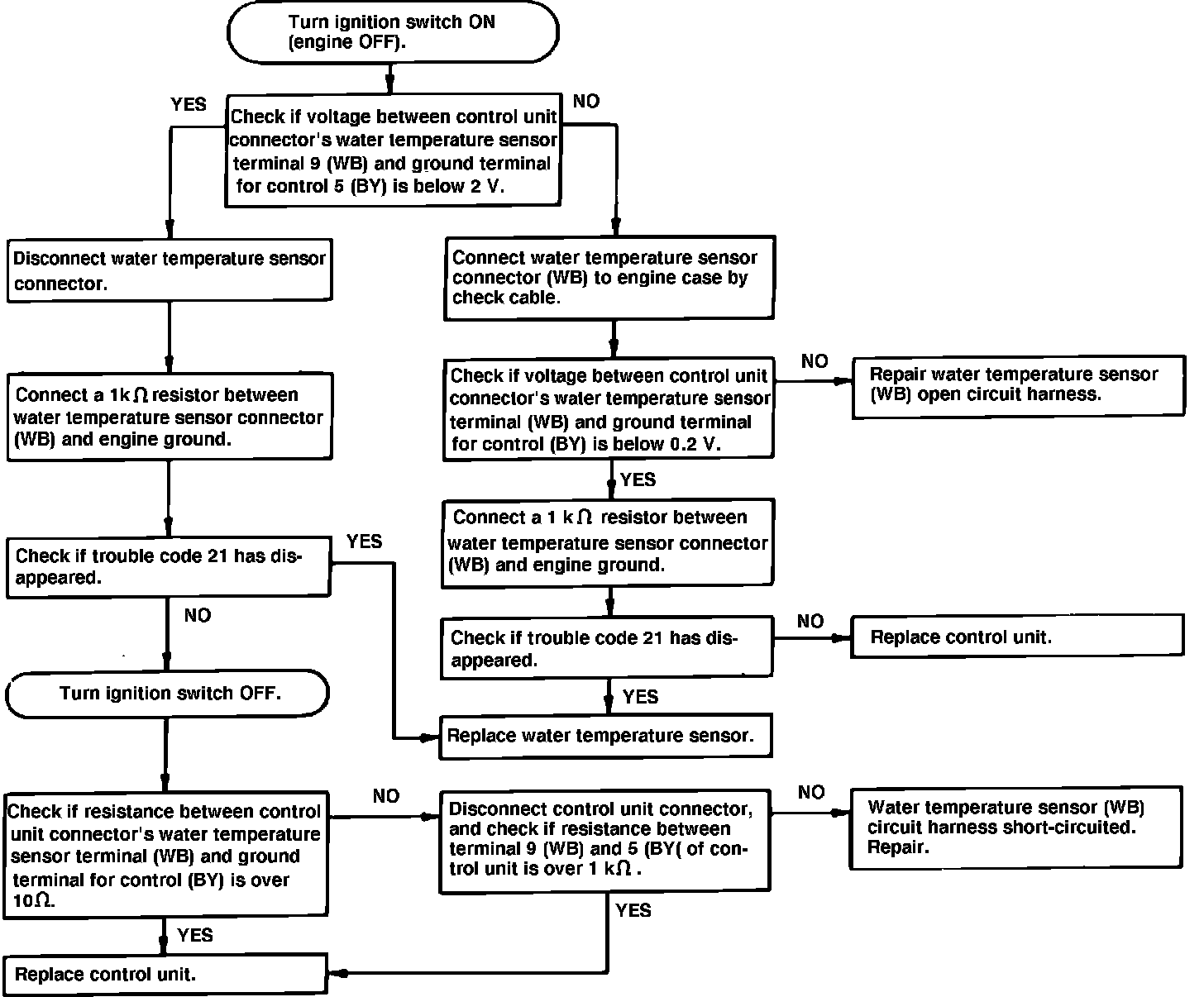

Fig. 45 Electronically controlled carburetor diagnostic chart. Water temperature sensor (trouble code 21).:
