Body and Frame: Locations

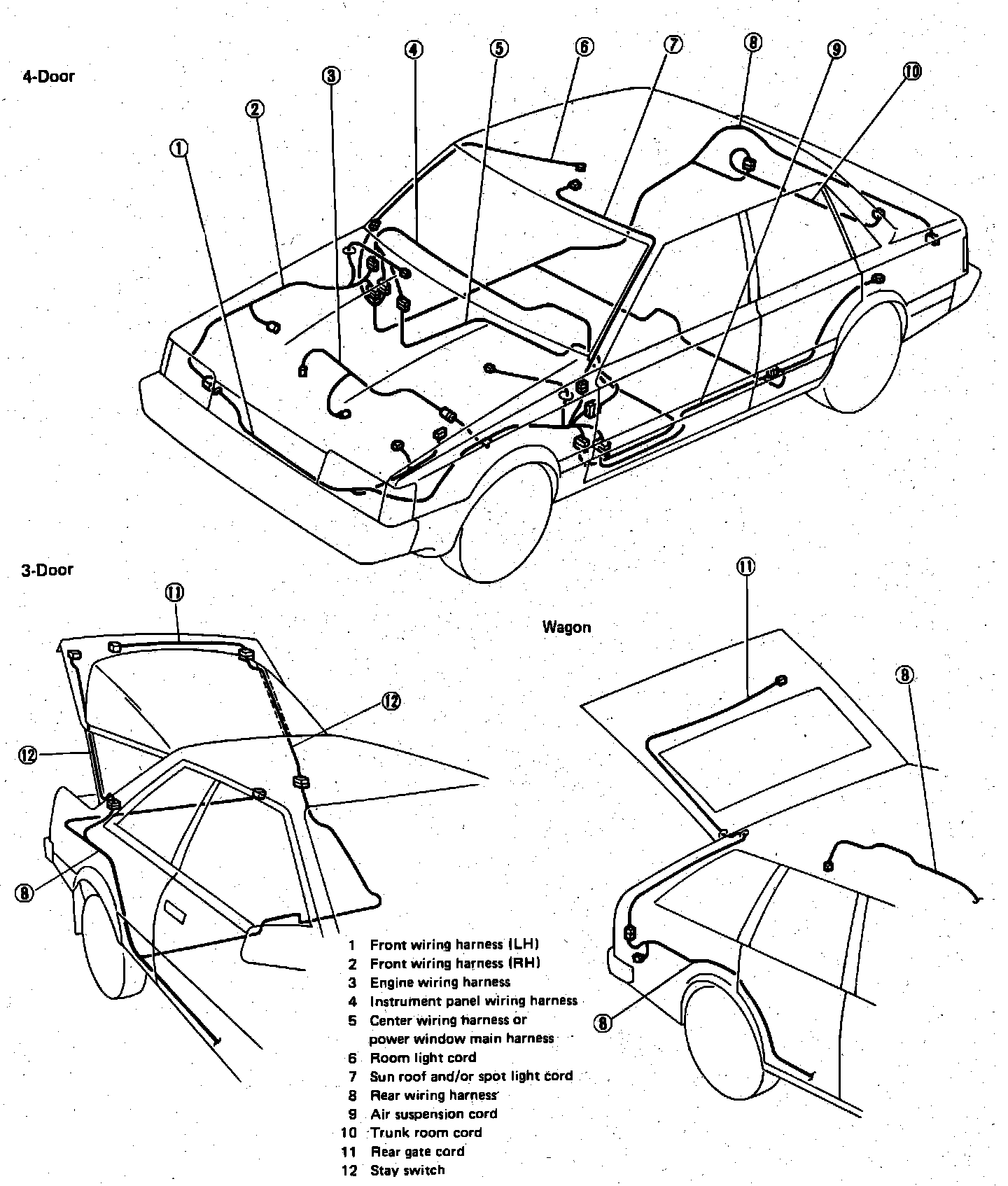

Body Wiring Harness.:

Vehicle Body

Applicable to: 1985-86 Except Brat & XT
