Initial Trouble Shooting Code Charts

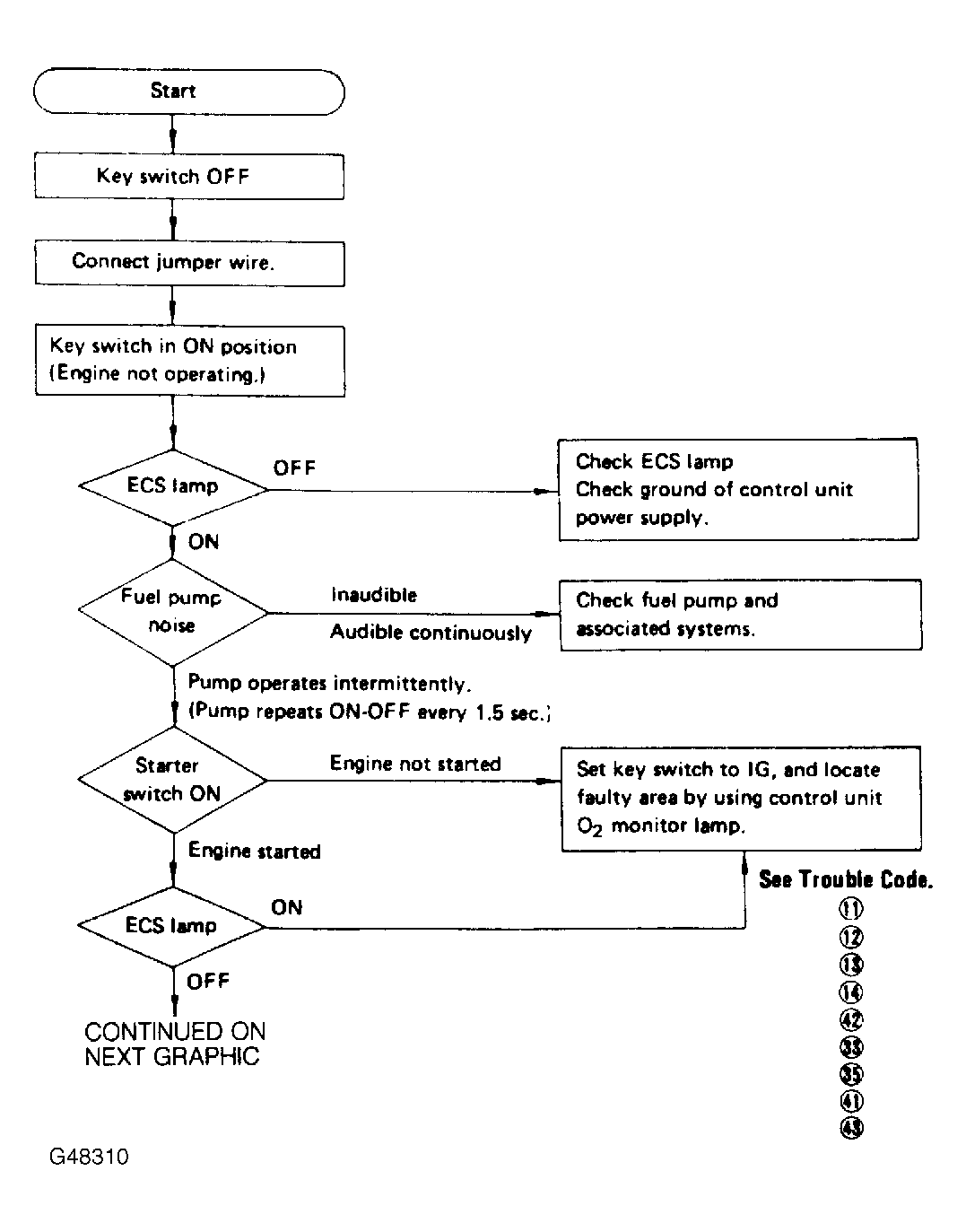

Fig 1: Initial Trouble Shooting Code Charts (Part 1 of 2)
G48310

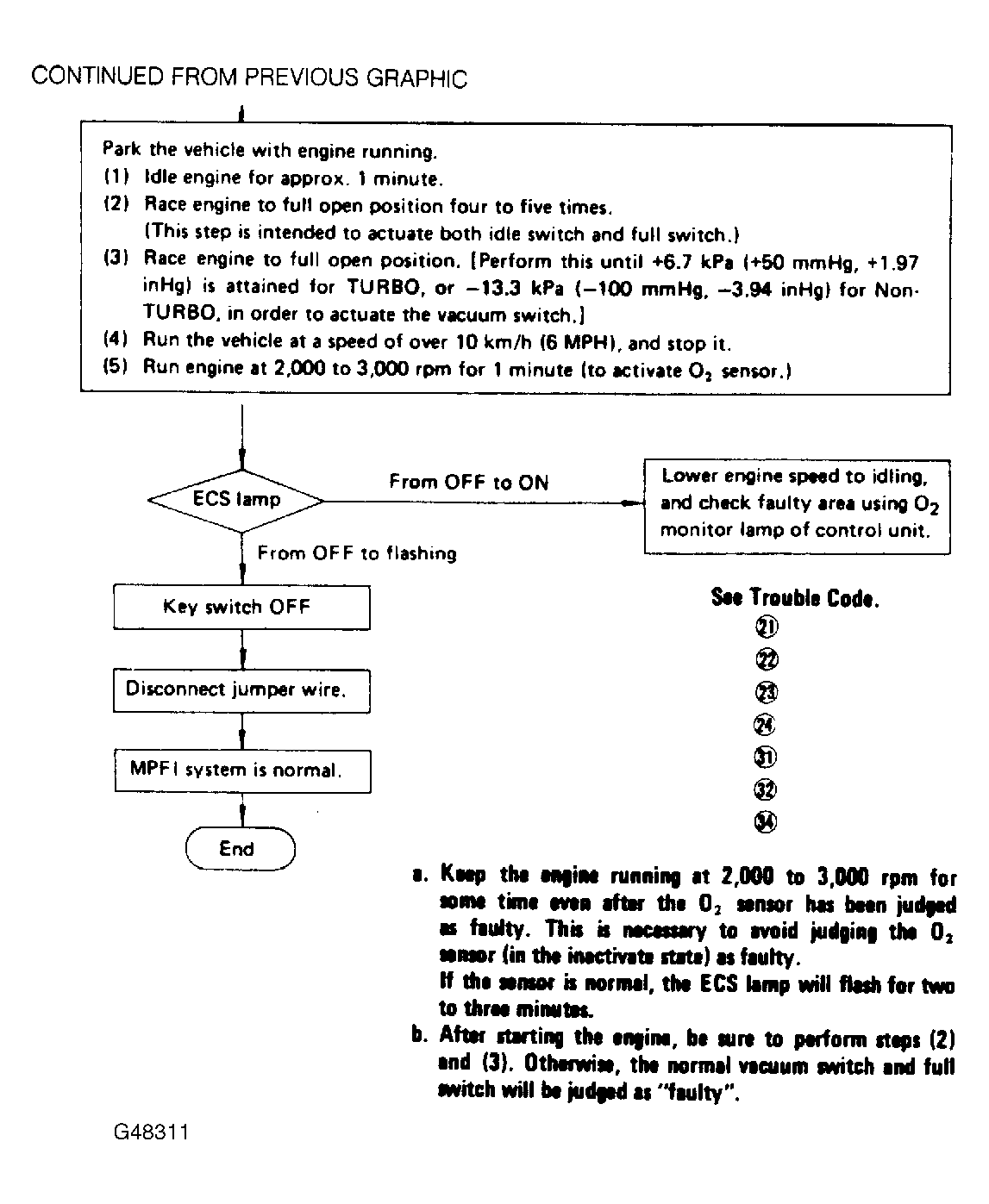

Fig 2: Initial Trouble Shooting Code Charts (Part 2 of 2)
G48311
