5-SPD M/T

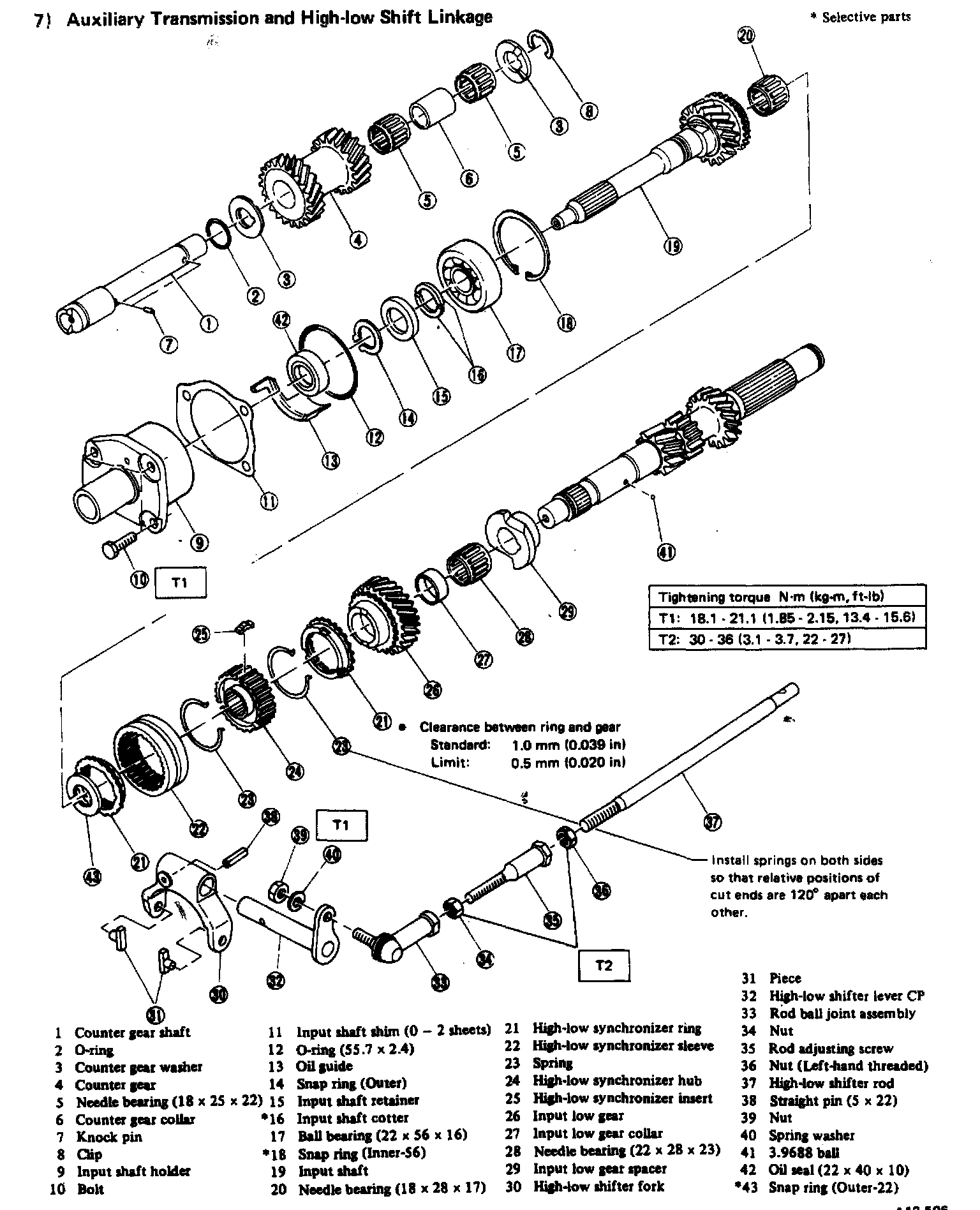

4/5 Spd M/T, Auxiliary Transmission And High-low Shift Linkage:

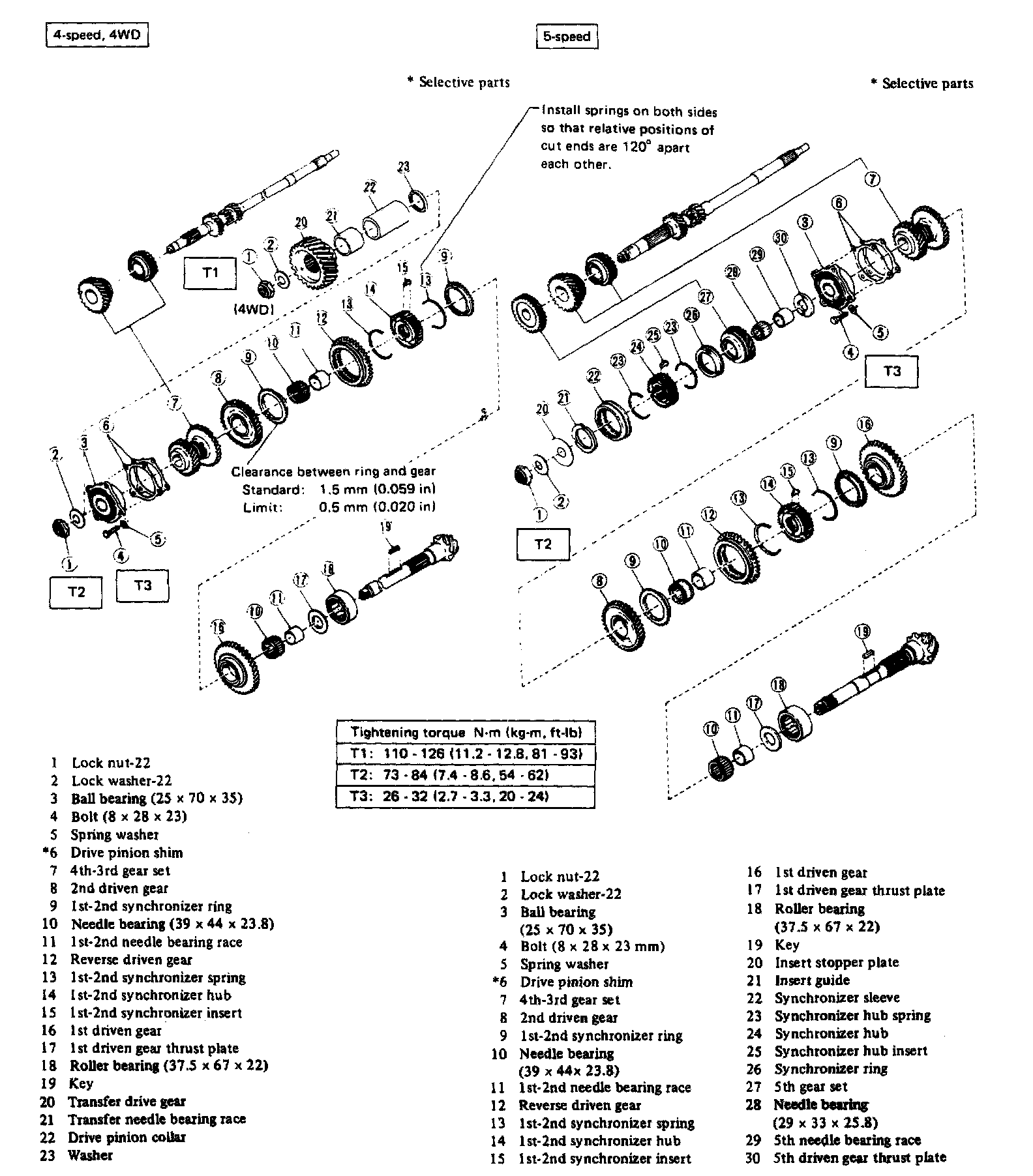

4/5 Spd M/T, Drive Pinion:

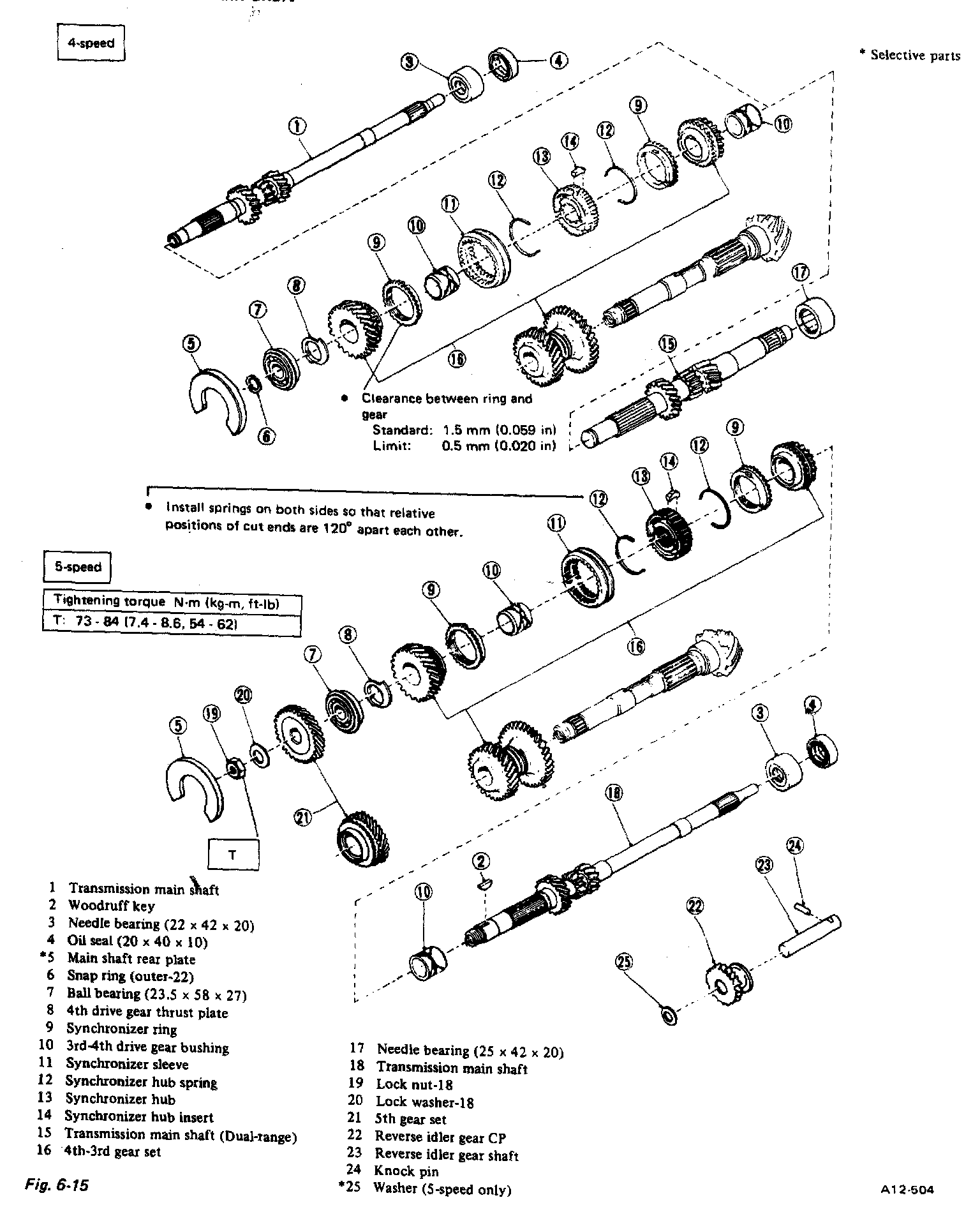

4/5 Spd M/T, Transmission Main Shaft:

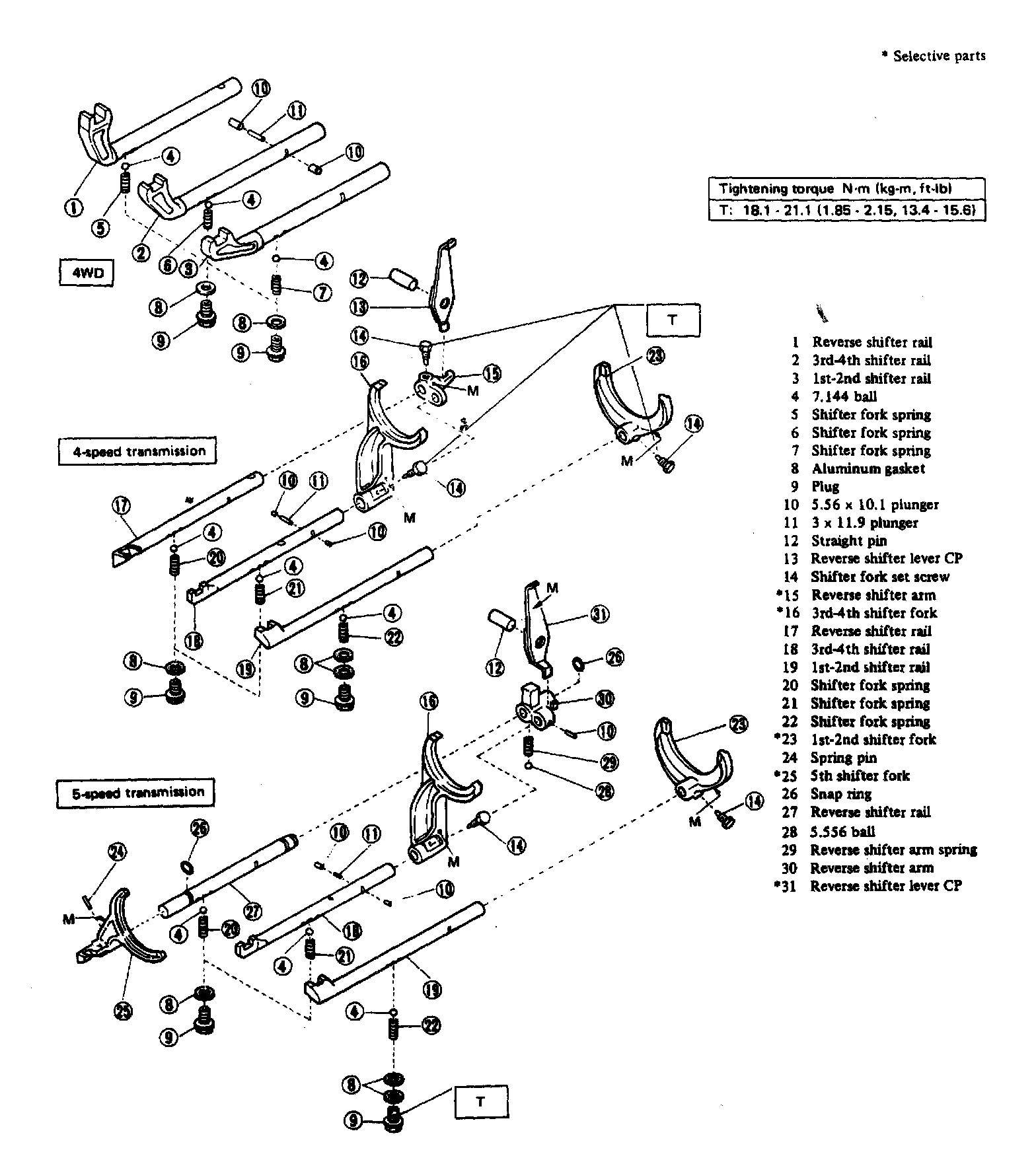

4/5 Spd M/T, Shifter Fork And Shifter Rail:

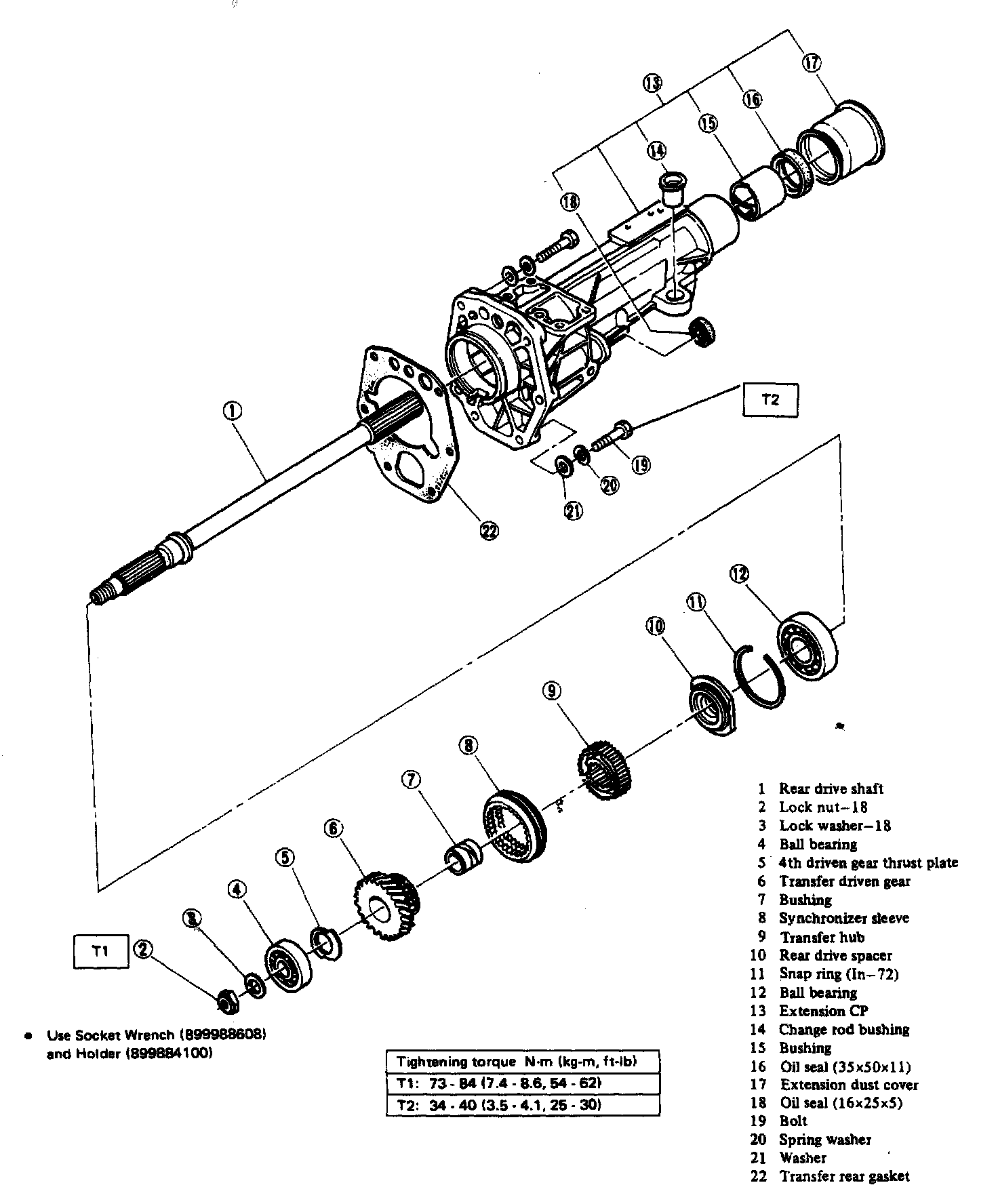

4/5 Spd M/T, Transmission Extension:

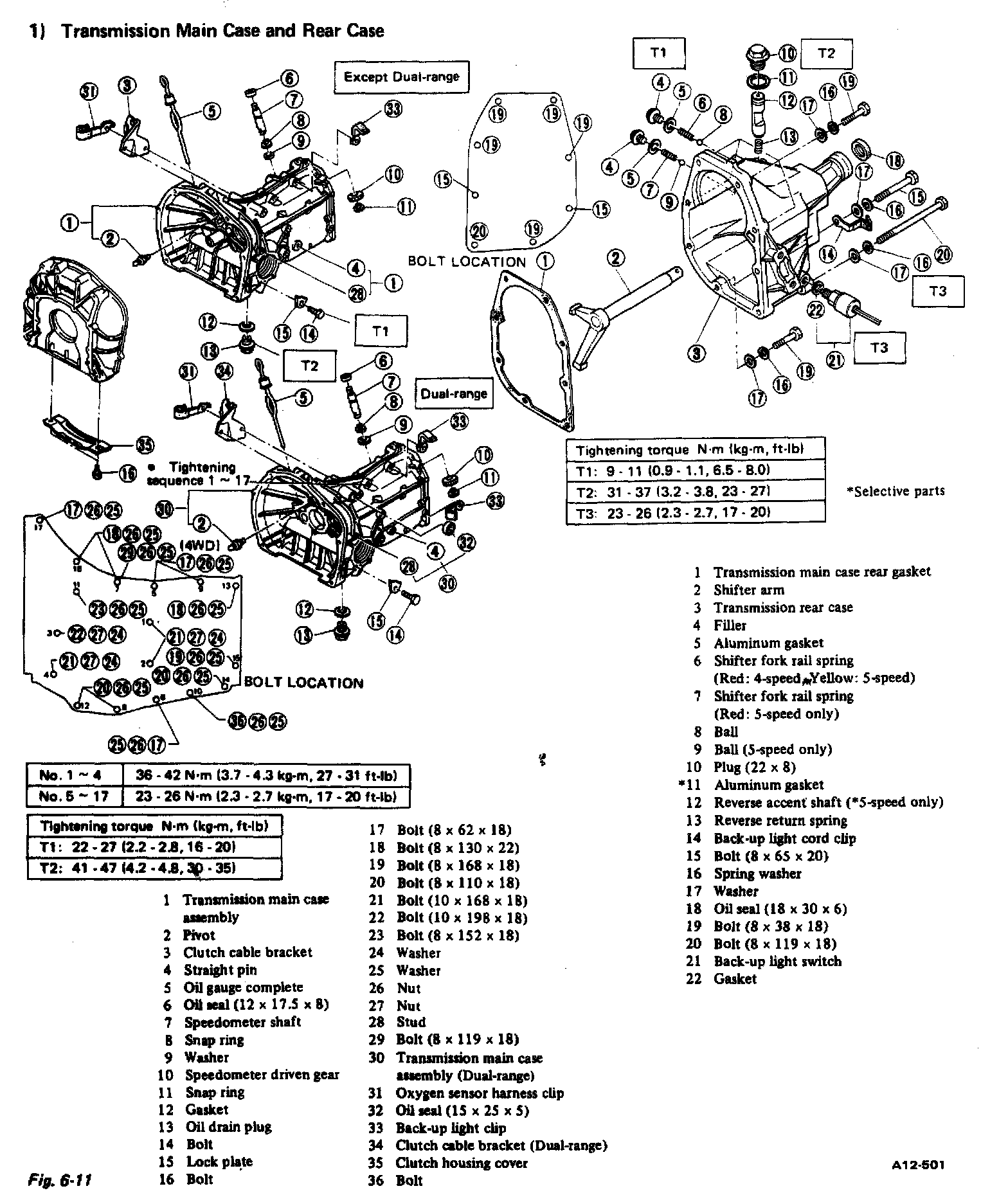

4/5 Spd M/T, Transmission Main Case And Rear Case (Dual-range Or Not):
