4-SPD M/T

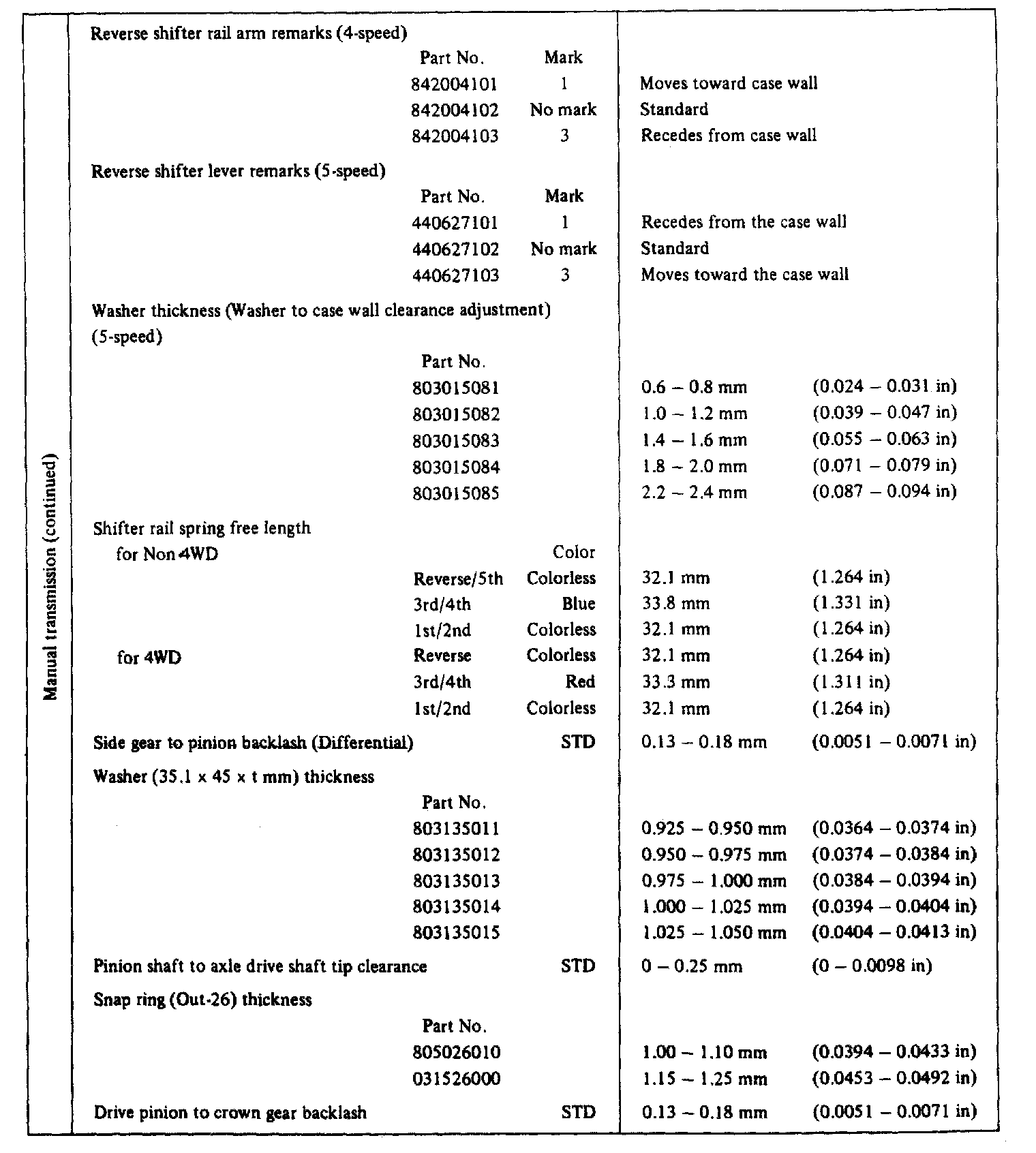

4/5 Spd M/T, Transmission Service Data:

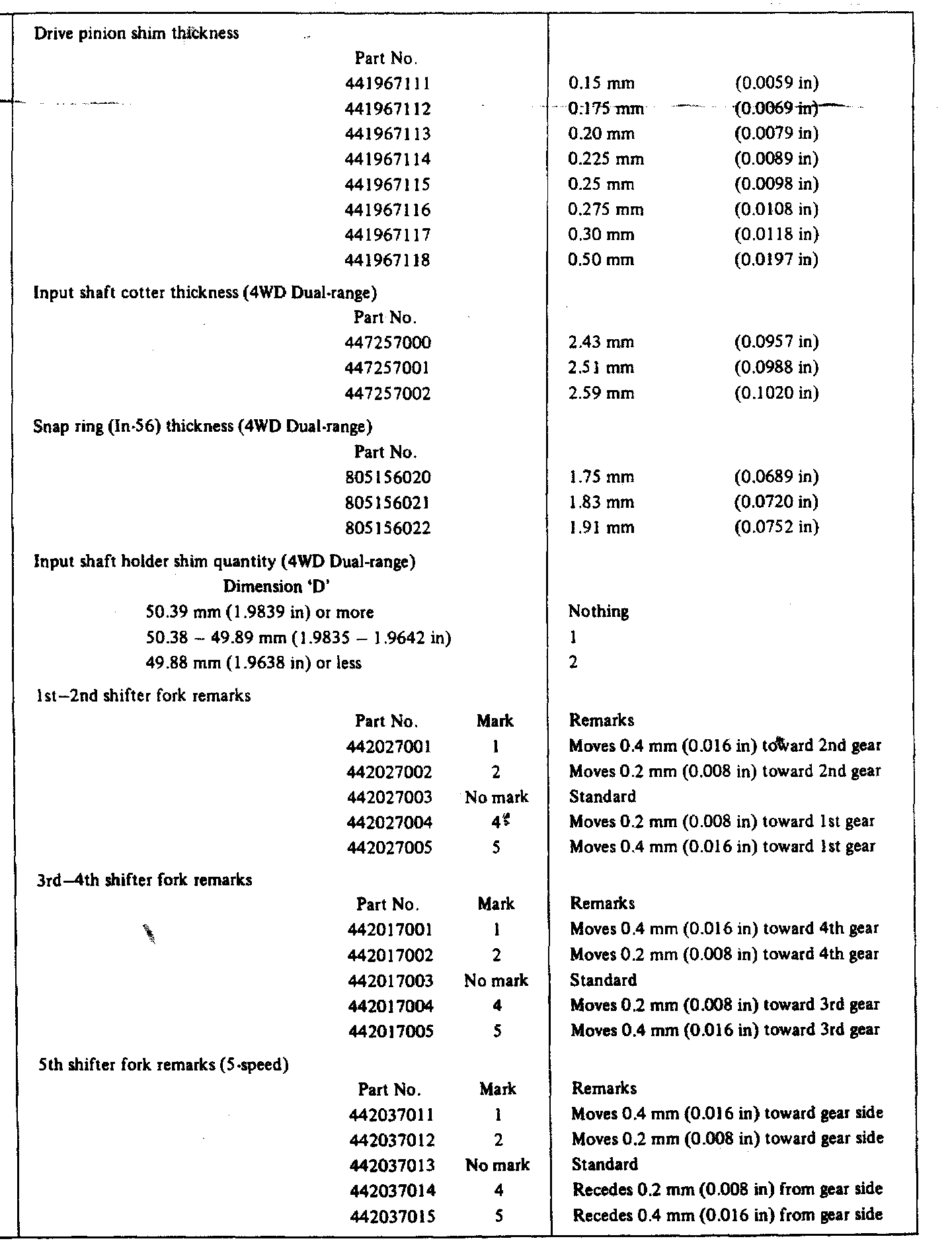

4/5 Spd M/T, Clutch & Transmission Clearances/Tolerances:

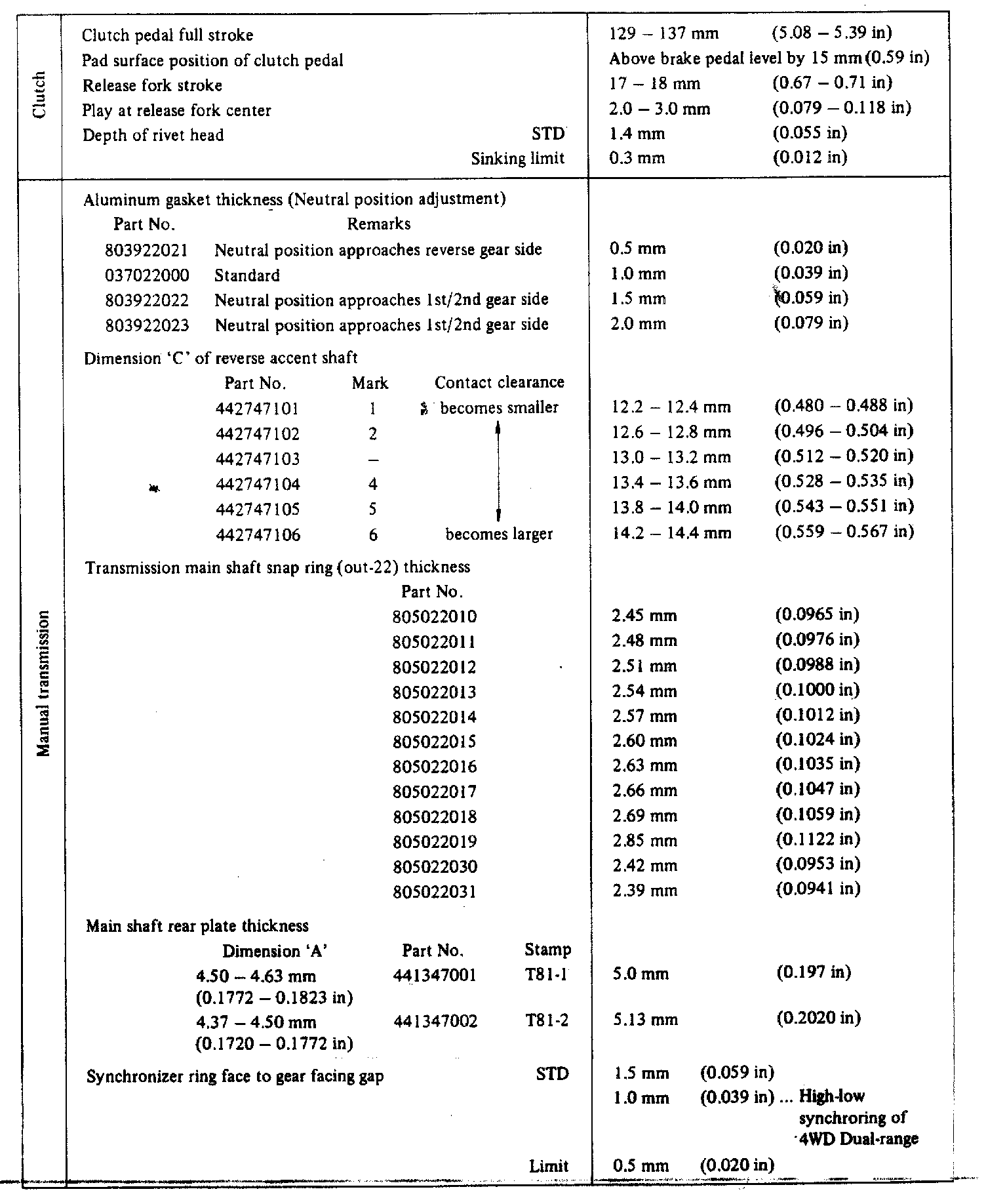

4/5 Spd M/T, Transmission Thickness & Remarks:

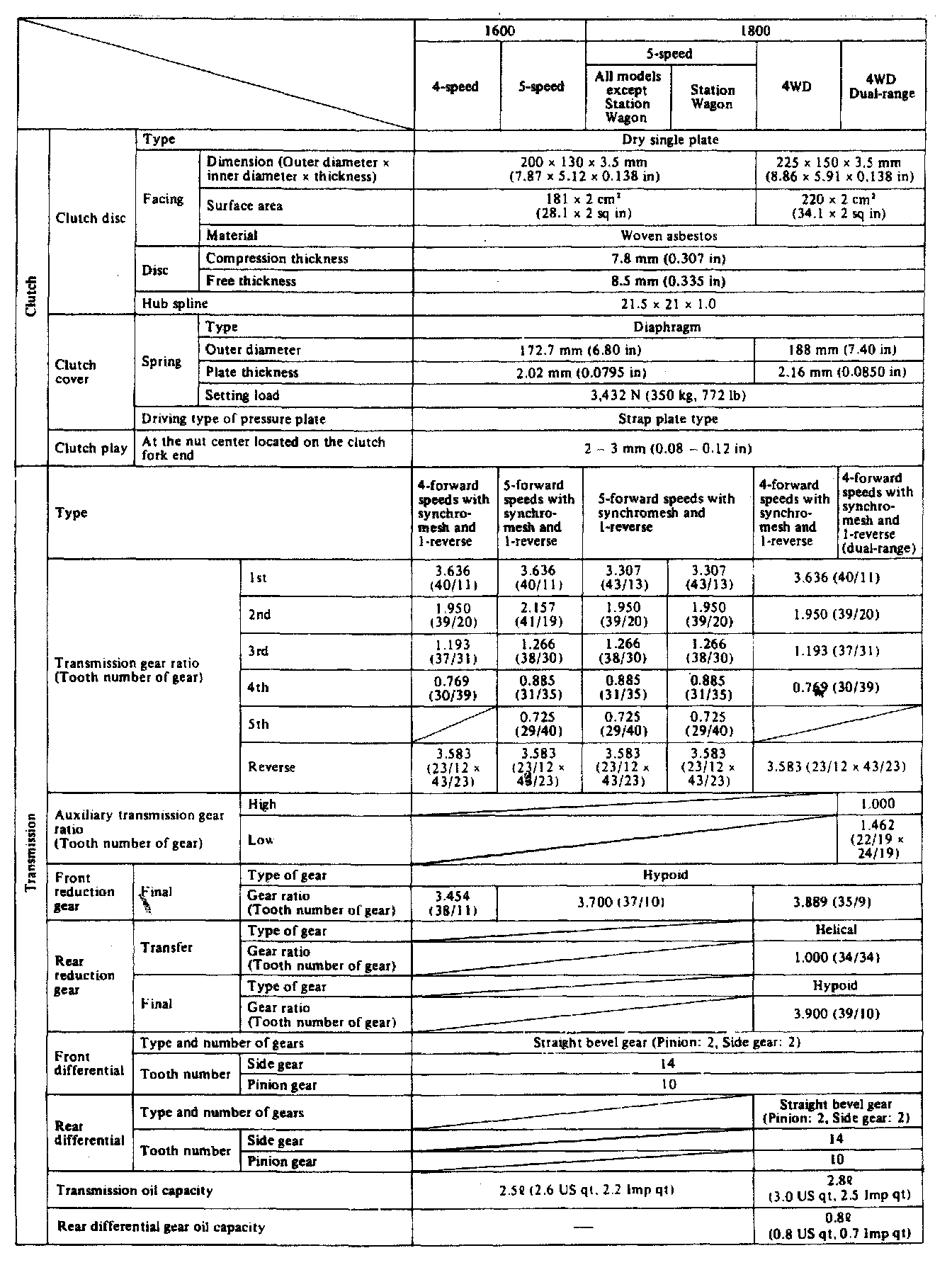

4/5 Spd M/T, Transmission Service Data:
